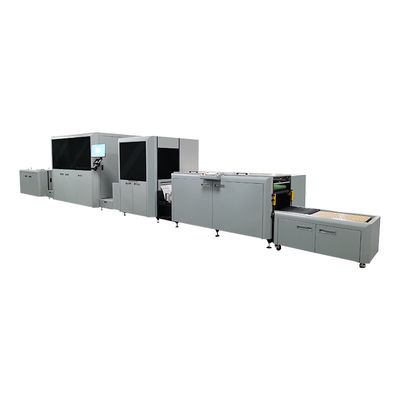

Monochrome Dual Color Full Color Rotary Inkjet Web Press For Books

Basic Information
Place of Origin: CHINA
Brand Name: YINTECH
Certification: NA
Model Number: DPM440C
Minimum Order Quantity: 1
Price: $200,000-$600,000
Packaging Details: Standard export packaging
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 20 sets per month
Printing Style: CMKY Duplex Resolution: 1200*1200DPI
Ink Type: Water Based Pigment Ink Max Media Width: 440mm
Max Printing Width: 432mm Media Thickness: 45 -165gsm
Media Type: Digital Printing Paper, Inkjet Coating Paper, Newsprint, Wall Paper
High Light:

Rotary Inkjet Web Press

,

Monochrome Inkjet Web Press

,

Full Color Inkjet Digital Press

Product Introduction

Yintech DPM series is a high-capacity, cost-effective rotary inkjet digital printing equipment, which is latest R&D achievement of continuous research, continuous experimentation, and teamwork in the inkjet digital printing field.
Yintech DPM series is equipped with 1200*1200dpi industrial-grade piezoelectric nozzles with core inkjet control technology, can print duplex mino-color/dual-color/full color. Its printing quality is as good as that of offset printing, printing speed is up to 150 meters per minute, thereby meeting various printing needs.
Water based pigment ink is self-developed and produced, which can support a wide range of printing media and provide more feasible printing solutions for customers.

Specification

Model DPM440C/DPM560C/DPM660C
Printing style CMYK duplex
Resolution 1200×1200DPI
Ink type Water based pigment ink
Water based pigment ink 150m/min
Front-back registration ±0.1 mm
Inkjet head Drop-on-Demand piezoelectric nozzle
Drying Infrared drying ( full automatic adjustment on printing speed )
Operation interface Visual operation interface
Max. media width 440 mm/560mm/660mm
Max. printing width 432 mm/540mm/648mm
Media thickness 45-165g/㎡
Media type digital printing paper, inkjet coating paper, newsprint, wall paper, etc.
Max. roll diameter 1.27 m
Mechanical platform Max. 35 KW
Infrared drying Max. 40KW
Digital control system Max. 8 KW
Temperature Range 22.5-27.5℃ Best working temperature 25℃
Humidity Range 40-70% Best working temperature 50-60%RH
Size 11000*3500*2200 mm
Weight 9500 KG

CORE TECHNOLOGY ADVANTAGES

1. High Quality

1.1 High-precision nozzles splicing technology has been developed for many years, which makes multiple nozzles splicing more simple and faster, so that printing pattern can achieve truly seamless connection.

1.2 Piezoelectric high-speed industrial nozzles obtains faster and better printing quality.

1.4 Multi-bit deep network technology with own intellectual property rights enables printing quality to reach 1200dpi, printing quality is as good as that of offset printing.

1.3 Unique nozzle driving technology makes sure each nozzle can work in high performance, so that the outer edge of printing text and strokes are very round and smooth, therefore eliminating scattered inkjet dots and burrs very well.

2. High Stability

2.1 Excellent design and high precision assembly technology have created a high quality paper conveying platform, which makes high-speed paper feeding more stable and motion control more precise, thus ensuring high quality printing.

2.2 Software and hardware system design with completely independent intellectual property rights, high integration.

2.3 Self-developed ink supply system can ensure production stability.

2.4 Advanced tension control system can control paper feeding force at the printing position with high precision, therefore ensuring printing stability.

3. High Capacity

3.1 With self-designed buffer structure, it can perfectly match cutting equipment.

3.2 Advanced typesetting technology can make prepress typesetting more convenient and faster.

3.3 High speed piezoelectric industrial nozzles are used, ignition frequency is up to 50khz, which can obtain high quality high printing speed 150 meters per minute.

4. Cost Effective

4.1 Stable high production capacity, extremely low rejection rate.

4.2 Advanced intelligent ink distribution system greatly reduces ink consumption while printing high quality products.

4.3 The digital printing equipment has a longer lifetime, outperforming traditional printing equipment, and a lower maintenance cost.

4.4 Self-developed brand "FU CAI" series ink can highly match Print-On-Demand printing, and cost effective. The printing product is colorful, strong contrast, compatible with a variety of papers, durable, and no fading.
