Commercial 2400DPI Thermal plate making machine With 128 Channels Lasers

Basic Information
Place of Origin: China
Brand Name: Yinber
Certification: ISO9001~2000
Model Number: 14128
Minimum Order Quantity: 1 set
Price: $53000~58000 per set
Packaging Details: Export Wooden Case for sea shipping well support the forklift, 5.0 CBM/set , 6 sets /20 GP.
Delivery Time: 20-30 days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 300 sets per Year
Rip/workflow Software: Harlequin / Prinergy Laser Source Type: Thermal / 830nm
Condition: Brand New Type: Plate Making Machine
Resolution: 2400DPI (can Be Customized)
High Light:

Commercial Thermal Plate Making Machine

,

2400DPI Thermal Plate Making Machine

,

128 Channels Lasers Thermal CTP Machine

Commercial 2400DPI Thermal Plate Making Machine With 128 Channels Lasers



Commercial Thermal CTP Machine 128-Channels Lasers Yinber14128 With 27 Throughput/H 2400DPI



Large Format CTP/Thermal CTP plate making machine

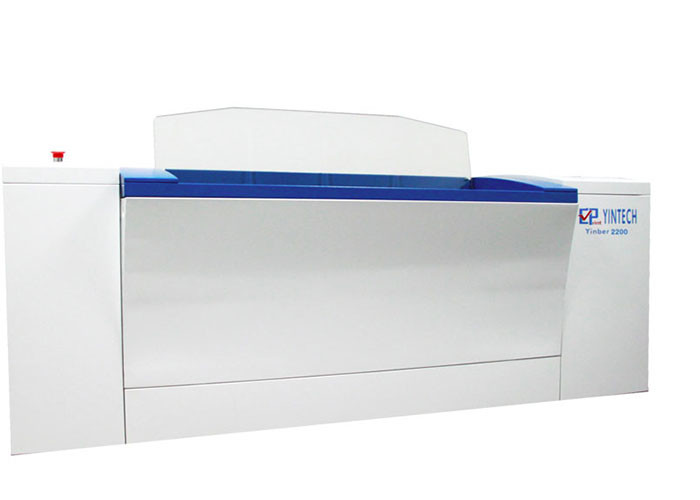

Commercial 2400DPI Thermal plate making machine With 128 Channels Lasers 0
Technical specification
Model 14128
No. of Lasers 128
Throughput (1130x800mm)
(plates/hour)
27 PPH
Max./Min. Format Max.: 1180mmx1460mm Min.: 508mmx394mm
Laser Source 830 nm
Resolution 2400 dpi
Loading System Manual loading, auto unloading
Plates Requirement  0.15-0.4mm, Thermal plates, no brand requirement
CTP Interface 1-bit Tiff interface and direct workflow driver, support CIP3/CIP4
Power AC220V,50-60Hz 6.9KW
Environment Temperature: 20-25ºC Humidity: 40%-80%
Size & Weight Size: 2670mmx1210mmx1730mm Weight: 1235kg
Workflow software RIP Harlequin & Workflow Prinergy



Why choose us?

Core Technology Advantages:



1.The marble stone working platform ensures that the machine still keeps high precision and high stability under the condition of long working time.

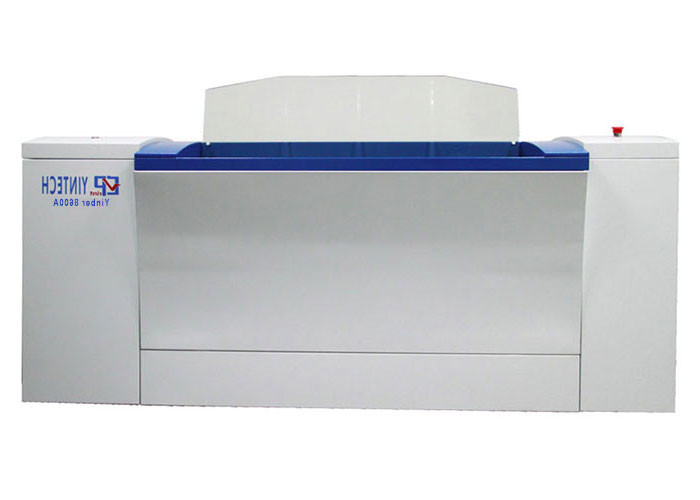

Commercial 2400DPI Thermal plate making machine With 128 Channels Lasers 1



2. The automatic balance of laser energy technology ensures the consistency of laser spot size, and ensures the uniformity, firmness and delicacy of output dots.

Commercial 2400DPI Thermal plate making machine With 128 Channels Lasers 2



3.Laser diodes are arranged independently and each laser diodes can be upgraded, replaced and maintained one by one after.

Commercial 2400DPI Thermal plate making machine With 128 Channels Lasers 3



4. Advanced auto-focus system is adopted, which is suitable for different thickness plates and different brand plates.

Commercial 2400DPI Thermal plate making machine With 128 Channels Lasers 4



5.Abandoning the traditional lead-screw mode, we adopt the advanced maglev motion control system ensures the accuracy and service life of the machine.

Commercial 2400DPI Thermal plate making machine With 128 Channels Lasers 5



6.Non-linear Calibration technology ensures the accuracy of the plate making.

Commercial 2400DPI Thermal plate making machine With 128 Channels Lasers 6



7. Adopted high power imprted laser from Japan and America, so the laser life is longer than others. Unlike most manufacturers use 1W diodes for CTP machines and 70mj (200mW) diodes for CTCP machines, we use 2W diodes for CTP machines and 120mj (300mW) for CTCP machines.

Commercial 2400DPI Thermal plate making machine With 128 Channels Lasers 7



8.We use built-in bearing to support our drum, which brings higher stability and more accuracy when the drum rotates in a high speed, without a big deviation.

Commercial 2400DPI Thermal plate making machine With 128 Channels Lasers 8



9. We use top-class components and parts in all our equipment, which brings our products more stable performance and longer life.

Fuji motor from Japan / Thermal diodes from USA / UV diodes from Japan / Naglev system and bearings from Germany / Sensors from Spain.

Commercial 2400DPI Thermal plate making machine With 128 Channels Lasers 9



10.workflow and RIP software - Prinergy & Harlequin

Commercial 2400DPI Thermal plate making machine With 128 Channels Lasers 10



11. "Remote diagnosis system" through "Teamviewer", our technicians can share data with customers' computer in real-time, thus to diagnose their CTP equipment.

Commercial 2400DPI Thermal plate making machine With 128 Channels Lasers 11





Shenzhen Yintech Co.,Ltd is one of top leading CTP flexo plate making machine manufacturer, we produce and supply ctp plate making machine, ctcp plate making machine, and flexo plate making machine, we have professional CTP flexo plate making machine factory,.
