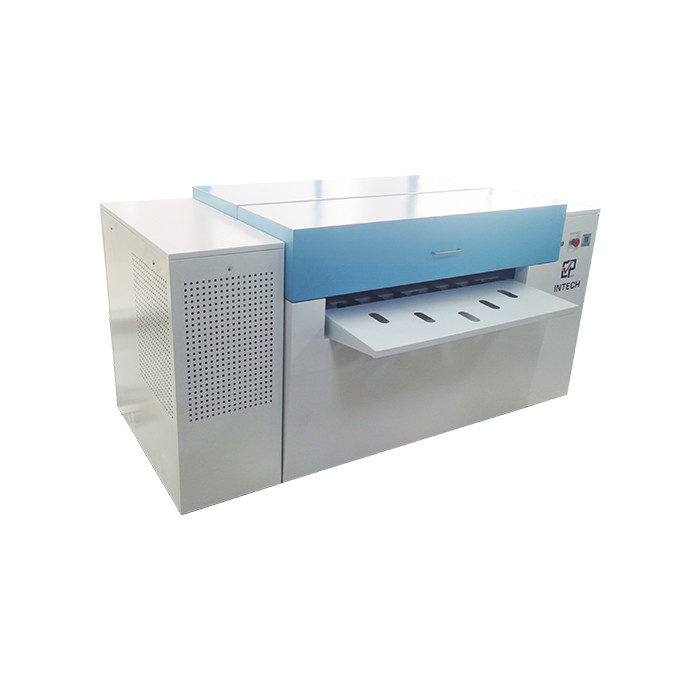

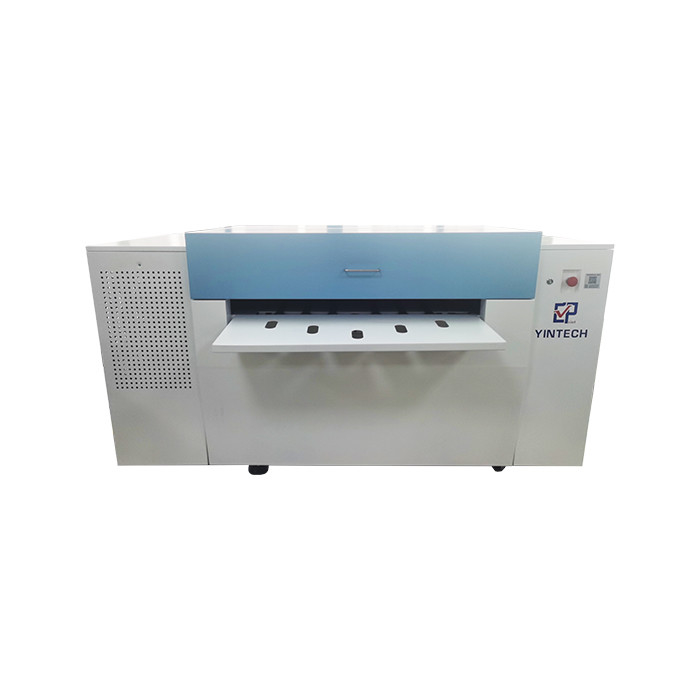

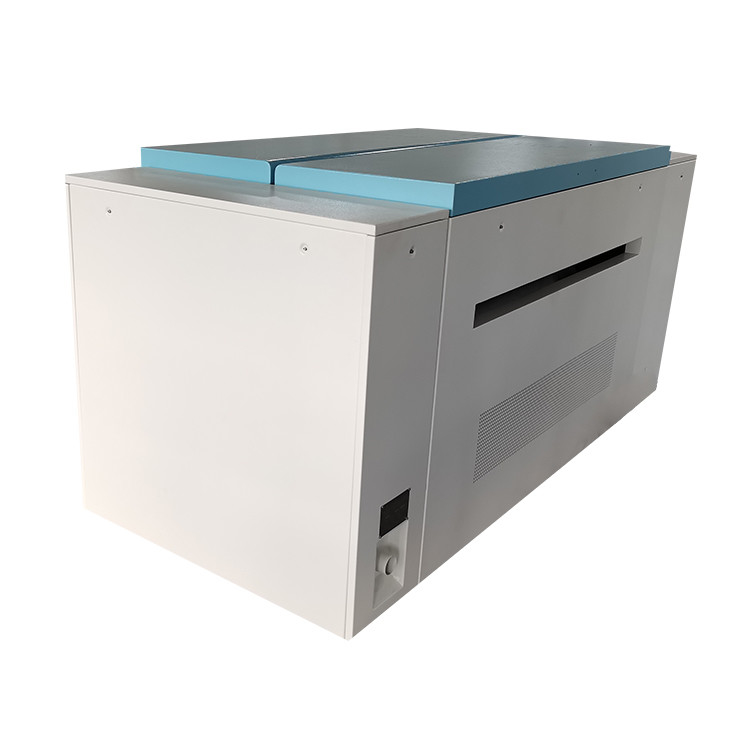

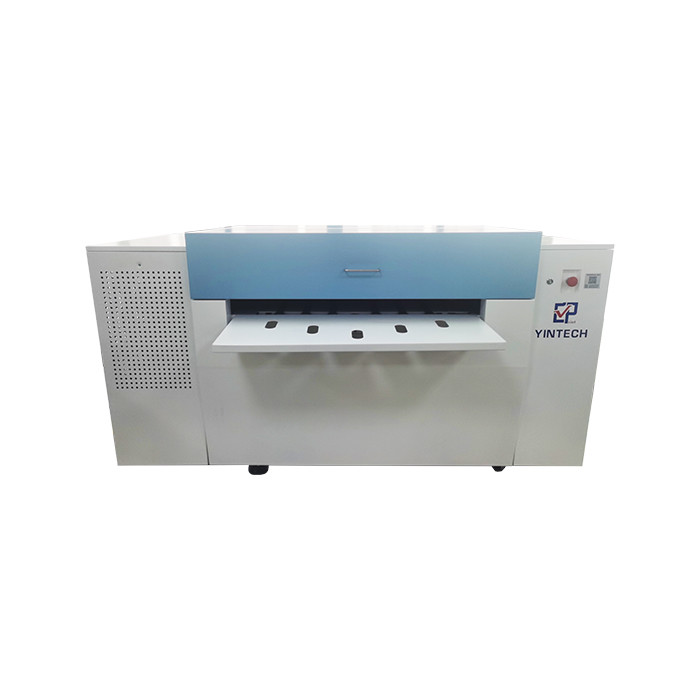

Thermal 830nm Laser PS CTP Plate Making Machine 27 PPH Throughput

Basic Information
Place of Origin: China
Brand Name: Yinber
Certification: ISO9001~2000
Model Number: 8600B
Minimum Order Quantity: 1 set
Price: $32000~45000 per set
Packaging Details: Export Wooden Case for sea shipping
Delivery Time: 20-30 days
Payment Terms: L/C, T/T,Western Union
Supply Ability: 300 sets per Year
Rip/workflow Software: Harlequin /prinergy Loading System: Semi-auto/automatic
Driver Support: 1-bit Tiff Interface And Direct Workflow Driver,support Cip3/cip4 Laser Source Type: Thermal/830nm
Throughput: 27 PPH No. Of Lasers: 64 Diodes
High Light:

Thermal CTP Plate Making Machine

,

830nm Laser CTP Plate Making Machine

,

27PPH Throughput PS Plate Making Machine

Thermal 830nm Laser PS CTP Plate Making Machine 27 PPH Throughput



Chinese Factory Produce PS CTP Plate Making Machine with Best Price and Friendly Service



Shenzhen Yintech Co.,LTD is a modern high-tech enterprise specialized in pre-press plate making equipment, integrating design, R&D, manufacturing and sales services. Our main products are included:

Thermal CTP Plate Making Machine 27 PPH Throughput 64 Channel 8600B

Thermal 830nm Laser PS CTP Plate Making Machine 27 PPH Throughput 0

NO.of Lasers

64

Throughput (1130*800mm) plates/h

27

Max format

1160*940mm

Min format

350*400mm

Laser source

830nm

Resolution

2400DPI (can be customized)

Loading system

Automatic, Semi-auto (Optional Auto-loader)

Plates requirement

0.15-0.4mm thermal CTP plate, no brand requirement

Interface

1-bit Tiff interface and direct workflow driver, support CIP3/CIP4

Power

AC220V, 50-60Hz, 5.5KVA

Working environment

Temperature: 20-25℃, humility: 40%-80%

Size& Net weight

2020*1000*930mm, 1500kgs

Core Technology Advantages for CTP/CTCP machines:
1. Adopted high power imported laser from Japan and America, so the laser life is longer than others.
2. The marble stone working platform ensures that the machine still keeps high precision and high stability under the condition of long working time.
3. The overall design of the equipment adopts independent modular design, which facilitates the upgrade, replacement and maintenance of the equipment.
4. Laser diodes are arranged independently and each laser diodes can be upgraded, replaced and maintained one by one.
5. Advanced auto-focus system is adopted, which is suitable for different thickness plates and different brand plates.
6. Our non-linear calibration technology ensures the accuracy of the plate making.
7. Remote intelligent diagnosis technologyenables engineers to diagnose and maintain machines without leaving home.
8. The automatic balance of laser energy technology ensures the consistency of laser spot size, and ensures the uniformity, firmness and delicacy of output dots.
9. Unique loading and unloading technology saves plate-making time and improves plate-making efficiency.
10. The photoelectric laser positioning technology ensures the high standard registration.
11. Open 1-bit Tiff workflow interface is applicable to all workflow software.
12. Abandoning the traditional lead-screw mode, we adopt the advanced maglev motion controal system ensures the accuracy and service life of the machine.

Why choose us?
The leading core technology, stable product quality, strict control of each quality, timely and efficient after sale service. The whole production process controlled by our own factory.
1. Strict Quality control
All the machines are assembled, tested,and inspected from materials completed by our own factory
2. Our hassle-free services
① We provide comprehensive one-stop services, customer training and satisfied after sales services.
② Online support, video technical support for troubleshooting manufacturing problems, engineers are available to service oversea as necessary.
③ Sold enjoy two years of free equipment warranty and lifetime technical support.
3. Professional team Customer may also ask:
We have teams of experienced technical experts and professionals providing most professional and just-in-time technical consults and services, timely supply of spare parts in place.
If you are still confused how to start printing work, don't worry, contact us and we will help you out!! No mater you are a green hand, we will train you up-to-date technology skills, and keep an eye on your business opportunities. Our friendly and professional team that is able to handle all your inquiries whenever you need.
4. Safety and fast transportation.
