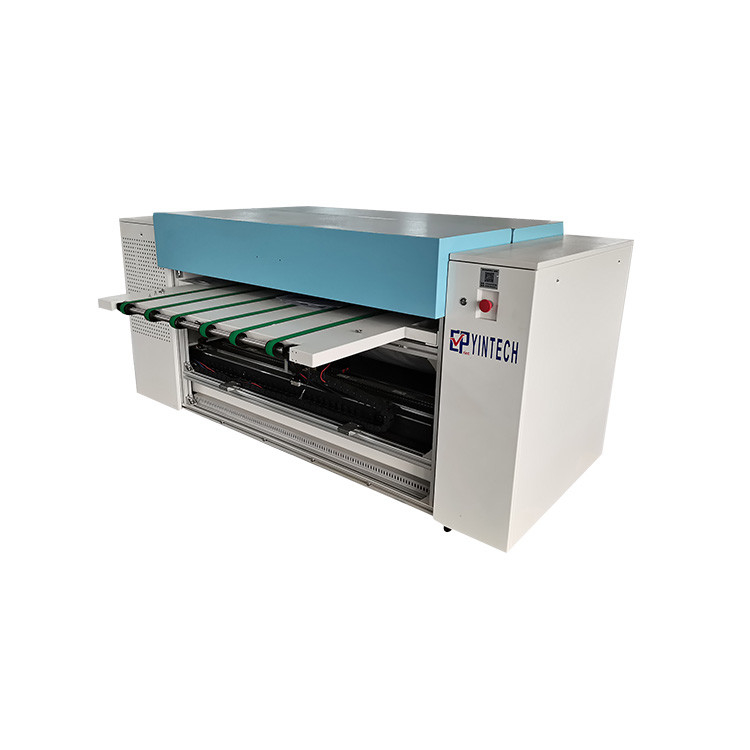

Small Size Automatic CTCP Machine High Resolution 4 Up 40 - 80% Humidity

Item name : small ctcp plate making machine 4-up 2400DPI 29PPH 48 diodes max format 800x660mm

Our advantages

Yintech ctp machine 10 advantages why choose us? products structure design advantages, 7x24 hours service advantages, warranty time=5 years

1.Autofocus system

The same as Kodak, we adopted real-time auto-focus technology. Auto-focus brings not only more flexible on plates’ options, but also more saturated dot, if the drum happens to deform or plates not flat, , auto-focus system can make up these flaws.

2.Maglev track technology

We adopted maglev track (magnetic levitation) to replace traditional lead screw. traditionally, manufacturers use lead screw to drive the lens, the interval between lead screw and nut will increase after used, as a result, it will decrease the accuracy of plates making.

Moreover, lead screw need to be lubricated frequently to keep it smooth.

3.Non-linear Calibration system

Nonlinear graphical calibration system can perfectly reproduce rectangle, eliminating dimensional deviation caused by different plate thickness.

4.Use high power laser diodes

High-power diodes. Unlike most manufacturers use 1w diodes for CTP machines and 70mj (200mW) diodes for CTCP machines, we use 2W diodes for CTP machines and 120mj (300mW) for CTCP machines. Based on usual use, higher power diodes can expect a longer life and not so easy to get aged.

5.Built-in bearing in the drum

We used built-in bearing to support our drum, which brings higher stability and more accuracy when the drum rotates in a high speed, without a big deviation.

6.Top-class components and parts

We use top-class accessories in all our equipment, which brings our products more stable performance and longer life. -Fuji motor from Japan; -Lasermech thermal diodes from USA; -Nichia UV diodes from Japan; -Maglev system and bearings from Germany; -Sensors from Spain.

7.workflow and RIP software

we install the most popular ctp work flow &RIP software for our clients, Prinergy & Harlequin.

8.Remote diagnosis system.

( Remote diagnosis) Through “ Teamviewer”, our technicians can share data with customers‘ computer in real-time, thus to diagnose their CTP equipment.

Shenzhen Yintech Co.,Ltd is one of top leading ctcp plate making machine manufacturer, we produce and supply ctcp plate making machine, ctp plate making machine, CTS and flexo plate making machine, we have professional ctcp plate making factory, welcome to wholesale products from us.

9.Marble stone platform

Temperate resistance feature makes it more stable more accurate.

10.Double row fiber source laser diode design

Enable the dots more dense, resulting in a finer resolution.

Even one laser failed , it will still work normally. You don’t need to change instantly .you have enough time to make replacement for that failed laser.

11.Modular design

modular design ,easy assembling job make the failure rate very low. All modules are monitored, tracked and can be diagnosed by PC software.

UV CTP(Semi-Auto)
Technical specification
Model	UV (thermal) CTCP
	Yinber 9300A	Yinber 9500A	Yinber 9600A	Yinber 5300A	Yinber 5500A
No. of Lasers	32	48	64	32	48
Productivity (1130x800mm) (plates/h)	17	22	26	22	28
Max./Min. Format	Max.: 1160mmx940mm Min.: 350mmx400mm			Max.: 800mmx660mm Min.: 350mmx400mm
Laser Source	405nm
Resolution	2400 dpi (Resolution can be customized, up to 8000dpi maximum)
Loading System	Semi-Auto
Plates Requirement	0.15-0.4mm UV plates, no brand requirement
CTP Interface	1-bit Tiff interface and direct workflow driver,support CIP3/CIP4
Power	AC220-230V,50-60Hz 5.5KW
Environment	Temperature: 20-25ºC Humidity: 40%-80%
Size & Weight	Size: 2020mmx 1000mmx 930mm Weight: 1500kg			Size:1900mmx 1200mmx 1000mm Weight: 1000kg
Workflow software	HQ&PR

Automatic CTP(Thermal VS UV)
Technical specification
Model	Thermal			UV
	Yinber 8300B	Yinber 8500B	Yinber 8600B	Yinber 9300B	Yinber 9500B	Yinber 9600B
No. of Lasers	32	48	64	32	48	64
Productivity (1130x800mm) (plates/hour)	17	24	29	17	24	29
Max./Min. Format	Max.: 1160mmx940mm Min.: 350mmx400mm
Laser Source	830nm			405nm
Resolution	2400 dpi (Resolution can be customized, up to 8000dpi maximum)
Loading System	Automatic,Semi-Auto ( Auto-loader available)
Plates Requirement	0.15-0.4mm Thermal plates, no brandre quirement			0.15-0.4mm UV plates, no brand requirement
CTP Interface	1-bit Tiff interface and direct workflow driver,support CIP3/CIP4
Power	AC220V,50-60Hz 8KW
Environment	Temperature: 20-25ºC Humidity: 40%-80%
Size & Weight	Size: 2200mmx1350mmx1350mm Weight: 1500kg
Workflow software	HQ&PR

Large Format CTP(Thermal VS UV)
Technical specification
Model	Thermal				UV
	Yinber 2200		Yinber 2300		Yinber 2200U		Yinber 2300U
No. of Lasers	48		64		48		64
Productivity (1130x800mm) (plates/hour)	12	13	14	15	12	13	14	15
Max./Min. Format	1200x 1400 508x394	1400x 1700 508x394	1200x 1400 508x394	1400x 1700 508x394	1200x 1400 508x394	1400x 1700 508x394	1200x 1400 508x394	1400x 1700 508x394
Laser Source	830nm				405nm
Resolution	2400 dpi
Loading System	Single plate, manual loading
Plates Requirement	0.15-0.4mm Thermal Plates				0.15-0.4mm UV Plates
CTP Interface	1-bit Tiff interface and direct workflow driver,support CIP3/CIP4
Power	AC220V,50-60Hz 8KW
Environment	Temperature: 20-25ºC Humidity: 40%-80%
Size & Weight	Size: 2880mmx1310mmx1310mm Weight: 2800kg
Workflow software	HQ&PR

FUCAI CTP Plate(Thermal VS UV PS Plate)
Technical specification
Products Type	(FP-100) Positive Thermal PS Plates	(FP-200) UV PS Plates
Durable Rate	50,000~100,000 prints; >=100,000 after baking	>=100,000 prints
Thickness	0.27mm, 0.15mm	0.27mm, 0.15mm
Sensitive wavelength	830nm	405nm
Laser power	110~150mj/cm	50~70mj/cm
Resolution	1%~99%@200lpi	1%~99%@200lpi
Baking condition	230˚C-250˚C, 5~8 minutes (by using professional plate baking glue)	230˚C-250˚C, 5~8 minutes (by using professional plate baking glue)
Safe lighting	2 hours under fluorescent lamp, 12 hours under yellow light	2 hours under fluorescent lamp, 12 hours under yellow light
Storage condition	Store in dry and cool place, store in 5˚C~30˚C, Humility <55%	Store in dry and cool place, store in 5˚C~30˚C, Humility <55%
Shelf life	12 months	12 months
Developing time	20sec~30sec	20sec~30sec
Productivity	1800m2~2500m2	1800m2~2500m2
