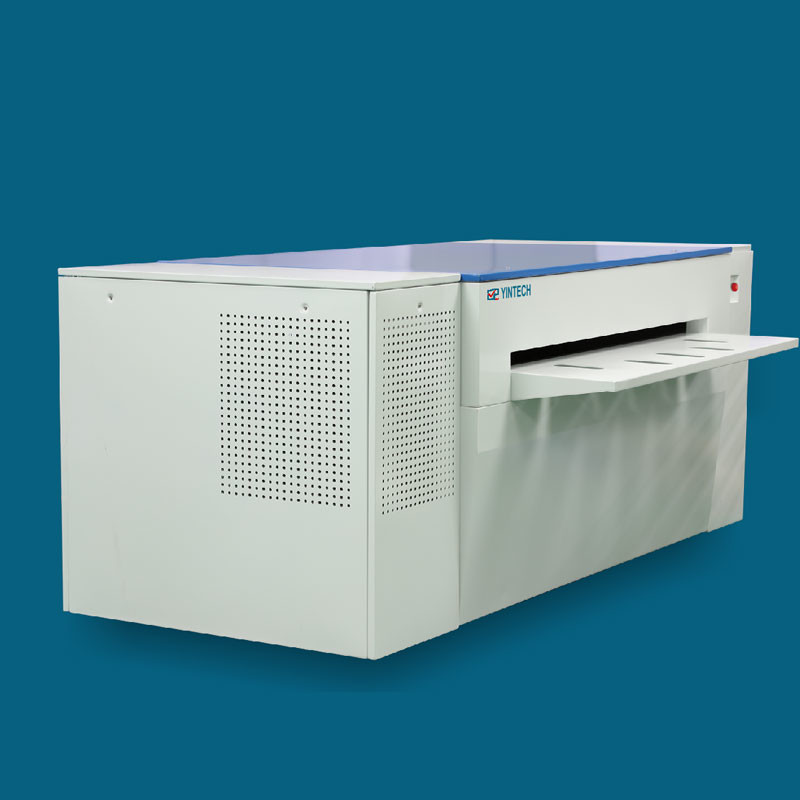

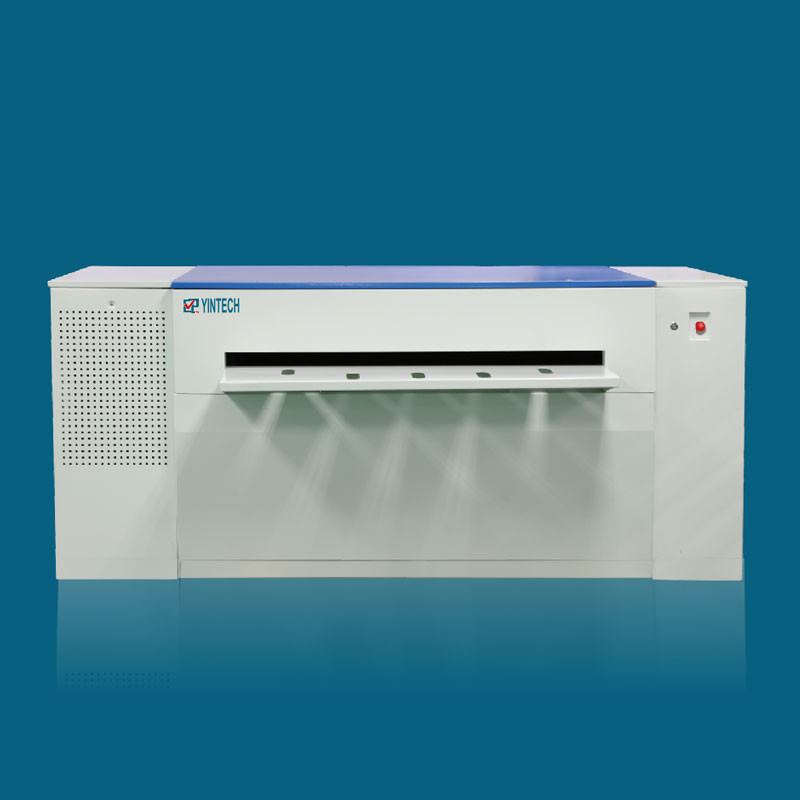

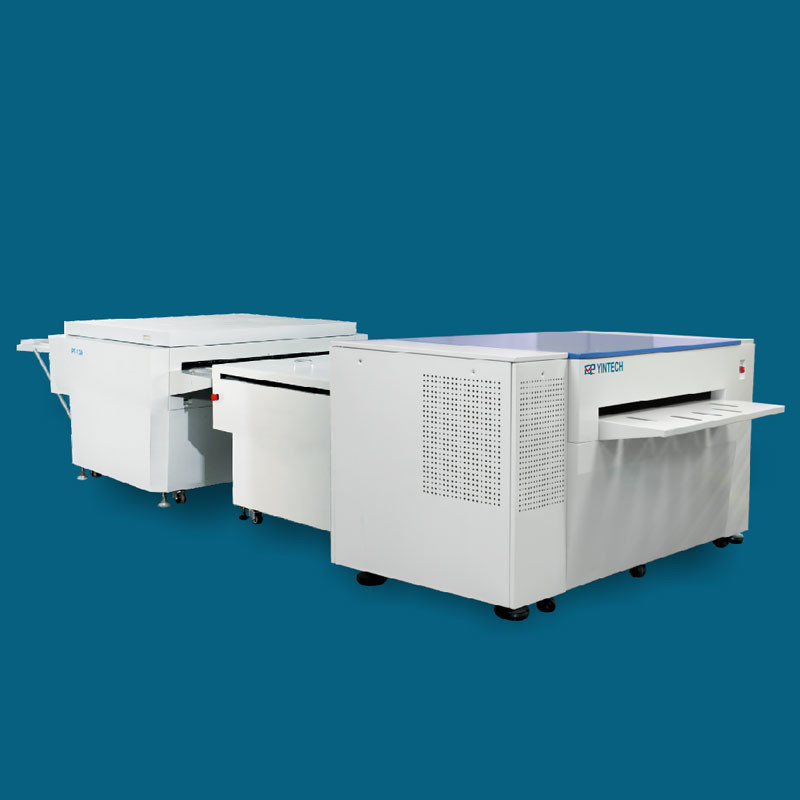

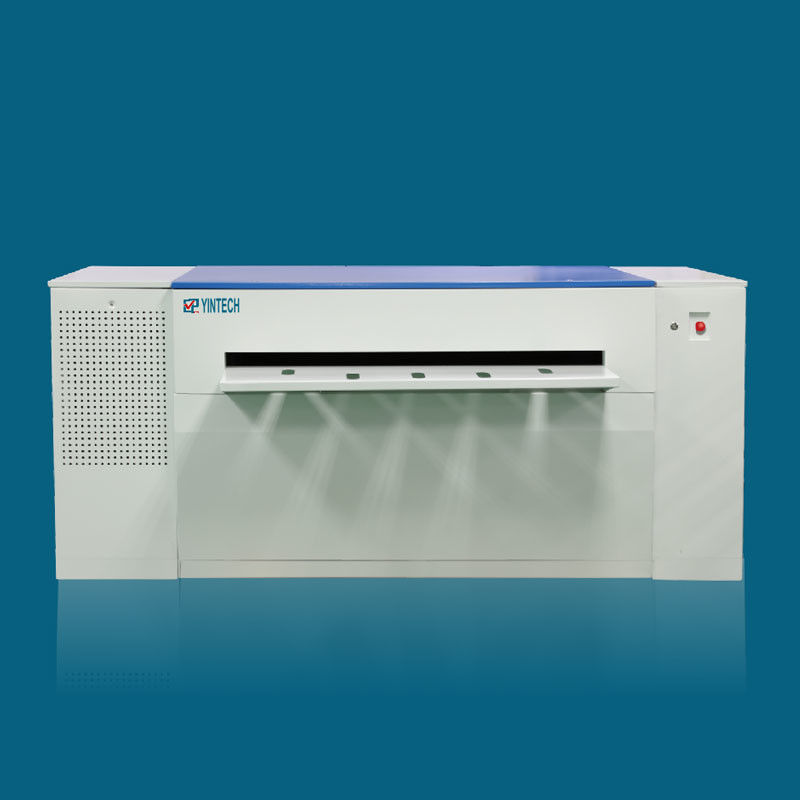

Thermal CTP Plate Making Machine 27 PPH Throughput 64 Channel 8600B
Product Details
| Rip/workflow Software: | Harlequin /prinergy | Loading System: | Semi-auto/automatic |
|---|---|---|---|
| Driver Support: | 1-bit Tiff Interface And Direct Workflow Driver,support Cip3/cip4 | Laser Source Type: | Thermal/830nm |
| Throughput: | 27 PPH | No. Of Lasers: | 64 |
| Highlight |
ctp machine,computer to plate printer,64 Channel CTP Plate Making Machine |
||
Product Description
Thermal model: 8300/8500/8600/8900/8100 corresponding to the thermal laser diodes 32 /48/64/96/128 channels
UV model: 9300/9500/9600/9900/9100 corresponding to UV laser diodes 32 /48/64/96/128 channels
Number of laser diodes: 32/48/64/96/128 channels
Throughput : 17/22/27/33/43 plates/hour
Max plate size: 1160x940mm min plate size: 350x400mm
Laser source: 830nm/405nm
Resolution: 2400dpi
Plate loading/unloading system: manual/automatic/semi-automatic optional
Plate media gauge: 0.15-0.40mm various thermal plates/0.15-0.40mm various UV plates
CTP interface: 1-bit TIFF interface and workflow direct drive, support for CIP3/CIP4
Power requirements: AC220V, 50-60Hz 5.5KVA
Working environment requirements:
Temperature: 20-25C, humidity: 40%-80%
Size: 2020x1000x930mm Net weight: 1500KG
Product Highlights
Thermal model: 8300/8500/8600/8900/8100 corresponding to the thermal laser diodes 32 /48/64/96/128 channels UV model: 9300/9500/9600/9900/9100 corresponding to UV laser diodes 32 /48/64/96/128 channels Number of laser diodes: 32/48/64/96/128 channels Throughput : 17/22/27/33/43 plates/hour Max plate ...
