Industrial Grade Monochrome/Dual/CMYK Color Rotary Digital Inkjet Printer High resolution 1200*600dpi 1200*1200dpi

Basic Information
Place of Origin: China
Brand Name: Yintech
Certification: ISO9001
Model Number: DPM440C
Minimum Order Quantity: 1 set
Price: $ 150000 - $ 290000 per set
Packaging Details: Wooden package
Delivery Time: 30 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 12 sets per Month
Printhead: Industrial Drop-on-Demand Piezoelectric Nozzle Resolution: 1200*600 Dpi 1200*1200 Dpi
Print Speed: 150m/min Max* Print Type: Mono-color/Dual-color/Full-colors Duplex
Media Type: Digital Printing Paper, Dry Method: Infrared Dryer
Weight: 9500 KG Machinery Test Report: Provided
Sea Port: FOB Shenzhen Brand Name: YINTECH
High Light:

Industrial Grade Rotary Digital Inkjet Printer

,

CMYK Color Rotary Digital Inkjet Printer

,

High resolution Rotary Digital Inkjet Printer



Company Profile

    Established in 2012, Yintech Group is a leading innovator in the field of laser imaging and industrial inkjet printing technology. Committed to independent research and development, we hold numerous patents and software copyrights, ensuring our products remain at the forefront of technological advancement.

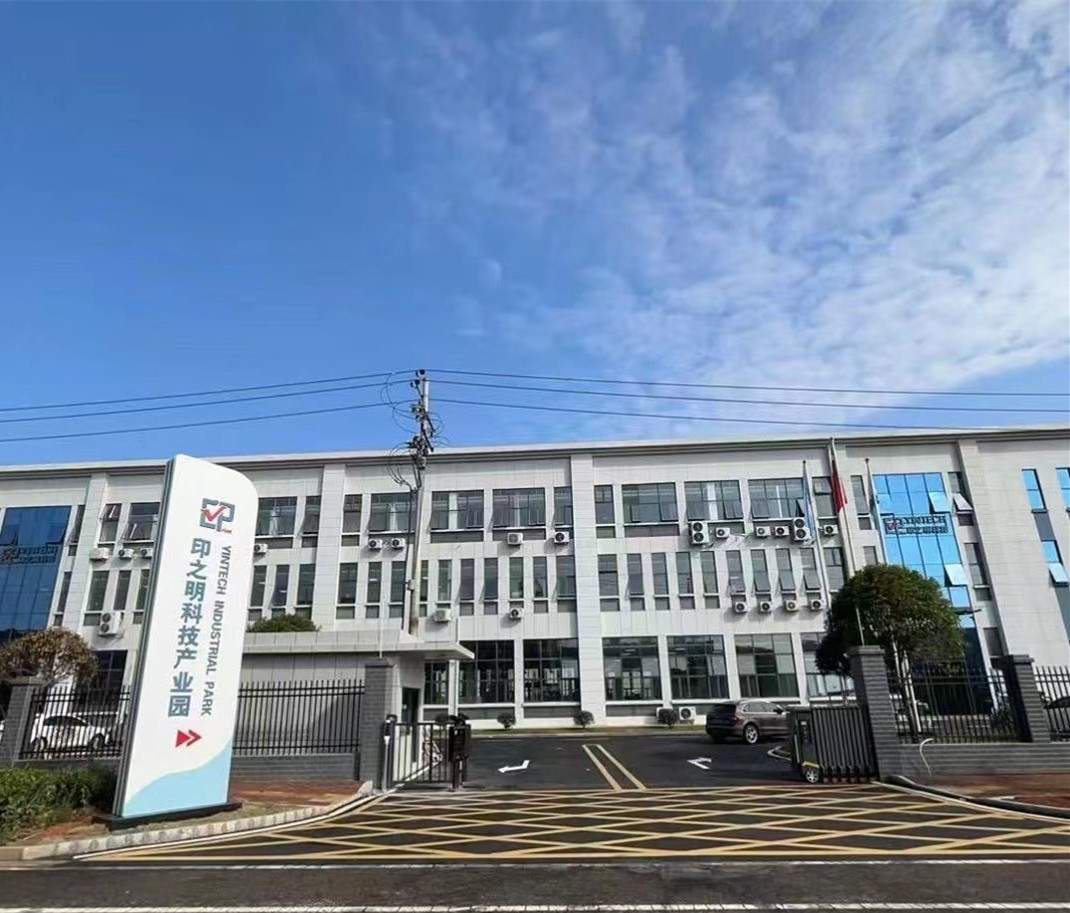

    In 2019, we expanded our presence with the inauguration of Hunan Yintech Co.,Ltd in Xiangtan, Hunan Province, with a substantial investment of 600 million yuan (approximately 85 million U.S. dollars). Our state-of-the-art manufacturing facility spans over 30 acres and is dedicated to producing cutting-edge laser imaging and inkjet printing equipment.
    With a global reach extending to over 60 countries and regions, Yintech Group has established a robust sales and service network, delivering high-quality, eco-friendly printing solutions to our diverse clientele. Moving forward, we remain committed to excellence in product development and innovation, driving the evolution of the printing market.



Product Description

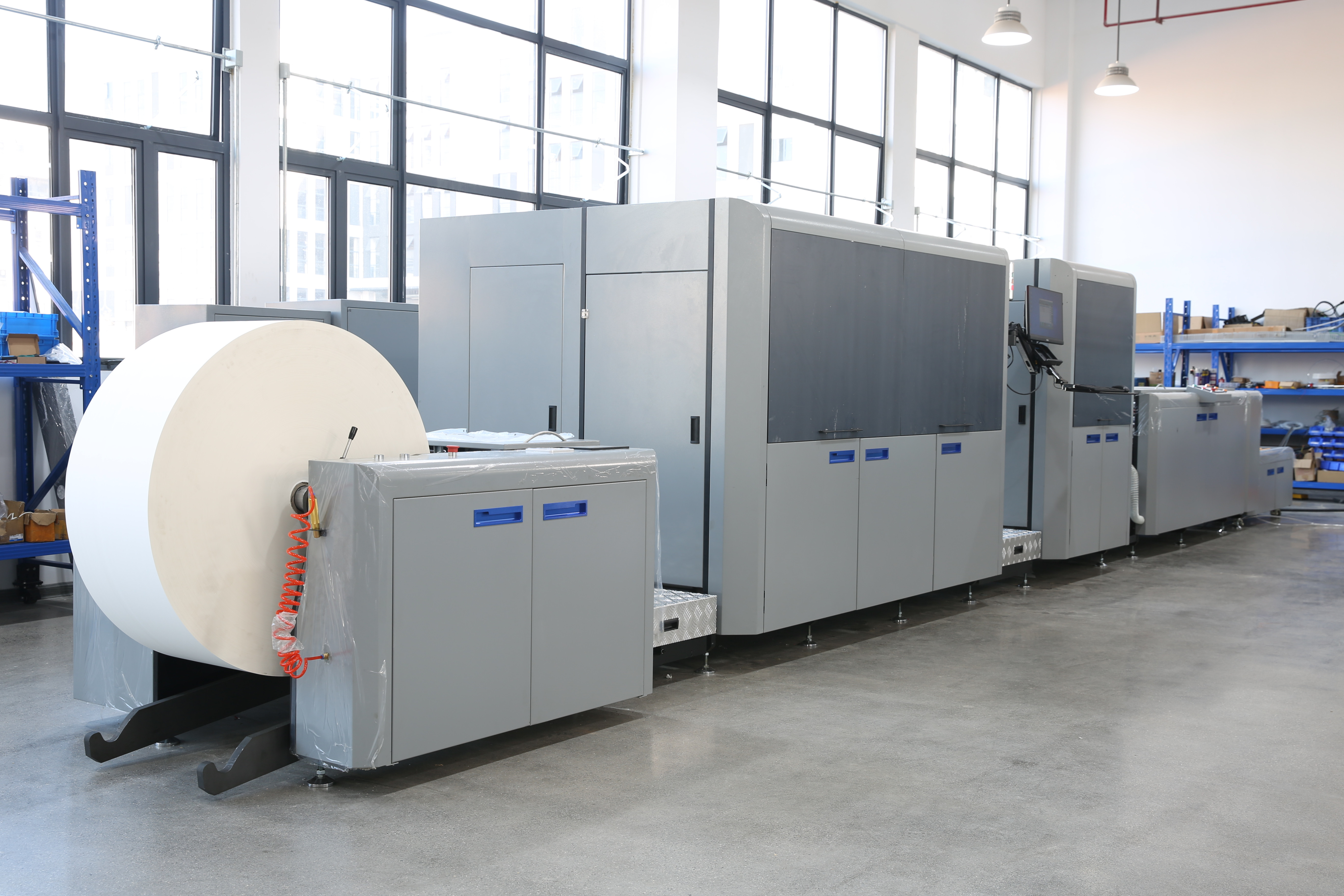

Yintech POD Digital Inkjet Press: Empowering Flexible Print-on-Demand Solutions

Introducing the Yintech POD Digital Inkjet Press, a game-changer in the books printing market. Designed to meet the evolving demands of modern publishing, this press offers unparalleled flexibility and efficiency. Leveraging Yintech's advanced inkjet control technology and media transmission technology, along with a 1200dpi industrial-level drop-on-demand piezo print head, it delivers stable and high-speed printing on double-sided black & white or color pages. With a remarkable speed of up to 150m/min and precise color alignment accuracy of 0.1mm tolerance in double-sided printing mode, it ensures exceptional quality and consistency. From graphic & text printing to commercial printing and public document printing, the Yintech POD Digital Inkjet Press is the ultimate choice for high-quality color printing and mass personalization.



Two optional color, pure grey/white





Specification



Model DPM440 DPM560 DPM660
Max media width 440mm 560mm 660mm
Max printing width 432mm 552mm 652mm
Printing style Duplex
Resolution 1200x600dpi, 1200x1200dpi
Max printing speed 150 (m/min)
CMYK registration ± 0.05 mm
Front-back registration ± 0.1 mm
Ink type Water based pigment ink
Inkjet head Drop-on-Demand piezoelectric nozzle
Dry method Infrared dryer
Media thickness 45-165 g/m²
Media type Digital printing paper, art paper, offset paper, inkjet coated paper, newspaper
Max roll diameter 1.27 m
Mechanical platform Max. 35KW
Infrared drying Max. 40KW
Digital control system Max. 8KW
Temperature Range 22.5-27.5℃, the best working temperature is 25℃
Humidity Range 40-70% RH, the best working humidity is 50-60% RH
Dememtion (L*W*H) 11000*3500*2200 mm








Support and Service



Our Inkjet Printing Machine is designed to provide high-quality prints with a user-friendly interface. We offer product technical support and services to ensure that our customers are satisfied with their purchase. Our support team is available to assist with any technical issues that may arise, including troubleshooting, software updates, and maintenance. We also offer training services to help customers get the most out of their Inkjet Printing Machine. Our goal is to provide comprehensive support to ensure our customers' success with our product.

Count on our round-the-clock engineer support for quick responses, ensuring uninterrupted printing operations.
