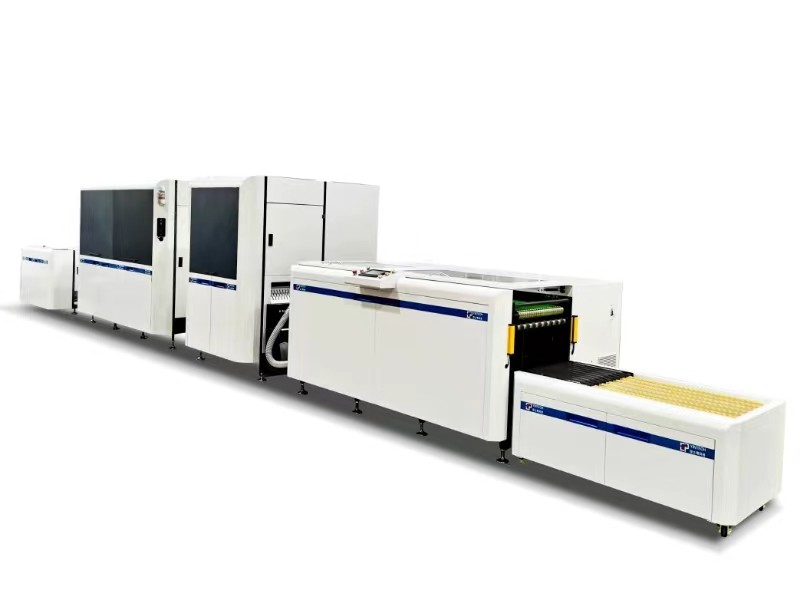

Global High-Speed CMYK Color Rotary Inkjet Digital Printing Machine DPM440C Premium Version
Product Details
| Printing Type: | 4-colors Duplex (CMYK Duplex) | Resolution: | 1200*1200 Dpi , 1200*600 Dpi |
|---|---|---|---|
| Print Speed: | 150m/min Max* | Print Head: | Industrial Drop-on-Demand Piezoelectric Nozzle |
| Ink Droplet Size: | 1.5 PL | Dry Method: | Infrared Dryer |
| Dry System: | Built In Infrared Drying System And External Hot Air Circulation Collection System | Automatic Grade: | Automatic |
| Color: | Grey Or White | Condition: | New |
| Key Selling Points: | High-speed, Inkjet Digital Printer, 1200*1200 Resolution | Core Components: | PLC, Printhead, Engine |
| Packing Details: | Standard Export Packaging(Wooden) | Warranty Of Core Components: | 1 Year |
| Warranty: | 1 Year | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Sea Port: | FOB Shenzhen |
| Highlight |
Premium Version Inkjet Printing Machine,DPM440C Inkjet Printing Machine,CMYK Color Inkjet Printing Machine |
||
Product Description
Company Profile
Yintech Group was established in 2012, which is a national high-tech enterprise specializing in research and development, manufacturing, and after-sales service of laser direct imaging technology and industrial inkjet printing technology. We always adhere to independent research and development, possess multiple patents and software copyrights, and continuously strive for excellence in reasearch and development, manufacturing, and after-sales service. In 2019, we established Hunan Yintech Co.,Ltd in Xiangtan, Hunan Province, with a total investment of 600 million yuan( 85 million U.S Dollar), established Yintech industrial park, covering an area of 30 acres, which is used to create RESEARCH & DEVELOPMENT and manufacturing base for laser imaging intelligent equipments like CTP, CTCP, Flexo CTP machine and inkjet digital printing equipment.
Through many years of intensive research and development, we currently have established sales and service networks in more than 60 countries and regions around the world. With a powerful digital platform and focus on inkjet technology, we have provided high-quolity, intelligent, green, and international leading black and white duplex, duar-color duplex, CMYK duplex rotary inkjet digital printing solutions to global users, as well as experiencing high growth rate in the market.
In future we will continue striving to create products of the high quality, and bring exciting new innovations into the printing market.
Specification
| Model | DPM440C (Premium) | |
| Printing style | Full-colours duplex | |
| Resolution | 600*1200 dpi 1200*1200 dpi | |
| Max printing speed | 150m/min | |
| Ink type | Water-based pigment ink | |
| CMYK registration | ± 0.05 mm | |
| Registration accuracy | ± 0.1mm (Front and back) | |
| Printhead | Industrial Drop-on-demand piezoelectric | |
| Dry method | Infrared dryer | |
| Operation interface | Visal operation interface | |
| Max media width | 440 mm | |
| Max printing width | 432 mm | |
| Media thickness | 45-165 g/m² | |
| Media type | Digital printing paper, art paper, offset paper, inkjet coated paper, newspaper | |
| Max roll diameter | 1.27 m | |
| Mechanical platform | Max. 35KW | |
| Infrared drying | Max. 40KW | |
| Digital controller system | Max. 8KW | |
| Temperature | Range 22.5-27.5℃, the best working temperature is 25℃ | |
| Humidity | Range 40-70% RH, the best working humidity is 50-60% RH | |
| Size | 11560mm (Length) * 3611mm (Width) * 2030mm (Height) | |
* The actual speed is influenced by different papers and files.
DPM 440C Roll - to - Cut >>
Standar Parts:
Decoiling system → Paper dust removal system → Printing main unit → High efficiency temperature controller system → Nozzel compensation → Paper positioning system → Anti-static system → Cut & stack system
