Printing Style: | CMKY Duplex | Resolution: | 1200*1200DPI |
---|---|---|---|
Ink Type: | Water Based Pigment Ink | Max Media Width: | 440mm |
Max Printing Width: | 432mm | Media Thickness: | 45 -165gsm |
Media Type: | Digital Printing Paper, Inkjet Coating Paper, Newsprint, Wall Paper | ||
High Light: | Dual Color Inkjet Web Press,Rotary Inkjet Web Press,Dual Color Inkjet Printing Machine |
Yintech adheres to diversified independent intellectual property rights, firmly grasps core technologies of hardware, software, machinery, ink and solutions, is committed to providing government file printing, graphic text printing, commercial printing, school teaching file, network digital printing as well as other fields, and continue to optimize and reduce overall cost. Yintech DPM series solution launched successively is leading in the field and very well received in the market.

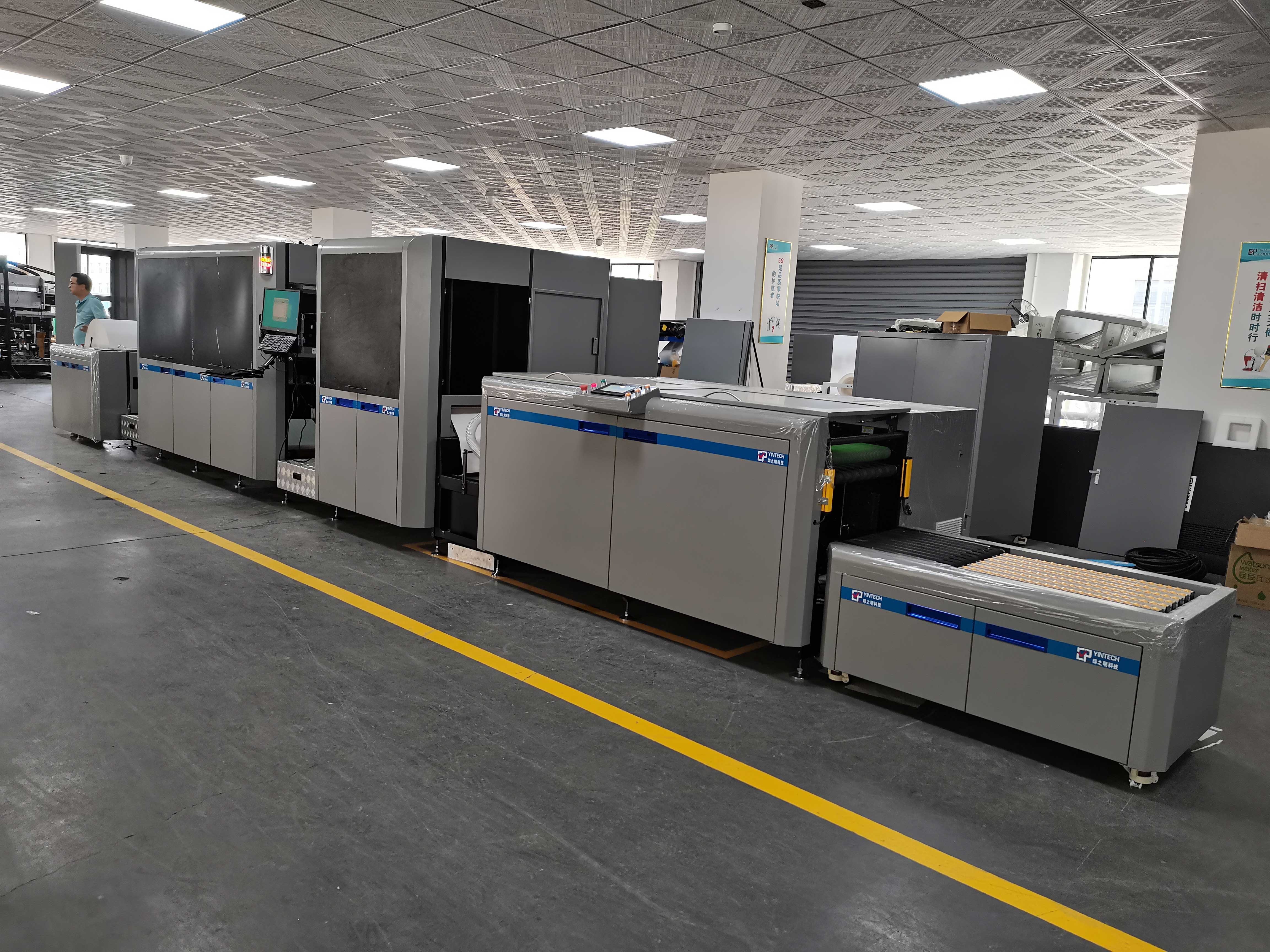

Specification
Model | DPM440C/DPM560C/DPM660C |
Printing style | CMYK duplex |
Resolution | 1200×1200DPI |
Ink type | Water based pigment ink |
Water based pigment ink | 150m/min |
Front-back registration | ±0.1 mm |
Inkjet head | Drop-on-Demand piezoelectric nozzle |
Drying | Infrared drying ( full automatic adjustment on printing speed ) |
Operation interface | Visual operation interface |
Max. media width | 440 mm/560mm/660mm |
Max. printing width | 432 mm/540mm/648mm |
Media thickness | 45-165g/㎡ |
Media type | digital printing paper, inkjet coating paper, newsprint, wall paper, etc. |
Max. roll diameter | 1.27 m |
Mechanical platform | Max. 35 KW |
Infrared drying | Max. 40KW |
Digital control system | Max. 8 KW |
Temperature | Range 22.5-27.5℃ Best working temperature 25℃ |
Humidity | Range 40-70% Best working temperature 50-60%RH |
Size | 11000*3500*2200 mm |
Weight | 9500 KG |
Perfect localization and fast response service support
Localized professional service team provides fast response and high-quality service in terms of system upgrade, equipment maintenance, and so on.
Remote Diagnosis
In combination with market demand and actual needs of customers, Yintech has developed a remote diagnosis platform for inkjet digital printing equipment, using real-time data analysis and processing technology through Internet to reduce equipment downtime, improve after-sales service efficiency, and provide customers with faster, more accurate and more reliable quality service.
