Black And White Version Print-on-demand Digital Inkjet Printing Machine

Basic Information
Place of Origin: China
Brand Name: Yintech
Certification: ISO9001
Model Number: DMP440M
Minimum Order Quantity: 1set
Price: $200,000~600,000
Packaging Details: Wooden package
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 20 sets per month
Printing Style: Monochrome Duplex Resolution: 1200*600dpi, 1200*1200dpi
Max Printing Speed: 100m/min Max Printing Width: 432mm
Max Roll Dia: 1.27m Max Media Width: 440mm

Shenzhen Yintech Co.,LTD is a modern high-tech enterprise specialized in pre-press plate making equipment, integrating design, R&D, manufacturing and sales services. Our main products are included:

Yintech DPM series is a high-capacity, cost-effective rotary inkjet digital printing equipment, which is latest R&D achievement of continuous research, continuous experimentation, and teamwork in the inkjet digital printing field.Yintech DPM series is equipped with 1200*1200dpi industrial-grade piezoelectric nozzles with core inkjet control technology, can print duplex mino-color/dual-color/full color. Its printing quality is as good as that of offset printing, printing speed is up to 100meters per minute, thereby meeting various printing needs.
Water based pigment ink is self-developed and produced, which can support a wide range of printing media and provide more feasible printing solutions of customers.

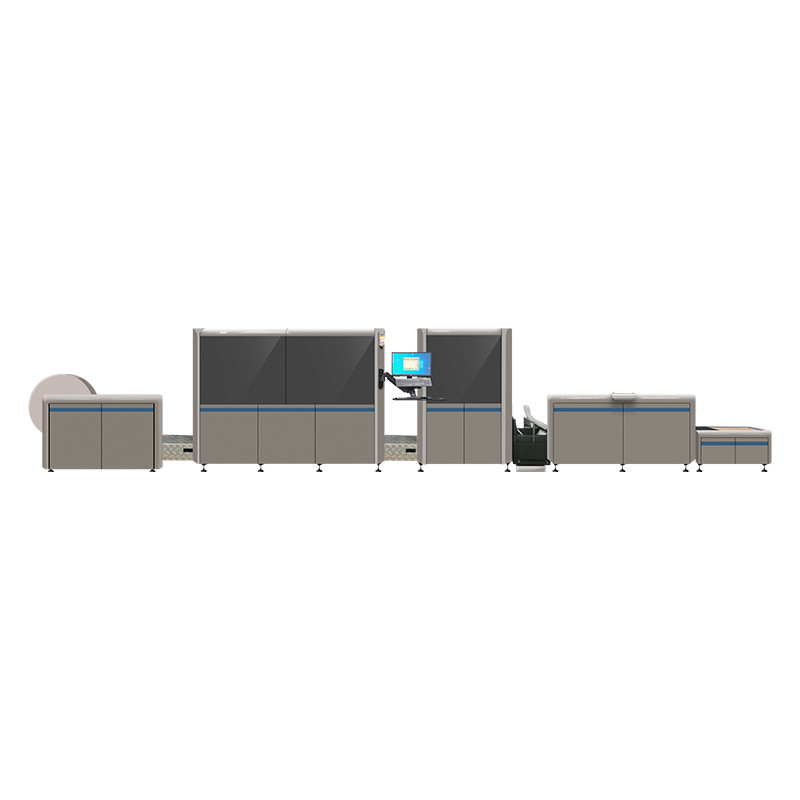

Specification for DPM440M Digital Inkjet Printer

Printing style: Monochrome duplex
Resolution: 1200*600dpi / 1200*1200dpi
Max printing speed: 100m/min
Front-back registration: ±0.1mm
Inkjet head: Drop-on-demand piezoelectric nozzle
Ink type: Water based pigment ink
Drying: Infrared drying (full automatic adjustmnet on printing speed)
Operation interface: Visual operation interface
Max media width: 440mm
Max printing width: 432mm
Media thickness: 45-165g/m²
Media type: Digital printing paper, inkjet coating paper, newspaper, wall paper, etc
Max roll diameter: 1.27m
Mechanical platform: Max 25KW
Infrared drying: Max 6KW
Digital control system: Max 5.5KW
Temperature: Range 22.5-27.5℃, best working temperature: 25℃
Humidity: Range 40-70%, best working humidity 50-60%RH
Size & Weight: 11000*3500*2200mm, 9500kg

Core Technology Advantages for Monochrome/Dual-color printer:
High Quality

High Stability

High Capacity

Cost Effective

Yintech Digital Printing and Cutting System
1. Fast Production
Maimum production speed can reach 137 meters per minute, after connecting inkjet equipment, it can guarantee production speed requirement of 100 meters per minute.
2. Domestic Leading Cutting Technology
Domestic leading cutting technology can meet thin paper cutting requirement, unique small-diameter rotary cutting knife can ensure smaller size precise cutting.
3. Simple Setting and Quick Specification Conversion
Only making a simple setting on the touch screen can adjust paper cutting specification, fine adjustment without downtime, thereby improving efficiency and reducing paper waste.
4. Dislocation Stacking, Convenient for Post-process Operation
Simple touch screen setting can realize dislocation stacking, no need for sub-tasks in the post-process, thus reducing labor cost and improving production efficiency.

Customer service & Technical Support:

Perfect localization and fast response service support
Localized professional service team provides fast response and high quality service in terms of system upgrade, equipment maintenance and so on.

Remote diagnosis
In combination with market demand and actual needs of customers, Yintech has developed a remote diagnosis platform for inkjet digital printing equipment, using real-time data analysis and processing technology through internet to reduce equipment downtime, improve after-sales service efficiency, and provide customers with faster, more accurate and more relable quality service.

FAQ
Q: Are you a manufacturer or a trading company ?
A: We're professional manufacturer of Pre-press equipments, providing one-stop OEM & ODM service to all partners all over the world.
Q: Are your products conforming to our standards ?
A: Yes, our products can pass the testings as you require, e.g.: CE, RoHS, ISO9001.
Q: How do you control the quality ?
A: We have perfect QC system (IQC, IPQC, FQC, OQC team), professional product engineers and continuous improvement system.
Q: What's the product warranty?
A: We offer 24 months guarantee for all parts.
