Printing Style: | Monochrome Duplex | Resolution: | 1200*600dpi, 1200*1200dpi |
---|---|---|---|
Max Printing Speed: | 100m/min | Max Media Width: | 560mm |
Max Printing Width: | 540mm | Max Roll Dia: | 1.27m |
High Light: | CMYK Color Digital Inkjet Printer,CMYK Color Web Printing Machine,Inkjet Digital Web Printing Machine |

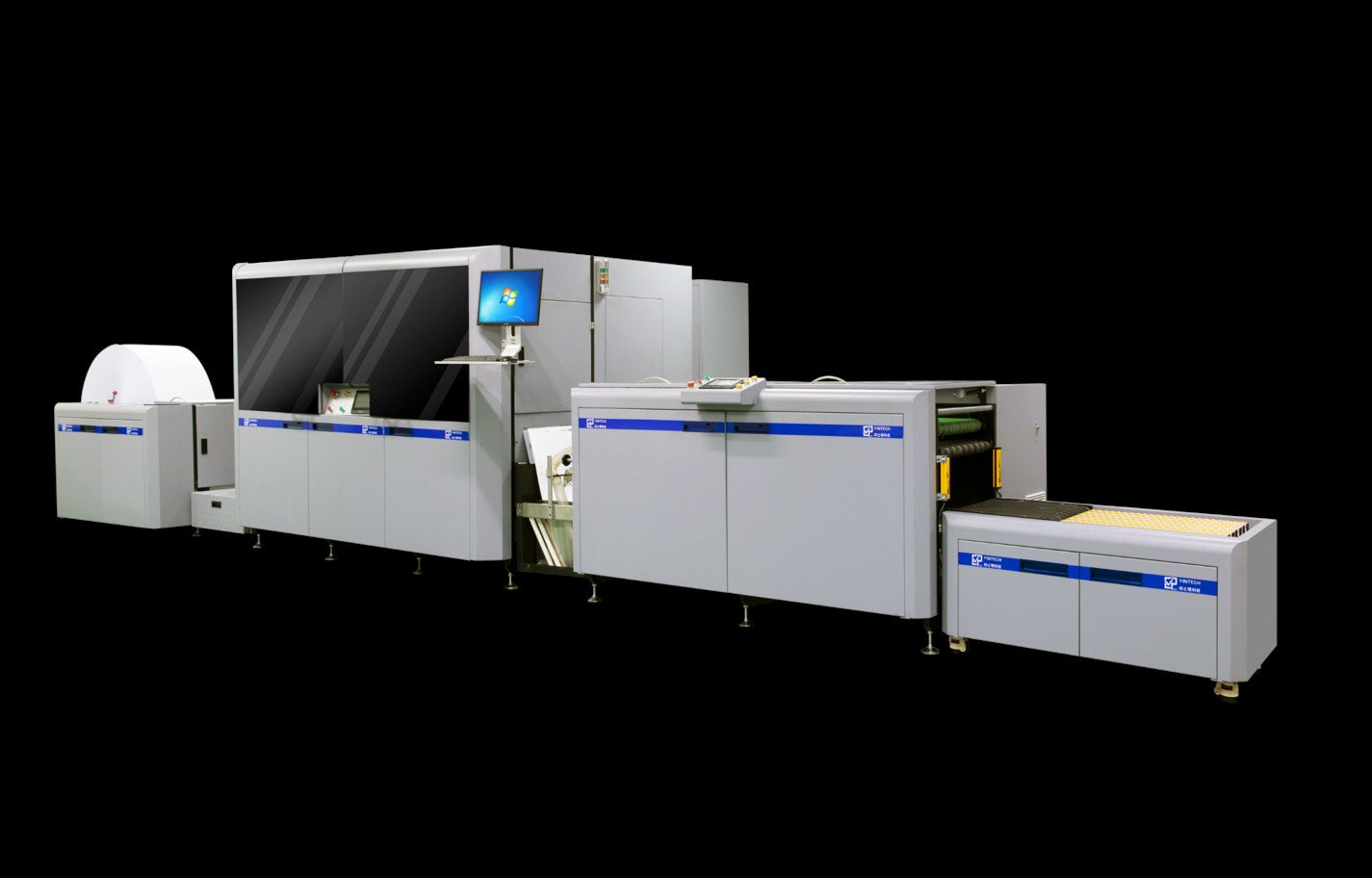

Monochrome CMYK Color Digital Inkjet Printer Web Printing Machine
Color Inkjet Web Digital Printing Machine
Shenzhen Yintech Co.,LTD is a modern high-tech enterprise specialized in pre-press plate making equipment, integrating design, R&D, manufacturing and sales services. Our main products are included:
Yintech DPM series is a high-capacity, cost-effective rotary inkjet digital printing equipment, which is latest R&D achievement of continuous research, continuous experimentation, and teamwork in the inkjet digital printing field.
Yintech DPM series is equipped with 1200*1200dpi industrial-grade piezoelectric nozzles with core inkjet control technology, can print duplex mino-color/dual-color/full color. Its printing quality is as good as that of offset printing, printing speed is up to 100meters per minute, thereby meeting various printing needs.
Water based pigment ink is self-developed and produced, which can support a wide range of printing media and provide more feasible printing solutions of customers.
Specification for DPM560M Digital Inkjet Printer
Printing style: | Monochrome duplex |
Resolution: | 1200*600dpi / 1200*1200dpi |
Max printing speed: | 100m/min |
Front-back registration: | ±0.1mm |
Inkjet head: | Drop-on-demand piezoelectric nozzle |
Ink type: | Water based pigment ink |
Drying: | Infrared drying (full automatic adjustmnet on printing speed) |
Operation interface: | Visual operation interface |
Max media width: | 560mm |
Max printing width: | 540mm |
Media thickness: | 45-165g/m² |
Media type: | Digital printing paper, inkjet coating paper, newspaper, wall paper, etc |
Max roll diameter: | 1.27m |
Mechanical platform: | Max 25KW |
Infrared drying: | Max 6KW |
Digital control system: | Max 5.5KW |
Temperature: | Range 22.5-27.5℃, best working temperature: 25℃ |
Humidity: | Range 40-70%, best working humidity 50-60%RH |
Size & Weight: | 11000*3500*2200mm, 9500kg |
Core Technology Advantages for Monochrome/Dual-color printer:
High Quality
1. High-precision nozzles splicing technology has been developed for many years, which makes multiple nozzles splicing more simple and faster, so that printing pattern can achieve truly seamless connection.
2. Unique nozzle driving technology makes sure each nozzle can work in high performance, so that the outer edge of printing text and strokes are very round and smooth, therefore eliminating scattered inkjet dots and burrs very well.
3. Piezoelectric high-speed industrial nozzles obtains faster and better printing quality.
4. Multi-bit deep network technology with own intellectual property rights enables printing quality to reach 1200dpi at a resolution of 600dpi, printing quality is as good as that of offset printing.
High Stability
1. Excellent design and high precision assembly technology have created a high quality paper conveying platform, which makes high-speed paper feeding more stable and motion control more precise, thus ensuring high quality printing.
2. Advanced tension control system can control paper feedking force at the printing position with high precision, therefore ensuring printing stability.
3. Software and hardware system design with completely independent intellectual property rights, high integration.
4. Self-developed ink supply system can ensure production stability.
High Capacity
1. With self-designed buffer structure, it can perfectly match cutting equipment.
2. Advanced typesetting technology can make prepress typesetting more convenient and faster.
3. High speed piezoelectric industrial nozzles are used, ignition frequency is up to 500kHz, which can obtain high quality high printing speed 120 meter per minute.
Cost Effective
1. Self-developed brand "FU CAI" series ink can highly match Print-On-Demand printing, and cost effective.The printing product is colorful, strong contrast, compatible with a variety of papers, durable, and no fading.
2. Stable high production capacity, extremely low rejection rate.
3. Advanced intelligent ink distribution system greatly reduces ink consumption while printing high quality products.
4. The digital printing equipment has a longer lifetime, outperforming traditional printing equipment, and a lower maintenance cost.

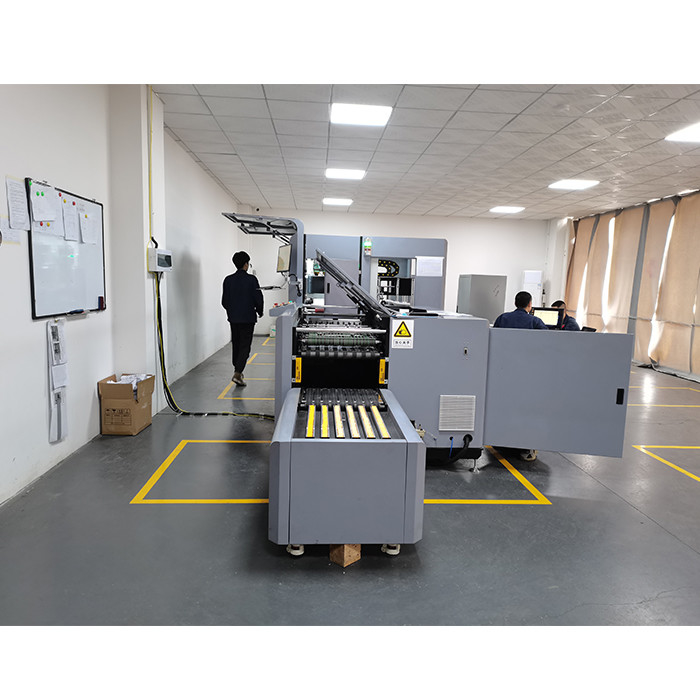

Yintech Digital Printing and Cutting System
1. Fast Production
Maimum production speed can reach 137 meters per minute, after connecting inkjet equipment, it can guarantee production speed requirement of 100 meters per minute.
2. Domestic Leading Cutting Technology
Domestic leading cutting technology can meet thin paper cutting requirement, unique small-diameter rotary cutting knife can ensure smaller size precise cutting.
3. Simple Setting and Quick Specification Conversion
Only making a simple setting on the touch screen can adjust paper cutting specification, fine adjustment without downtime, thereby improving efficiency and reducing paper waste.
4. Dislocation Stacking, Convenient for Post-process Operation
Simple touch screen setting can realize dislocation stacking, no need for sub-tasks in the post-process, thus reducing labor cost and improving production efficiency.
