Black And White Monochrome Duplex Digital Printing Machine

Basic Information
Place of Origin: China
Brand Name: Yintech
Certification: ISO9001
Model Number: DMP440M
Minimum Order Quantity: 1set
Price: $200000~280000 per set
Packaging Details: Wooden package
Delivery Time: 20-30 working days
Supply Ability: 10 Sets per Month
Printing Style: Monochrome Duplex Resolution: 1200*600dpi, 1200*1200dpi
Max Printing Speed: 100m/min Max Media Width: 440mm
Max Printing Width: 432mm Max Roll Dia: 1.27m
High Light:

Duplex Digital Inkjet Printer

,

Monochrome Digital Inkjet Printer

,

Monochrome Duplex Inkjet Digital Press

Monochrome Duplex Digital Inkjet Printer Press Black And White

Shenzhen Yintech Co.,LTD is a modern high-tech enterprise specialized in pre-press plate making equipment, integrating design, R&D, manufacturing and sales services. Our main products are included:

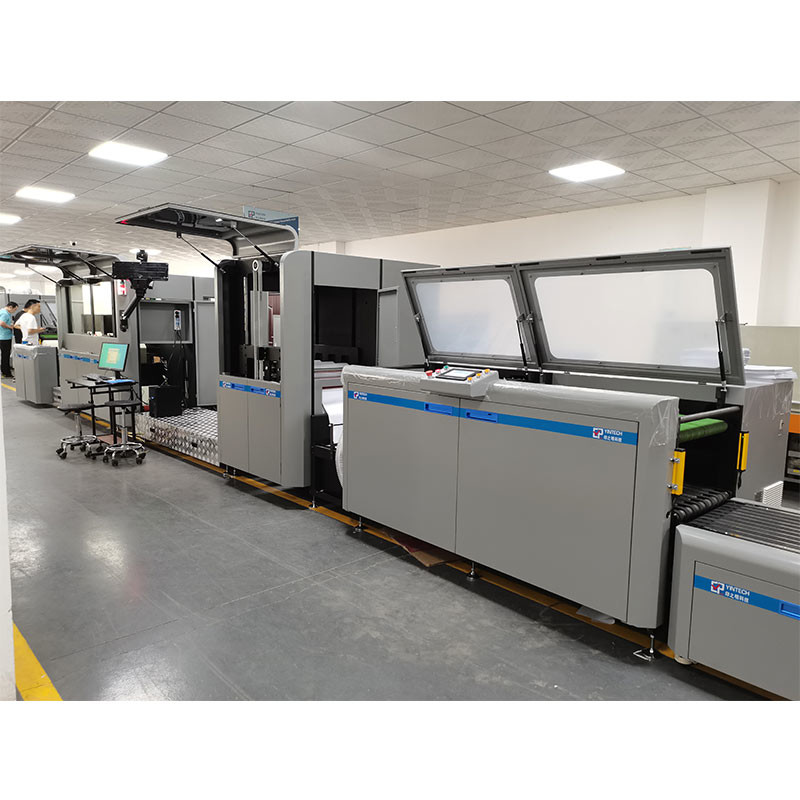

Yintech DPM series is a high-capacity, cost-effective rotary inkjet digital printing equipment, which is latest R&D achievement of continuous research, continuous experimentation, and teamwork in the inkjet digital printing field.
Yintech DPM series is equipped with 1200*1200dpi industrial-grade piezoelectric nozzles with core inkjet control technology, can print duplex mino-color/dual-color/full color. Its printing quality is as good as that of offset printing, printing speed is up to 100meters per minute, thereby meeting various printing needs.
Water based pigment ink is self-developed and produced, which can support a wide range of printing media and provide more feasible printing solutions of customers.

Specification for DPM440M Digital Inkjet Printer

Printing style: Monochrome duplex
Resolution: 1200*600dpi / 1200*1200dpi
Max printing speed: 100m/min
Front-back registration: ±0.1mm
Inkjet head: Drop-on-demand piezoelectric nozzle
Ink type: Water based pigment ink
Drying: Infrared drying (full automatic adjustmnet on printing speed)
Operation interface: Visual operation interface
Max media width: 440mm
Max printing width: 432mm
Media thickness: 45-165g/m²
Media type: Digital printing paper, inkjet coating paper, newspaper, wall paper, etc
Max roll diameter: 1.27m
Mechanical platform: Max 25KW
Infrared drying: Max 6KW
Digital control system: Max 5.5KW
Temperature: Range 22.5-27.5℃, best working temperature: 25℃
Humidity: Range 40-70%, best working humidity 50-60%RH
Size & Weight: 11000*3500*2200mm, 9500kg



Core Technology Advantages for Monochrome/Dual-color printer:
High Quality
1. High-precision nozzles splicing technology has been developed for many years, which makes multiple nozzles splicing more simple and faster, so that printing pattern can achieve truly seamless connection.
2. Unique nozzle driving technology makes sure each nozzle can work in high performance, so that the outer edge of printing text and strokes are very round and smooth, therefore eliminating scattered inkjet dots and burrs very well.
3. Piezoelectric high-speed industrial nozzles obtains faster and better printing quality.
4. Multi-bit deep network technology with own intellectual property rights enables printing quality to reach 1200dpi at a resolution of 600dpi, printing quality is as good as that of offset printing.

High Stability
1. Excellent design and high precision assembly technology have created a high quality paper conveying platform, which makes high-speed paper feeding more stable and motion control more precise, thus ensuring high quality printing.
2. Advanced tension control system can control paper feedking force at the printing position with high precision, therefore ensuring printing stability.
3. Software and hardware system design with completely independent intellectual property rights, high integration.
4. Self-developed ink supply system can ensure production stability.

High Capacity
1. With self-designed buffer structure, it can perfectly match cutting equipment.
2. Advanced typesetting technology can make prepress typesetting more convenient and faster.
3. High speed piezoelectric industrial nozzles are used, ignition frequency is up to 500kHz, which can obtain high quality high printing speed 120 meter per minute.

Cost Effective
1. Self-developed brand "FU CAI" series ink can highly match Print-On-Demand printing, and cost effective.The printing product is colorful, strong contrast, compatible with a variety of papers, durable, and no fading.
2. Stable high production capacity, extremely low rejection rate.
3. Advanced intelligent ink distribution system greatly reduces ink consumption while printing high quality products.
4. The digital printing equipment has a longer lifetime, outperforming traditional printing equipment, and a lower maintenance cost.
