Place of Origin: | China |
---|---|
Brand Name: | Yinber |
Certification: | ISO9001~2000 |
Model Number: | 2300-14U A/B |
Minimum Order Quantity: | 1 set |
Price: | $50000~54500 per set |
Packaging Details: | Export Wooden Case |
Delivery Time: | 20-30 days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 300 sets per Year |
Workflow Software: | Harlequin /prinergy | Condition: | New |
---|---|---|---|
Loading System: | Manual Loading, Auto Unloading | Driver Support: | 1-bit Tiff Interface And Direct Workflow Driver,support Cip3/cip4 |
Plate Required: | UV CTCP Plate | Plate Thickness: | 0.15mm-0.40mm |
High Light: | 2400DPI Resolution UV CTP Machine,6.9KW UV CTP Machine,6.9KW CTCP Plate Making Machine |
2400DPI Resolution UV CTP Machine 6.9KW Power For CTCP Plate
Made In China Factory Yintech CTCP Plate Making Machine Price
Shenzhen Yintech Co.,LTD is a modern high-tech enterprise specialized in pre-press plate making equipment, integrating design, R&D, manufacturing and sales services. Our main products include:
Model: Yinber 2300-14U A/B (A: Offline / B: Online)
Yinber 2300-14U A/B | UV |
No.of Lasers | 64-channels |
Throughput(1130*800mm) | 14 plates/h |
Max Format | 1180mm*1460mm |
Mini Format | 508mm*394mm |
Laser Source | 405nm |
Resolution | 2400DPI |
Loading System | Manual loading, auto unloading |
Plates requirement | 0.15-0.4mm UV CTCP plates, no brand requirement |
Interface | 1-bit Tiff interface and direct workflow driver, support CIP3/CIP4 |
Power | AC220V, 50-60Hz 6.9KW |
Work Environment | Temperature: 20-25℃, Humility: 40%-80% |
Size & Weight | 2670mm*1210mm*1730mm, 1235kgs |

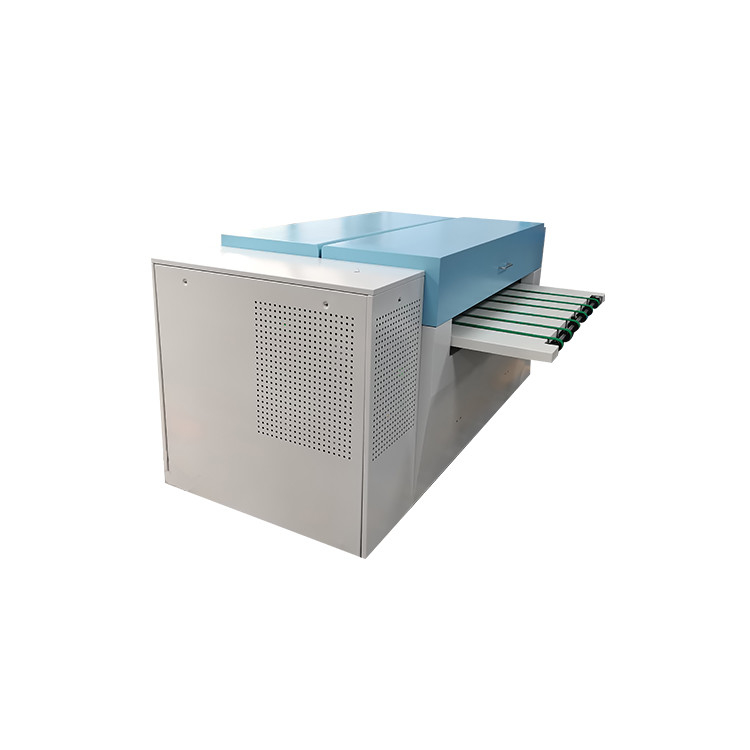

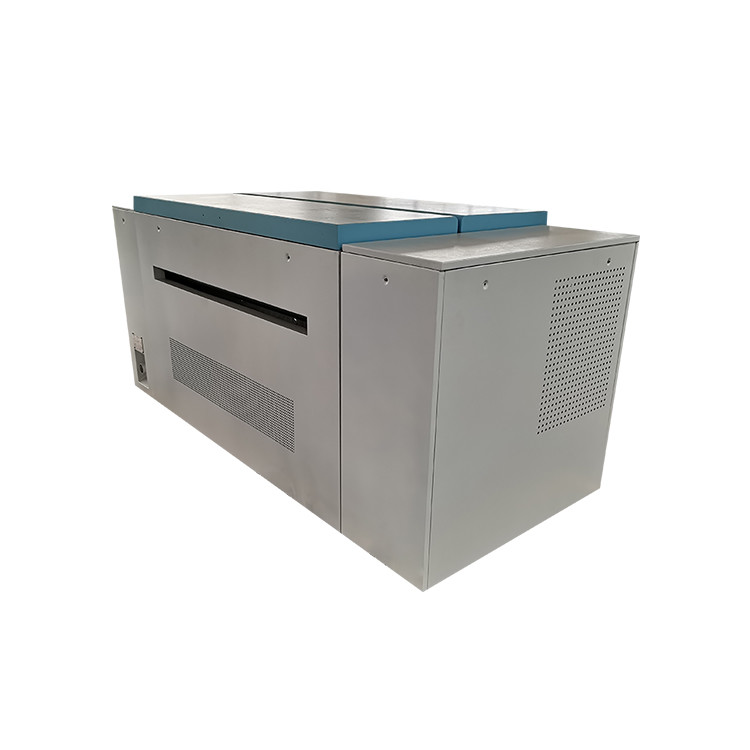

Picture:
Core Technology Advantages:
1. Abandoning the traditional lead-screw mode, we adopt the advanced maglev motion control system ensures the accuracy and service life of the machine.
2. Adopted high power imported laser from Japan and America, so the laser life is longer than others. Unlike most manufacturers use 1W diodes for CTP machines and 70mj(200mW) diodes for CTCP machines, we use 2W diodes for CTP machines and 120mj(300mW) for CTCP machines.
3. Workflow and RIP software - Prinergy & Harlequin.
Why choose us?
The leading core technology, stable product quality, strict control of each quality, timely and efficient after sale service. The whole production process controlled by our own factory.
1. Strict Quality control
All the machines are assembled, tested,and inspected from materials completed by our own factory
2. Our hassle-free services
① We provide comprehensive one-stop services, customer training and satisfied after sales services.
② Online support, video technical support for troubleshooting manufacturing problems, engineers are available to service oversea as necessary.
③ Sold enjoy two years of free equipment warranty and lifetime technical support.
3. Professional team Customer may also ask:
We have teams of experienced technical experts and professionals providing most professional and just-in-time technical consults and services, timely supply of spare parts in place.
If you are still confused how to start printing work, don't worry, contact us and we will help you out!! No mater you are a green hand, we will train you up-to-date technology skills, and keep an eye on your business opportunities. Our friendly and professional team that is able to handle all your inquiries whenever you need.
4. Safety and fast transportation.
