Place of Origin: | China |
---|---|
Brand Name: | Yinber |
Certification: | ISO9001~2000 |
Model Number: | 9600A/B |
Minimum Order Quantity: | 1 set |
Price: | $36800~48600 per set |
Packaging Details: | Export Wooden Case |
Delivery Time: | 20-30 days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 300 sets per Year |
Workflow Software: | Harlequin /prinergy | Condition: | New |
---|---|---|---|
Loading System: | Semi-auto/automatic | Driver Support: | 1-bit Tiff Interface And Direct Workflow Driver,support Cip3/cip4 |
Plate Required: | UV CTCP Plate | Plate Thickness: | 0.15mm-0.40mm |
High Light: | Remote Diagnosis UV CTP Machine,5.5KVA UV CTP Machine,AC220V CTP Printing Machine |
AC220V Remote Diagnosis System Laser UV CTP Machine For Printing
Factory Direct Sale Yintech CTCP Machine For Printing Company
Model: Yinber 9600A/B (A: Offline / B: Online)
Yinber 9600A/B | UV |
No.of Lasers | 64-channels |
Throughput(1130*800mm) | 27 plates/h |
Max Format | 1160mm*940mm |
Mini Format | 350mm*400mm |
Laser Source | 405nm |
Resolution | 2400DPI (Resolution can be customized) |
Loading System | Automatic / semi-auto (Optional Auto-loader) |
Plates requirement | 0.15-0.4mm thermal plates, no brand requirement |
Interface | 1-bit Tiff interface and direct workflow driver, support CIP3/CIP4 |
Power | AC220V, 50-60Hz 5.5KVA |
Work Environment | Temperature: 20-25℃, Humility: 40%-80% |
Size & Weight | 2020mm*1000mm*930mm, 1500kgs |
Shenzhen Yintech Co.,LTD is a modern high-tech enterprise specialized in pre-press plate making equipment, integrating design, R&D, manufacturing and sales services. Our main products include:

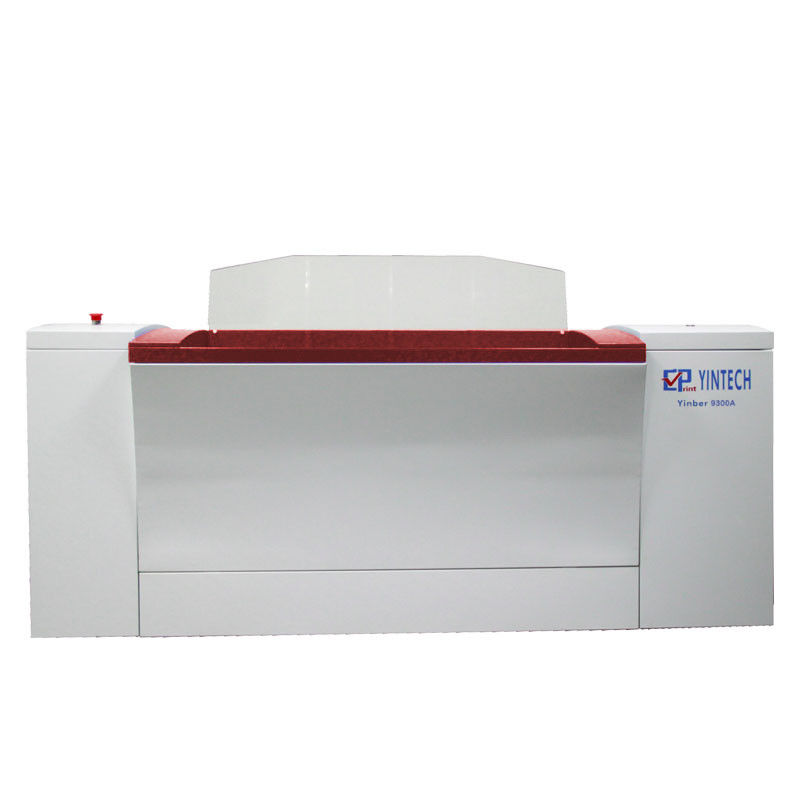

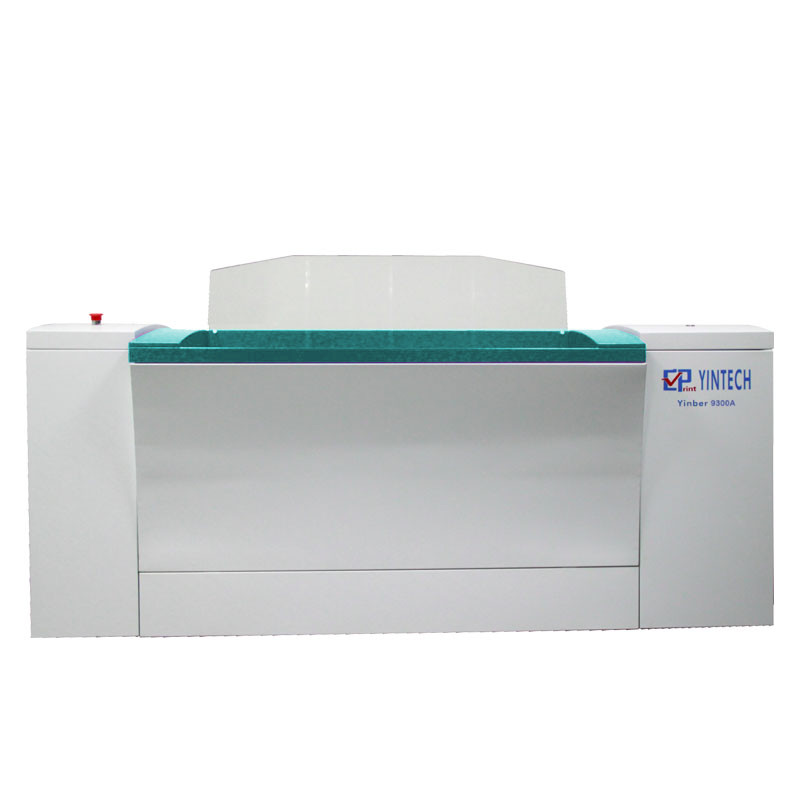

Picture:
Core Technology Advantages:
1. Laser diodes are arranged independently and each laser diodes can be upgraded, replaced and maintained one by one after.
2.Adopted high power imported laser from Japan and America, so the laser life is longer than others. Unlike most manufacturers use 1W diodes for CTP machines and 70mj(200mW) diodes for CTCP machines, we use 2W diodes for CTP machines and 120mj(300mW) for CTCP machines.
3.Remote diagnosis system through Teamviewer, our technicians can share data with customers' computer in real-time, thus to diagnose their CTCP equipment.
FAQ
Q: Are you a manufacturer or a trading company ?
A: We're professional manufacturer of Pre-press equipments, providing one-stop OEM & ODM service to all partners all over the world.
Q: Are your products conforming to our standards ?
A: Yes, our products can pass the testings as you require, e.g.: CE, RoHS, ISO9001.
Q: How do you control the quality ?
A: We have perfect QC system (IQC, IPQC, FQC, OQC team), professional product engineers and continuous improvement system.
Q: What's the product warranty?
A: We offer 24 months guarantee for all parts.
