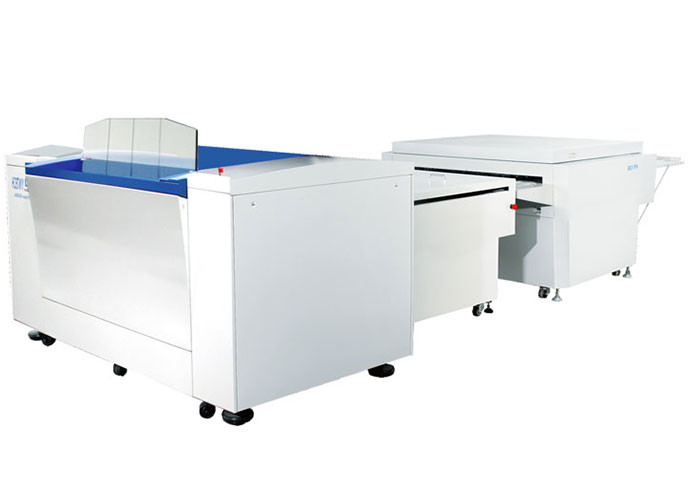

Auto Focus System UV CTP Machine Computer To Plate Printing

Basic Information
Place of Origin: China
Brand Name: Yinber
Certification: ISO9001~2000
Model Number: 9500A/B
Minimum Order Quantity: 1 set
Price: $34000~45800 per set
Packaging Details: Export Wooden Case
Delivery Time: 20-30 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per Year
Workflow Software: Harlequin /prinergy Condition: New
Loading System: Semi-auto/automatic Driver Support: 1-bit Tiff Interface And Direct Workflow Driver,support Cip3/cip4
Plate Required: UV CTCP Plate Plate Thickness: 0.15mm-0.40mm
High Light:

Auto Focus UV CTP Machine

,

Plate Printing UV CTP Machine

,

5.5KVA Computer To Plate Printing Machine

Auto Focus System UV CTP Machine Computer To Plate Printing



UV CTP Machine



Model: Yinber 9500A/B (A: Offline / B: Online)

Yinber 9500A/B UV
No.of Lasers 48-channels
Throughput(1130*800mm) 22 plates/h
Max Format 1160mm*940mm
Mini Format 350mm*400mm
Laser Source 405nm
Resolution 2400DPI (Resolution can be customized)
Loading System Automatic / semi-auto (Optional Auto-loader)
Plates requirement 0.15-0.4mm thermal plates, no brand requirement
Interface 1-bit Tiff interface and direct workflow driver, support CIP3/CIP4
Power AC220V, 50-60Hz 5.5KVA
Work Environment Temperature: 20-25℃, Humility: 40%-80%
Size & Weight 2020mm*1000mm*930mm, 1500kgs

Picture:



Core Technology Advantages:

1. Laser diodes are arranged independently and each laser diodes can be upgraded, replaced and maintained one by one after.

Auto Focus System UV CTP Machine Computer To Plate Printing 0

2. Advanced auto-focus system is adopted, which is suitable for different thickness plates and different brand plates.

Auto Focus System UV CTP Machine Computer To Plate Printing 1

3. Abandoning the traditional lead-screw mode, we adopt the advanced maglev motion control system ensures the accuracy and service life of the machine.

Auto Focus System UV CTP Machine Computer To Plate Printing 2

Why choose us?
The leading core technology, stable product quality, strict control of each quality, timely and efficient after sale service. The whole production process controlled by our own factory.

1. Strict Quality control
All the machines are assembled, tested,and inspected from materials completed by our own factory

2. Our hassle-free services
① We provide comprehensive one-stop services, customer training and satisfied after sales services.
② Online support, video technical support for troubleshooting manufacturing problems, engineers are available to service oversea as necessary.
③ Sold enjoy two years of free equipment warranty and lifetime technical support.

3. Professional team Customer may also ask:
We have teams of experienced technical experts and professionals providing most professional and just-in-time technical consults and services, timely supply of spare parts in place.
If you are still confused how to start printing work, don't worry, contact us and we will help you out!! No mater you are a green hand, we will train you up-to-date technology skills, and keep an eye on your business opportunities. Our friendly and professional team that is able to handle all your inquiries whenever you need.

4. Safety and fast transportation.
