32 channels Laser CTCP UV CTP Machine For Offset Plate Imaging

Basic Information
Place of Origin: China
Brand Name: Yinber
Certification: ISO9001~2000
Model Number: 5300A/B
Minimum Order Quantity: 1 set
Price: $29500~41200 per set
Packaging Details: Export Wooden Case
Delivery Time: 20-30 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per Year
Workflow Software: Harlequin /prinergy Condition: New
Loading System: Semi-auto/automatic Driver Support: 1-bit Tiff Interface And Direct Workflow Driver,support Cip3/cip4
Plate Required: UV CTCP Plate Plate Thickness: 0.15mm-0.40mm
High Light:

Offset Plate Imaging UV CTP Machine

,

32 Channels Laser UV CTP Machine

,

Offset Plate Imaging Laser CTCP Machine

32 Channels Laser CTCP UV CTP Machine For Offset Plate Imaging



Shenzhen Yintech Co.,LTD is a modern high-tech enterprise specialized in pre-press plate making equipment, integrating design, R&D, manufacturing and sales services. Our main products include:

Model: Yinber 5300A/B (A: Offline / B: Online)

Yinber 5300A/B UV
No.of Lasers 32-channels
Throughput(1130*800mm) 22 plates/h
Max Format 925mm*675mm
Mini Format 350mm*400mm
Laser Source 405nm
Resolution 2400DPI (Resolution can be customized)
Loading System Automatic / semi-auto (Optional Auto-loader)
Plates requirement 0.15-0.4mm thermal plates, no brand requirement
Interface 1-bit Tiff interface and direct workflow driver, support CIP3/CIP4
Power AC220V, 50-60Hz 5.5KVA
Work Environment Temperature: 20-25℃, Humility: 40%-80%
Size & Weight 1900mm*1200mm*1000mm, 1300kgs

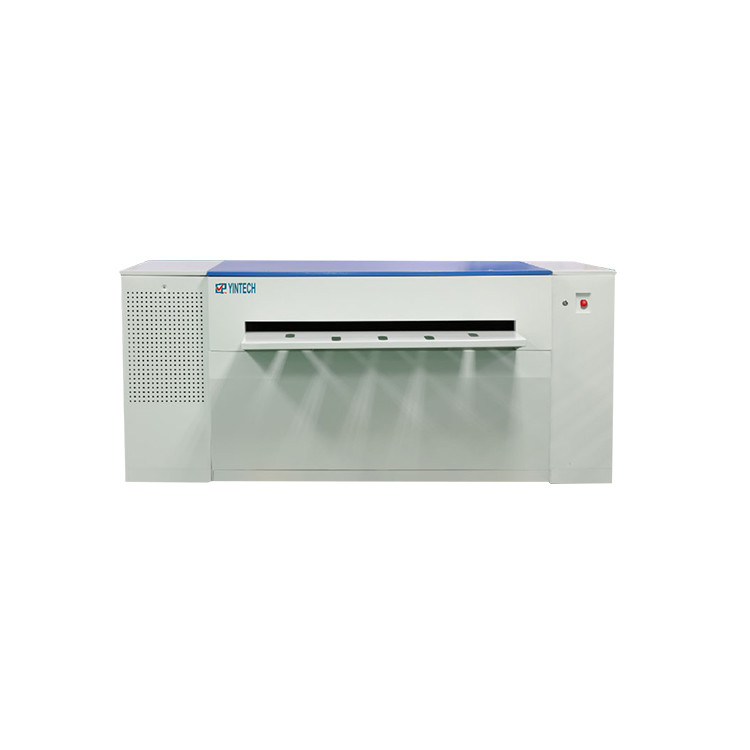

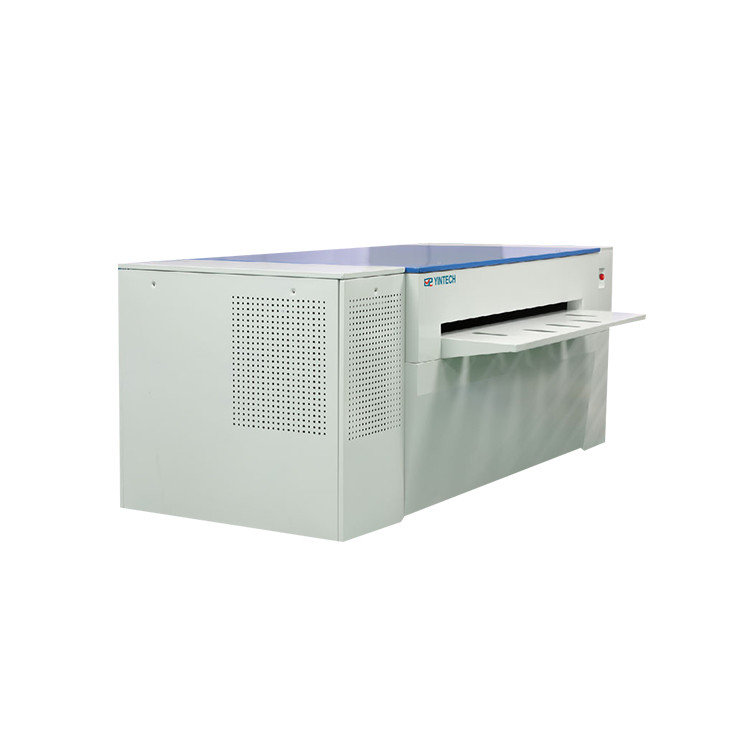

Picture:

32 channels Laser CTCP UV CTP Machine For Offset Plate Imaging 0

Core Technology Advantages:

1. Advanced auto-focus system is adopted, which is suitable for different thickness plates and different brand plates.

32 channels Laser CTCP UV CTP Machine For Offset Plate Imaging 1

2.Non-linear calibration technology ensures the accuracy of the plate making.

32 channels Laser CTCP UV CTP Machine For Offset Plate Imaging 2

3. Adopted high power imported laser from Japan and America, so the laser life is longer than others. Unlike most manufacturers use 1W diodes for CTP machines and 70mj(200mW) diodes for CTCP machines, we use 2W diodes for CTP machines and 120mj(300mW) for CTCP machines.

32 channels Laser CTCP UV CTP Machine For Offset Plate Imaging 3

Why choose us?
The leading core technology, stable product quality, strict control of each quality, timely and efficient after sale service. The whole production process controlled by our own factory.

1. Strict Quality control
All the machines are assembled, tested,and inspected from materials completed by our own factory

2. Our hassle-free services
① We provide comprehensive one-stop services, customer training and satisfied after sales services.
② Online support, video technical support for troubleshooting manufacturing problems, engineers are available to service oversea as necessary.
③ Sold enjoy two years of free equipment warranty and lifetime technical support.

3. Professional team Customer may also ask:
We have teams of experienced technical experts and professionals providing most professional and just-in-time technical consults and services, timely supply of spare parts in place.
If you are still confused how to start printing work, don't worry, contact us and we will help you out!! No mater you are a green hand, we will train you up-to-date technology skills, and keep an eye on your business opportunities. Our friendly and professional team that is able to handle all your inquiries whenever you need.

4. Safety and fast transportation.
