Yinber Thermal Trendsetter CTP Machine 128 Channels 0.4mm

Basic Information
Place of Origin: China
Brand Name: Yinber
Certification: ISO9001~2000
Model Number: 2100-14A/B
Minimum Order Quantity: 1 set
Price: $54400~58800 per set
Packaging Details: Export Wooden Case
Delivery Time: 20-30 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per Year
Workflow Software: Harlequin /prinergy Condition: New
Loading System: Semi-auto/automatic Driver Support: 1-bit Tiff Interface And Direct Workflow Driver,support Cip3/cip4
Plate Required: Thermal CTP Plate Plate Thickness: 0.15mm-0.40mm
Automatic Grade: Manual Loading, Auto Unloading
High Light:

Trendsetter CTP Machine

,

Trendsetter CTP Machine 128 channels

,

Trendsetter CTP Machine 0.4 mm

Shenzhen Yintech Co.,LTD is a modern high-tech enterprise specialized in pre-press plate making equipment, integrating design, R&D, manufacturing and sales services. Our main products include:

Model: Yinber 2100-14A/B (A: Offline / B: Online)

Yinber 2900-14A/B Thermal
No.of Lasers 128-channels
Throughput(1130*800mm) 27 plates/h
Max Format 1180mm*1460mm
Mini Format 508mm*394mm
Laser Source 830nm
Resolution 2400DPI
Loading System manual loading, auto unloading
Plates requirement 0.15-0.4mm thermal plates, no brand requirement
Interface 1-bit Tiff interface and direct workflow driver, support CIP3/CIP4
Power AC220V, 50-60Hz 6.9KW
Work Environment Temperature: 20-25℃, Humility: 40%-80%
Size & Weight 2670mm*1210mm*1730mm, 1235kgs



Picture:

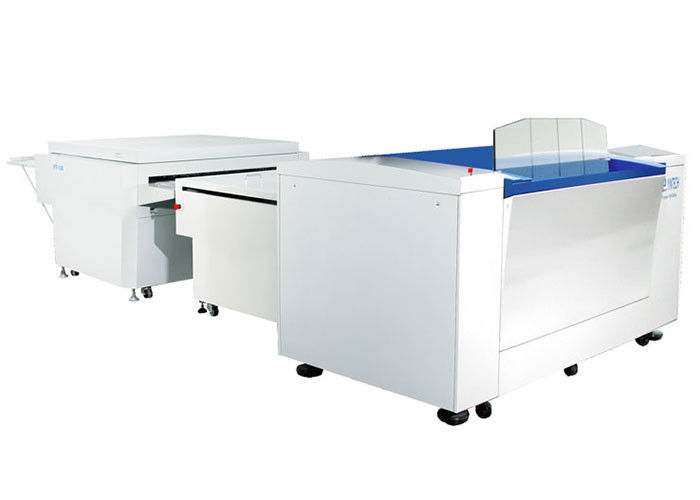

Yinber Thermal Trendsetter CTP Machine 128 Channels 0.4mm 0



Core Technology Advantages:

1. Laser diodes are arranged independently and each laser diodes can be upgraded, replaced and maintained one by one after.

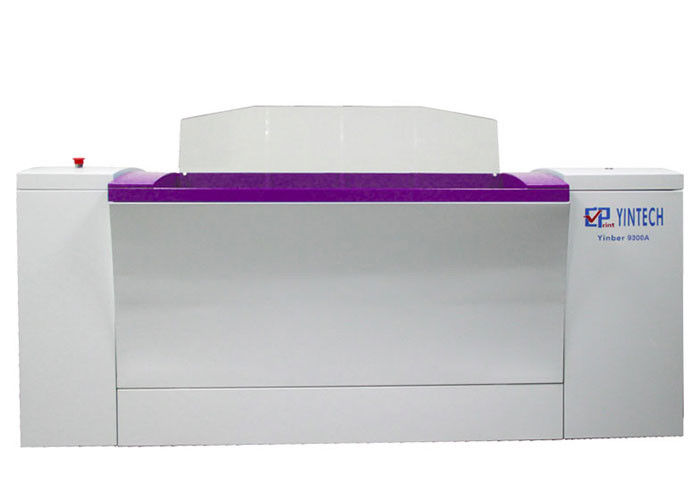

Yinber Thermal Trendsetter CTP Machine 128 Channels 0.4mm 1

2. Non-linear calibration technology ensures the accuracy of the plate making.

Yinber Thermal Trendsetter CTP Machine 128 Channels 0.4mm 2

3. Adopted high power imported laser from Japan and America, so the laser life is longer than others. Unlike most manufacturers use 1W diodes for CTP machines and 70mj(200mW) diodes for CTCP machines, we use 2W diodes for CTP machines and 120mj(300mW) for CTCP machines.

Yinber Thermal Trendsetter CTP Machine 128 Channels 0.4mm 3

Why choose us?
The leading core technology, stable product quality, strict control of each quality, timely and efficient after sale service. The whole production process controlled by our own factory.

1. Strict Quality control
All the machines are assembled, tested,and inspected from materials completed by our own factory

2. Our hassle-free services
① We provide comprehensive one-stop services, customer training and satisfied after sales services.
② Online support, video technical support for troubleshooting manufacturing problems, engineers are available to service oversea as necessary.
③ Sold enjoy two years of free equipment warranty and lifetime technical support.

3. Professional team Customer may also ask:
We have teams of experienced technical experts and professionals providing most professional and just-in-time technical consults and services, timely supply of spare parts in place.
If you are still confused how to start printing work, don't worry, contact us and we will help you out!! No mater you are a green hand, we will train you up-to-date technology skills, and keep an eye on your business opportunities. Our friendly and professional team that is able to handle all your inquiries whenever you need.

4. Safety and fast transportation
