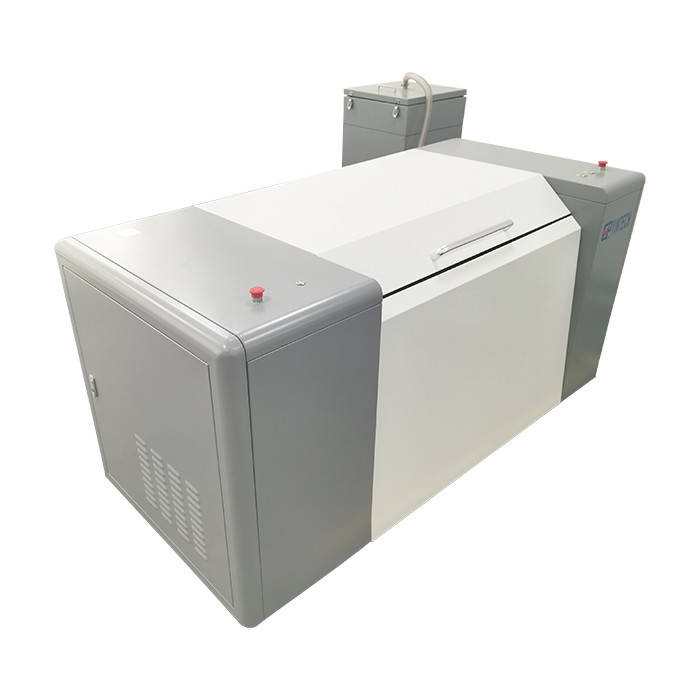

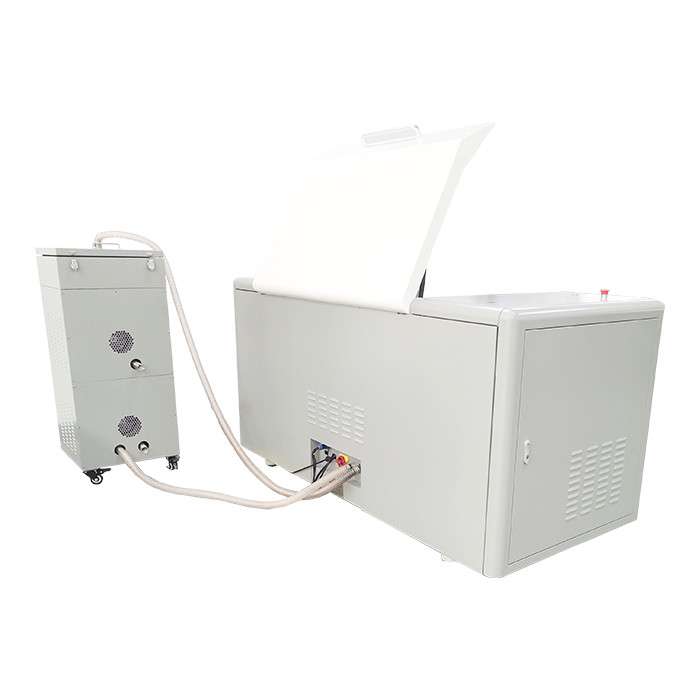

Label Printing Prepress Flexo CTP Machine 0.14mm 32 Channels 4000dpi

Basic Information
Place of Origin: China
Brand Name: Yinber
Certification: ISO9001
Model Number: HDI800
Minimum Order Quantity: 1set
Price: $28200 per set
Packaging Details: Wooden Package
Delivery Time: 20-30 working days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 10 Sets per Month
Automatic Grade: Manual Loading, Manual Unloading No.of Lasers: 32-channels
Plate Thickness: 0.14mm~3.94mm Plate Type: Digital Flexographic Plate, Photopolymer Plate, Ablative Film
Throughput: 2.5m²/hour Application: Plate Making
Output Resolution: 4000dpi Condition: Brand New
High Light:

Label Printing Prepress Flexo CTP Machine

,

32 channels Flexo CTP Machine

,

0.14 mm Flexo CTP Machine

Technical Specification for Flexo CTP machine: HDI800



Type Thermal
Model HDI800
No.of Lasers 32 channels
Throughput 2.5m²/hour
Max/Min Format Max: 800mm*635mm, Min: 100mm*130mm
Laser Source 830nm
Resolution 4000DPI
Loading System Manual loading, manual unloding
Plate Requirement 0.14-3.94mm digital flexographic plate, photopolymer plate, ablative film
Interface 1-bit Fiff interface and direct workflow driver, support CIP3/CIP4
Power AC220V±5%, 50-60Hz, 5.5KW (including vaccum pump and dust removal pump)
Work Environment Temperature: 18-25℃, Humility: 20%-70% (No condensation)
Size & Weight

1770mm*1020mm*900mm, 900kgs



Shenzhen Yintech Co.,LTD is a modern high-tech enterprise specialized in pre-press plate making equipment, integrating design, R&D, manufacturing and sales services. Our main products include:

Core Technology Advantages:

1. The automatic balance of laser energy technology ensures the consistency of laser spot size, and ensures the uniformity, firmness and delicacy of output dots.

Label Printing Prepress Flexo CTP Machine 0.14mm 32 Channels 4000dpi 0



2. Laser diodes are arranged independently and each laser diodes can be upgraded, replaced and maintained one by one after.

Label Printing Prepress Flexo CTP Machine 0.14mm 32 Channels 4000dpi 1



3. Adopted high power imported laser from Japan and America, so the laser life is longer than others. Unlike most manufacturers use 1W diodes for CTP machines and 70mj(200mW) diodes for CTCP machines, we use 2W diodes for CTP machines and 120mj(300mW) for CTCP machines.

Label Printing Prepress Flexo CTP Machine 0.14mm 32 Channels 4000dpi 2



4. We use built-in bearing to support our durm, which brings higher stability and more accuracy when the durm rotates in a high speed, without a big deviation.

Label Printing Prepress Flexo CTP Machine 0.14mm 32 Channels 4000dpi 3



Why choose us?
The leading core technology, stable product quality, strict control of each quality, timely and efficient after sale service. The whole production process controlled by our own factory.



Strict Quality control

All the machines are assembled, tested,and inspected from materials completed by our own factory



Our hassle-free services

We provide comprehensive one-stop services, customer training and satisfied after sales services.

Online support, video technical support for troubleshooting manufacturing problems, engineers are available to service oversea as necessary.

Sold enjoy two years of free equipment warranty and lifetime technical support.



Professional team Customer may also ask:

We have teams of experienced technical experts and professionals providing most professional and just-in-time technical consults and services, timely supply of spare parts in place. If you are still confused how to start printing work, don't worry, contact us and we will help you out!! No mater you are a green hand, we will train you up-to-date technology skills, and keep an eye on your business opportunities. Our friendly and professional team that is able to handle all your inquiries whenever you need.



Safety and fast transportation



FAQ:
Q: Are you a manufacturer or a trading company ?
A: We're professional manufacturer of Pre-press equipments, providing one-stop OEM & ODM service to all partners all over the world.



Q: Are your products conforming to our standards ?
A: Yes, our products can pass the testings as you require, e.g.: CE, RoHS, ISO9001.



Q: How do you control the quality ?
A: We have perfect QC system (IQC, IPQC, FQC, OQC team), professional product engineers and continuous improvement system.



Q: What's the product warranty?
A: We offer 24 months guarantee for all parts.
