1 - Bit Tiff Interface Computer To Plate Equipment Direct Workflow Driver Mono Color

Basic Information
Place of Origin: China
Brand Name: Yinber
Certification: ISO9001~2000
Model Number: 8100A/B
Minimum Order Quantity: 1 set
Price: $42000~53000 per set
Packaging Details: Export Wooden Case
Delivery Time: 20-30 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per Year
Workflow Software: Harlequin /prinergy Condition: New
Loading System: Semi-auto/automatic Driver Support: 1-bit Tiff Interface And Direct Workflow Driver,support Cip3/cip4
Plate Required: Thermal Ctp Plate Plate Thickness: 0.15mm-0.40mm
Automatic Grade: Automatic,Semi-Automatic
High Light:

1Bit Tiff Interface CTP Plate Machine

,

1160mm*940mm CTP Plate Machine

,

Mono color CTP Plate Machine

Shenzhen Yintech Co.,LTD is a modern high-tech enterprise specialized in pre-press plate making equipment, integrating design, R&D, manufacturing and sales services. Our main products include:

Model: Yinber 8100A/B (A: Offline / B: Online)

Yinber 8100A/B Thermal
No.of Lasers 128-channels
Throughput(1130*800mm) 43 plates/h
Max Format 1160mm*940mm
Mini Format 350mm*400mm
Laser Source 830nm
Resolution 2400DPI (Resolution can be customized)
Loading System Automatic, semi-auto (Optional Auto-loader)
Plates requirement 0.15-0.4mm thermal plates, no brand requirement
Interface 1-bit Tiff interface and direct workflow driver, support CIP3/CIP4
Power AC220V, 50-60Hz 5.5KVA
Work Environment Temperature: 20-25℃, Humility: 40%-80%
Size & Weight 2020mm*1000mm*930mm, 1500kgs

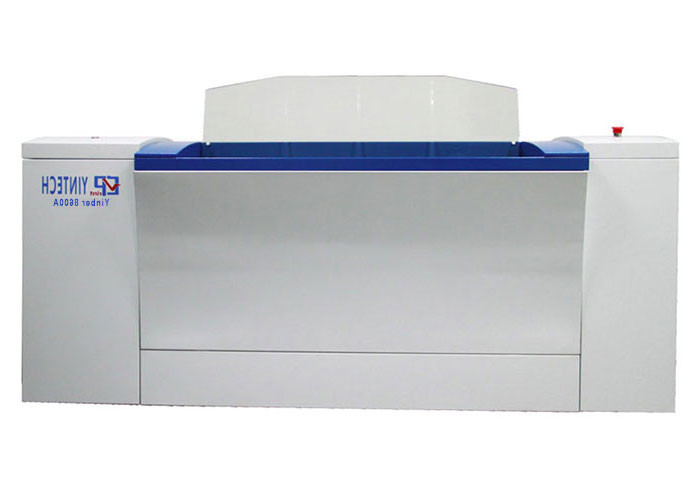

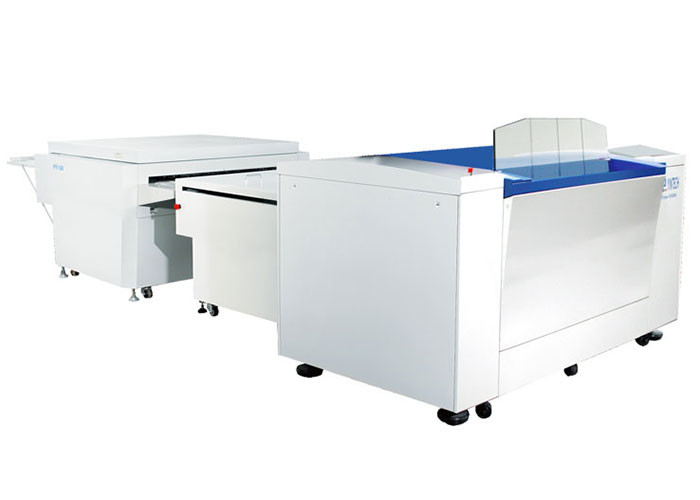

Picture:

1 - Bit Tiff Interface Computer To Plate Equipment Direct Workflow Driver Mono Color 0



Core Technology Advantages:

1. The automatic balance of laser energy technology ensures the consistency of laser spot size, and ensures the uniformity, firmness and delicacy of output dots.

1 - Bit Tiff Interface Computer To Plate Equipment Direct Workflow Driver Mono Color 1

2. Advanced auto-focus system is adopted, which is suitable for different thickness plates and different brand plates.

1 - Bit Tiff Interface Computer To Plate Equipment Direct Workflow Driver Mono Color 2

3. We use top-class components and parts in all our equipments, which brings our products more stable performance and longer life. Fuji motor from Japan / Thermal diodes from USA / UV diodes from Japan / Naglev system and bearing from Germany / Sensors from Spain.

1 - Bit Tiff Interface Computer To Plate Equipment Direct Workflow Driver Mono Color 3



FAQ:
Q: Are you a manufacturer or a trading company ?
A: We're professional manufacturer of Pre-press equipments, providing one-stop OEM & ODM service to all partners all over the world.



Q: Are your products conforming to our standards ?
A: Yes, our products can pass the testings as you require, e.g.: CE, RoHS, ISO9001.



Q: How do you control the quality ?
A: We have perfect QC system (IQC, IPQC, FQC, OQC team), professional product engineers and continuous improvement system.



Q: What's the product warranty?
A: We offer 24 months guarantee for all parts.
