| Place of Origin: | China |
|---|---|
| Brand Name: | FuCai |
| Certification: | ISO9001 |
| Model Number: | FP-100 |
| Minimum Order Quantity: | 3000m² |
| Price: | USD2.60-2.90 / m² |

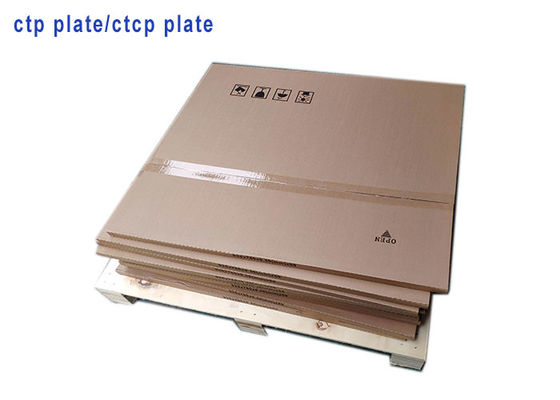

| Packaging Details: | Export carton with pallets for sea shipping well support the forklift, about 30,000m² per 20 GP. |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000m² per month |
| Use: | Offset Printing | Type: | Double Layer Thermal CTP Plate |
|---|---|---|---|
| Style: | Positive,Thermal | Thickness: | 0.15mm 0.25mm 0.30mm |
| Color: | Blue | Run Length: | 80000~100000 Impressions |
| Application: | Commercial Printing,Offset Printing,Newpaper Printing | Resolution: | 1%-99%@200lpi |

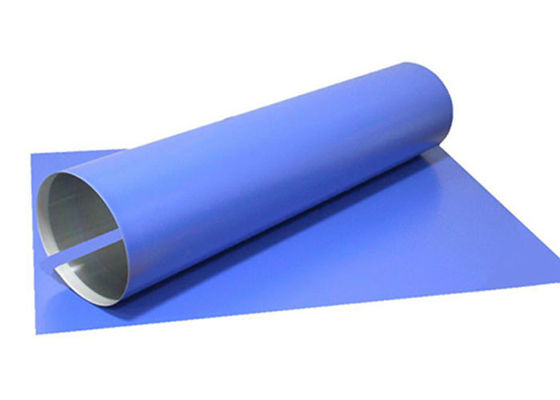

| Product Name: | CTP Plate/CTP Thermal Plate | Spectral Sensitivity: | 830 Nm |
| Developing Time: | 20 - 30sec | ||
| Highlight: | 0.30mm CTP Thermal Plate,200LPI CTP Thermal Plate,CTP plates for offset printing |
||
| FUCAI CTP Plate(Thermal VS UV PS Plate) | ||
 |
||
| Technical specification | ||
| Products Type | (FP-100) Positive Thermal PS Plates |
(FP-200) UV PS Plates |
| Durable Rate | 50,000~100,000 prints; >=100,000 after baking |
>=100,000 prints |
| Thickness | 0.27mm, 0.15mm | 0.27mm, 0.15mm |
| Sensitive wavelength | 830nm | 405nm |
| Laser power | 110~150mj/cm | 50~70mj/cm |
| Resolution | 1%~99%@200lpi | 1%~99%@200lpi |
| Baking condition | 230˚C-250˚C, 5~8 minutes (by using professional plate baking glue) |
230˚C-250˚C, 5~8 minutes (by using professional plate baking glue) |
| Safe lighting | 2 hours under fluorescent lamp, 12 hours under yellow light |
2 hours under fluorescent lamp, 12 hours under yellow light |
| Storage condition | Store in dry and cool place, store in 5˚C~30˚C, Humility <55% |
Store in dry and cool place, store in 5˚C~30˚C, Humility <55% |
| Shelf life | 12 months | 12 months |
| Developing time | 20sec~30sec | 20sec~30sec |
| Productivity | 1800m2~2500m2 | 1800m2~2500m2 |
