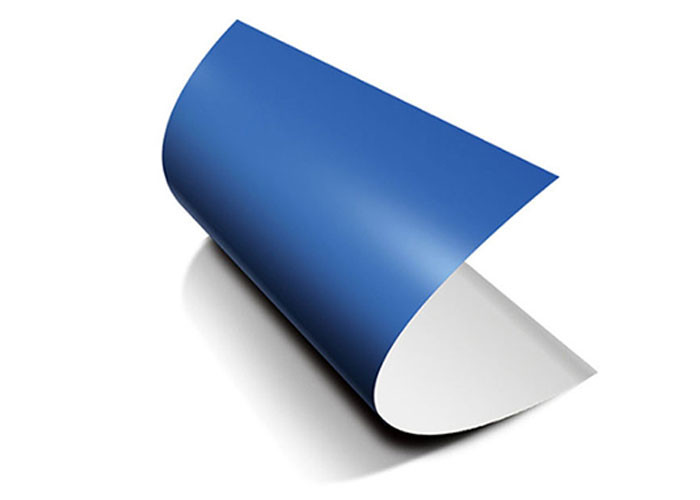

Positive CTP Plate Double Layer Coating For Commercial Printing

Basic Information
Place of Origin: China
Brand Name: FuCai
Certification: ISO9001
Model Number: FP-100
Minimum Order Quantity: 3000m²
Price: USD2.60-2.90 / m²

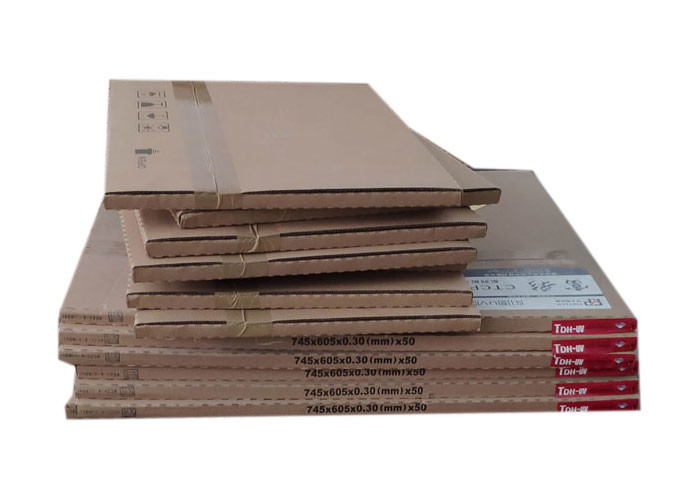

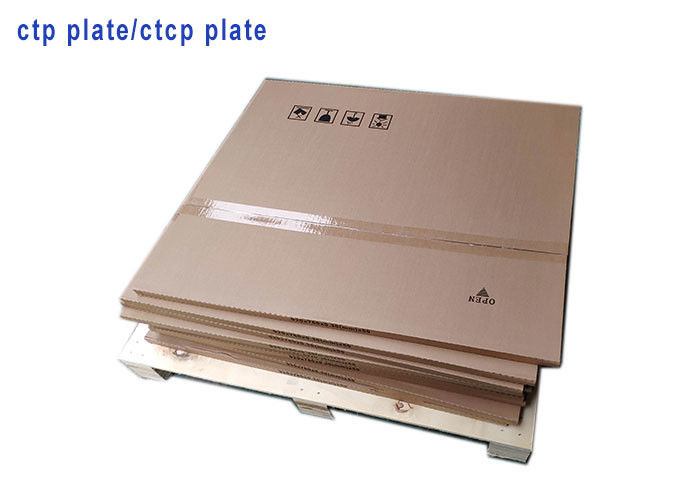

Packaging Details: Export carton with pallets for sea shipping well support the forklift, about 30,000m² per 20 GP.
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000m² per month
Use: Offset Printing Type: Double Layer Thermal CTP Plate
Style: Positive,Thermal Thickness: 0.15mm 0.25mm 0.30mm
Color: Blue Run Length: 80000~100000 Impressions
Application: Commercial Printing,Offset Printing,Newpaper Printing Resolution: 1%-99%@200lpi
Product Name: CTP Plate/CTP Thermal Plate Spectral Sensitivity: 830 Nm
Developing Time: 20 - 30sec
High Light:

Double Layer Coating CTP Plate

,

Commercial Printing CTP Plate

,

ISO9001 CTP Plate

FUCAI CTP Plate(Thermal VS UV PS Plate)
Positive CTP Plate Double Layer Coating For Commercial Printing 0
Technical specification
Products Type (FP-100)
Positive Thermal PS Plates
(FP-200)
UV PS Plates
Durable Rate 50,000~100,000 prints;
>=100,000 after baking
>=100,000 prints
Thickness 0.27mm, 0.15mm 0.27mm, 0.15mm
Sensitive wavelength 830nm 405nm
Laser power 110~150mj/cm 50~70mj/cm
Resolution 1%~99%@200lpi 1%~99%@200lpi
Baking condition 230˚C-250˚C, 5~8 minutes
(by using professional plate baking glue)
230˚C-250˚C, 5~8 minutes
(by using professional plate baking glue)
Safe lighting 2 hours under fluorescent lamp,
12 hours under yellow light
2 hours under fluorescent lamp,
12 hours under yellow light
Storage condition Store in dry and cool place, store in 5˚C~30˚C,
Humility <55%
Store in dry and cool place, store in 5˚C~30˚C,
Humility <55%
Shelf life 12 months 12 months
Developing time 20sec~30sec 20sec~30sec
Productivity 1800m2~2500m2 1800m2~2500m2
