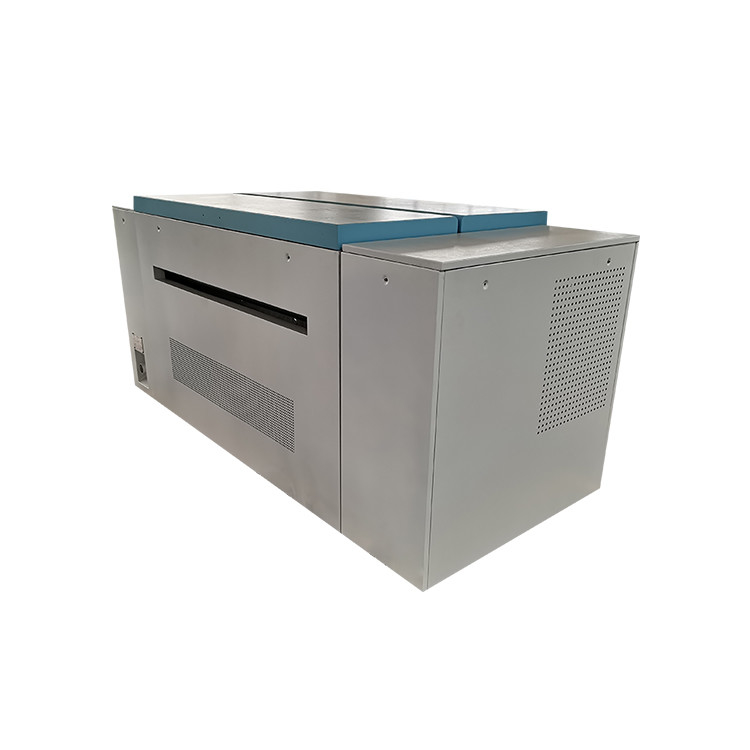

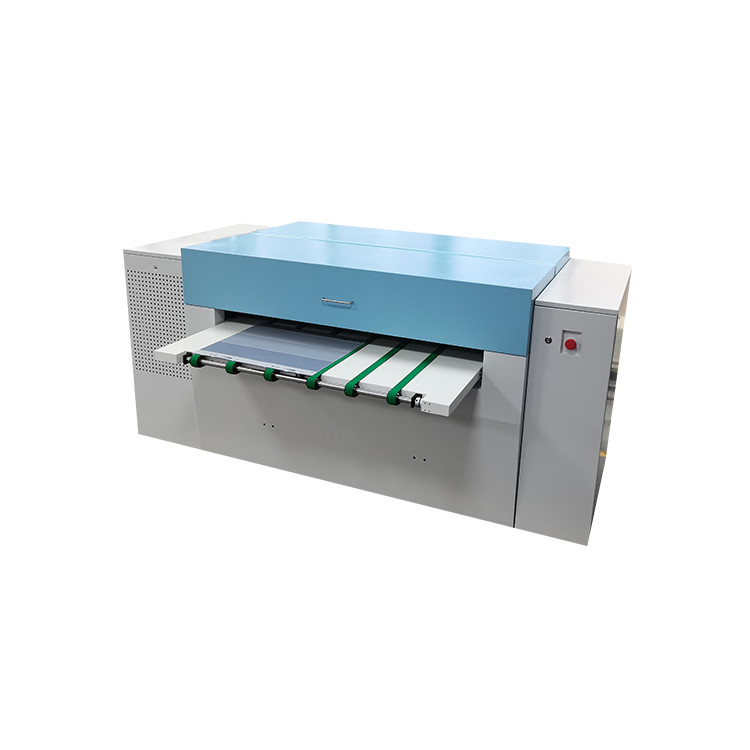

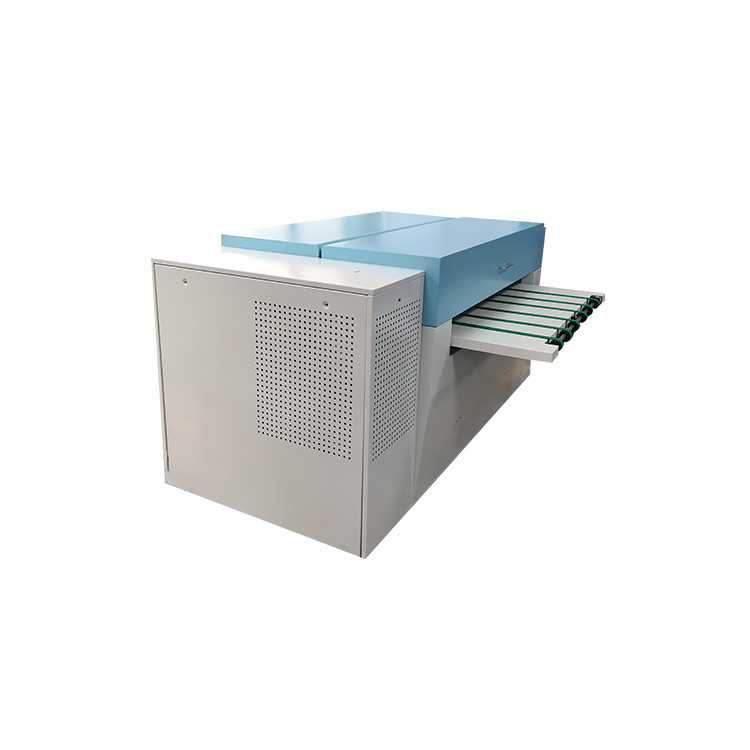

11 PPH Thermal CTP Machine 64 Channels Lasers 830 Nm Automatic Balance Yinber1764
Product Details
| Rip/workflow Software: | Harlequin / Prinergy | Laser Source Type: | Thermal / 830nm |
|---|---|---|---|
| Condition: | Brand New | Type: | Plate Making Machine |
| Resolution: | 2400DPI (can Be Customized) | ||
| Highlight |
11 PPH Thermal CTP Machine,automatic balance thermal CTP Machine |
||
Product Description
| Very Large Format CTP/Thermal CTP plate making machine | ||
 |
||
| Technical specification | ||
| Model | 1764 | |
| No. of Lasers | 64 | |
| Throughput (1130x800mm) (plates/hour) |
11 PPH | |
| Max./Min. Format | Max.: 1460mmx1650mm Min.: 508mmx394mm | |
| Laser Source | 830 nm | |
| Resolution | 2400 dpi | |
| Loading System | Manual loading, auto unloading | |
| Plates Requirement | 0.15-0.4mm, Thermal plates, no brand requirement | |
| CTP Interface | 1-bit Tiff interface and direct workflow driver, support CIP3/CIP4 | |
| Power | AC220V,50-60Hz 8.0KW | |
| Environment | Temperature: 20-25ºC Humidity: 40%-80% | |
| Size & Weight | Size: 2800mmx1320mmx1780mm Weight: 1550kg | |
| Workflow software | RIP Harlequin & Workflow Prinergy | |
Why choose us?
Core Technology Advantages:
1.The marble stone working platform ensures that the machine still keeps high precision and high stability under the condition of long working time.
2. The automatic balance of laser energy technology ensures the consistency of laser spot size, and ensures the uniformity, firmness and delicacy of output dots.
3.Laser diodes are arranged independently and each laser diodes can be upgraded, replaced and maintained one by one after.
4. Advanced auto-focus system is adopted, which is suitable for different thickness plates and different brand plates.
5.Abandoning the traditional lead-screw mode, we adopt the advanced maglev motion control system ensures the accuracy and service life of the machine.
6.Non-linear Calibration technology ensures the accuracy of the plate making.
7. Adopted high power imprted laser from Japan and America, so the laser life is longer than others. Unlike most manufacturers use 1W diodes for CTP machines and 70mj (200mW) diodes for CTCP machines, we use 2W diodes for CTP machines and 120mj (300mW) for CTCP machines.
8.We use built-in bearing to support our drum, which brings higher stability and more accuracy when the drum rotates in a high speed, without a big deviation.
9. We use top-class components and parts in all our equipment, which brings our products more stable performance and longer life.
Fuji motor from Japan / Thermal diodes from USA / UV diodes from Japan / Naglev system and bearings from Germany / Sensors from Spain.
10.workflow and RIP software - Prinergy & Harlequin
11. "Remote diagnosis system" through "Teamviewer", our technicians can share data with customers' computer in real-time, thus to diagnose their CTP equipment.
Shenzhen Yintech Co.,Ltd is one of top leading CTP flexo plate making machine manufacturer, we produce and supply ctp plate making machine, ctcp plate making machine, and flexo plate making machine, we have professional CTP flexo plate making machine factory,.
