96 Channels Lasers Thermal CTP Machine 21 PPH 2400 DPI AC220V 6.9KW Yinber1496

Basic Information
Place of Origin: China
Brand Name: Yinber
Certification: ISO9001~2000
Model Number: 1496
Minimum Order Quantity: 1 set
Price: $50000~55000 per set
Packaging Details: Export Wooden Case for sea shipping well support the forklift, 5.0 CBM/set , 6 sets /20 GP.
Delivery Time: 20-30 days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 300 sets per Year
Rip/workflow Software: Harlequin / Prinergy Laser Source Type: Thermal / 830nm
Condition: Brand New Type: Plate Making Machine
Resolution: 2400DPI (can Be Customized)
High Light:

96 Channels thermal CTP Machine

,

high power thermal CTP Machine

Large Format CTP/Thermal CTP plate making machine

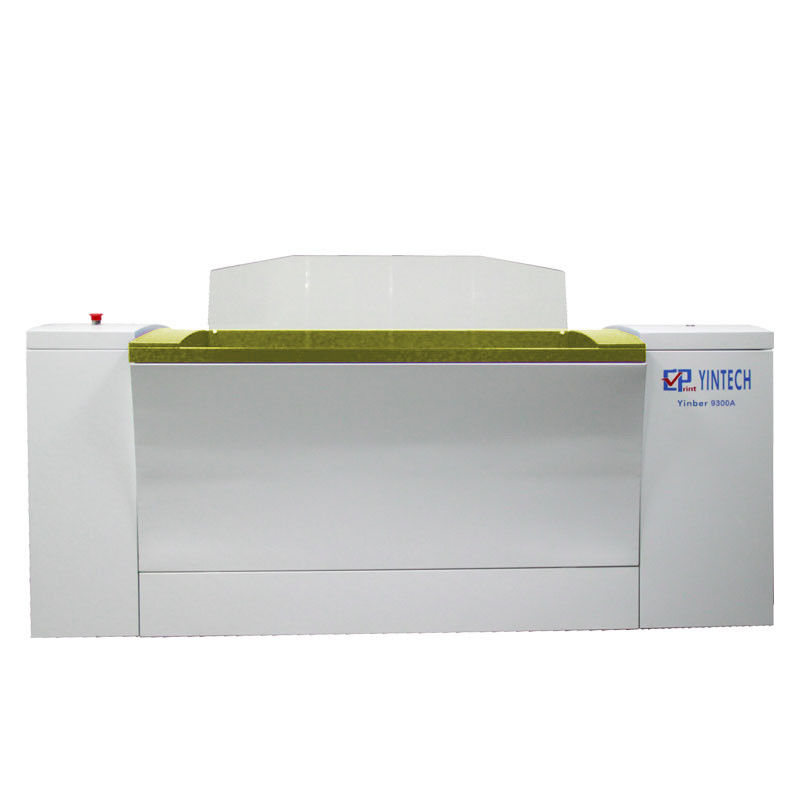

96 Channels Lasers Thermal CTP Machine 21 PPH 2400 DPI AC220V 6.9KW Yinber1496 0
Technical specification
Model 1496
No. of Lasers 96
Throughput (1130x800mm)
(plates/hour)
21 PPH
Max./Min. Format Max.: 1180mmx1460mm Min.: 508mmx394mm
Laser Source 830 nm
Resolution 2400 dpi
Loading System Manual loading, auto unloading
Plates Requirement  0.15-0.4mm, Thermal plates, no brand requirement
CTP Interface 1-bit Tiff interface and direct workflow driver, support CIP3/CIP4
Power AC220V,50-60Hz 6.9KW
Environment Temperature: 20-25ºC Humidity: 40%-80%
Size & Weight Size: 2670mmx1210mmx1730mm Weight: 1235kg
Workflow software RIP Harlequin & Workflow Prinergy



Why choose us?

Core Technology Advantages:



1.The marble stone working platform ensures that the machine still keeps high precision and high stability under the condition of long working time.

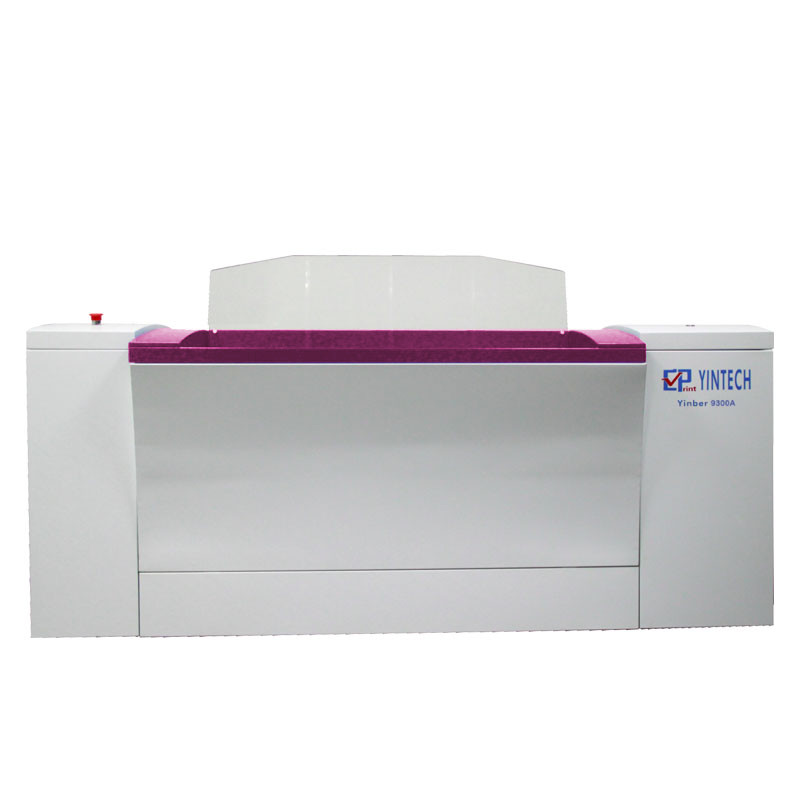

96 Channels Lasers Thermal CTP Machine 21 PPH 2400 DPI AC220V 6.9KW Yinber1496 1



2. The automatic balance of laser energy technology ensures the consistency of laser spot size, and ensures the uniformity, firmness and delicacy of output dots.

96 Channels Lasers Thermal CTP Machine 21 PPH 2400 DPI AC220V 6.9KW Yinber1496 2



3.Laser diodes are arranged independently and each laser diodes can be upgraded, replaced and maintained one by one after.

96 Channels Lasers Thermal CTP Machine 21 PPH 2400 DPI AC220V 6.9KW Yinber1496 3



4. Advanced auto-focus system is adopted, which is suitable for different thickness plates and different brand plates.

96 Channels Lasers Thermal CTP Machine 21 PPH 2400 DPI AC220V 6.9KW Yinber1496 4



5.Abandoning the traditional lead-screw mode, we adopt the advanced maglev motion control system ensures the accuracy and service life of the machine.

96 Channels Lasers Thermal CTP Machine 21 PPH 2400 DPI AC220V 6.9KW Yinber1496 5



6.Non-linear Calibration technology ensures the accuracy of the plate making.

96 Channels Lasers Thermal CTP Machine 21 PPH 2400 DPI AC220V 6.9KW Yinber1496 6



7. Adopted high power imprted laser from Japan and America, so the laser life is longer than others. Unlike most manufacturers use 1W diodes for CTP machines and 70mj (200mW) diodes for CTCP machines, we use 2W diodes for CTP machines and 120mj (300mW) for CTCP machines.

96 Channels Lasers Thermal CTP Machine 21 PPH 2400 DPI AC220V 6.9KW Yinber1496 7



8.We use built-in bearing to support our drum, which brings higher stability and more accuracy when the drum rotates in a high speed, without a big deviation.

96 Channels Lasers Thermal CTP Machine 21 PPH 2400 DPI AC220V 6.9KW Yinber1496 8



9. We use top-class components and parts in all our equipment, which brings our products more stable performance and longer life.

Fuji motor from Japan / Thermal diodes from USA / UV diodes from Japan / Naglev system and bearings from Germany / Sensors from Spain.

96 Channels Lasers Thermal CTP Machine 21 PPH 2400 DPI AC220V 6.9KW Yinber1496 9



10.workflow and RIP software - Prinergy & Harlequin

96 Channels Lasers Thermal CTP Machine 21 PPH 2400 DPI AC220V 6.9KW Yinber1496 10



11. "Remote diagnosis system" through "Teamviewer", our technicians can share data with customers' computer in real-time, thus to diagnose their CTP equipment.

96 Channels Lasers Thermal CTP Machine 21 PPH 2400 DPI AC220V 6.9KW Yinber1496 11





Shenzhen Yintech Co.,Ltd is one of top leading CTP flexo plate making machine manufacturer, we produce and supply ctp plate making machine, ctcp plate making machine, and flexo plate making machine, we have professional CTP flexo plate making machine factory,.
