830nm CTP Plate Making Machine 128 Channels Lasers 43 Throughput/H Auto Focus System

Basic Information
Place of Origin: China
Brand Name: Yinber
Certification: ISO9001~2000
Model Number: 8100B
Minimum Order Quantity: 1 set
Price: $39000~49000 per set
Packaging Details: Export Wooden Case for sea shipping well support the forklift, 5.0 CBM/set , 6 sets /20 GP.
Delivery Time: 20-30 days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 300 sets per Year
Rip/workflow Software: Harlequin / Prinergy Laser Source Type: Thermal / 830nm
Automatic Grade: Automatic / Semi-Automatic Condition: Brand New
Type: Plate Making Machine Resolution: 2400DPI (can Be Customized)
High Light:

128 Channels CTP Plate Making Machine

,

auto focus CTP Plate Making Machine

Automatic CTP/Thermal CTP plate making machine

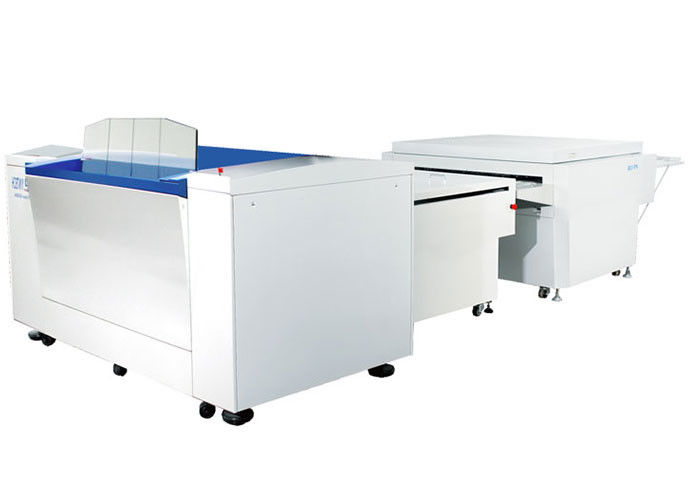

830nm CTP Plate Making Machine 128 Channels Lasers 43 Throughput/H Auto Focus System 0
Technical specification
Model 8100B
No. of Lasers 128
Throughput
(1130x800mm)
(plates/hour)
43 PPH
Max./Min. Format Max.: 1160mmx940mm Min.: 350mmx400mm
Laser Source 830 nm
Resolution 2400 dpi (Resolution can be customized, up to 8000dpi maximum)
Loading System Automatic, Semi-Auto ( Optional Auto-loader)
Plates Requirement  0.15-0.4mm, Thermal plates, no brand requirement
CTP Interface 1-bit Tiff interface and direct workflow driver, support CIP3/CIP4
Power AC220V,50-60Hz 5.5KVA
Environment Temperature: 20-25ºC Humidity: 40%-80%
Size & Weight Size: 2020mmx1000mmx930mm Weight: 1500kg
Workflow software RIP Harlequin & Workflow Prinergy



Why choose us?

Core Technology Advantages:



1.The marble stone working platform ensures that the machine still keeps high precision and high stability under the condition of long working time.

830nm CTP Plate Making Machine 128 Channels Lasers 43 Throughput/H Auto Focus System 1



2. The automatic balance of laser energy technology ensures the consistency of laser spot size, and ensures the uniformity, firmness and delicacy of output dots.

830nm CTP Plate Making Machine 128 Channels Lasers 43 Throughput/H Auto Focus System 2



3.Laser diodes are arranged independently and each laser diodes can be upgraded, replaced and maintained one by one after.

830nm CTP Plate Making Machine 128 Channels Lasers 43 Throughput/H Auto Focus System 3



4. Advanced auto-focus system is adopted, which is suitable for different thickness plates and different brand plates.

830nm CTP Plate Making Machine 128 Channels Lasers 43 Throughput/H Auto Focus System 4



5.Abandoning the traditional lead-screw mode, we adopt the advanced maglev motion control system ensures the accuracy and service life of the machine.

830nm CTP Plate Making Machine 128 Channels Lasers 43 Throughput/H Auto Focus System 5



6.Non-linear Calibration technology ensures the accuracy of the plate making.

830nm CTP Plate Making Machine 128 Channels Lasers 43 Throughput/H Auto Focus System 6



7. Adopted high power imprted laser from Japan and America, so the laser life is longer than others. Unlike most manufacturers use 1W diodes for CTP machines and 70mj (200mW) diodes for CTCP machines, we use 2W diodes for CTP machines and 120mj (300mW) for CTCP machines.

830nm CTP Plate Making Machine 128 Channels Lasers 43 Throughput/H Auto Focus System 7



8.We use built-in bearing to support our drum, which brings higher stability and more accuracy when the drum rotates in a high speed, without a big deviation.

830nm CTP Plate Making Machine 128 Channels Lasers 43 Throughput/H Auto Focus System 8



9. We use top-class components and parts in all our equipment, which brings our products more stable performance and longer life.

Fuji motor from Japan / Thermal diodes from USA / UV diodes from Japan / Naglev system and bearings from Germany / Sensors from Spain.

830nm CTP Plate Making Machine 128 Channels Lasers 43 Throughput/H Auto Focus System 9



10.workflow and RIP software - Prinergy & Harlequin

830nm CTP Plate Making Machine 128 Channels Lasers 43 Throughput/H Auto Focus System 10



11. "Remote diagnosis system" through "Teamviewer", our technicians can share data with customers' computer in real-time, thus to diagnose their CTP equipment. .

830nm CTP Plate Making Machine 128 Channels Lasers 43 Throughput/H Auto Focus System 11





Shenzhen Yintech Co.,Ltd is one of top leading CTP flexo plate making machine manufacturer, we produce and supply ctp plate making machine, ctcp plate making machine, and flexo plate making machine, we have professional CTP flexo plate making machine factory,.
