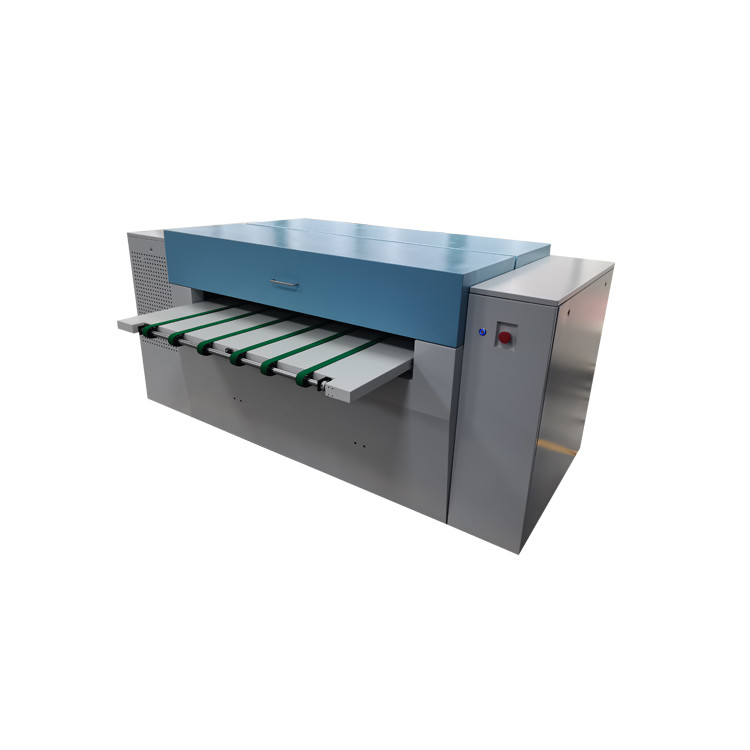

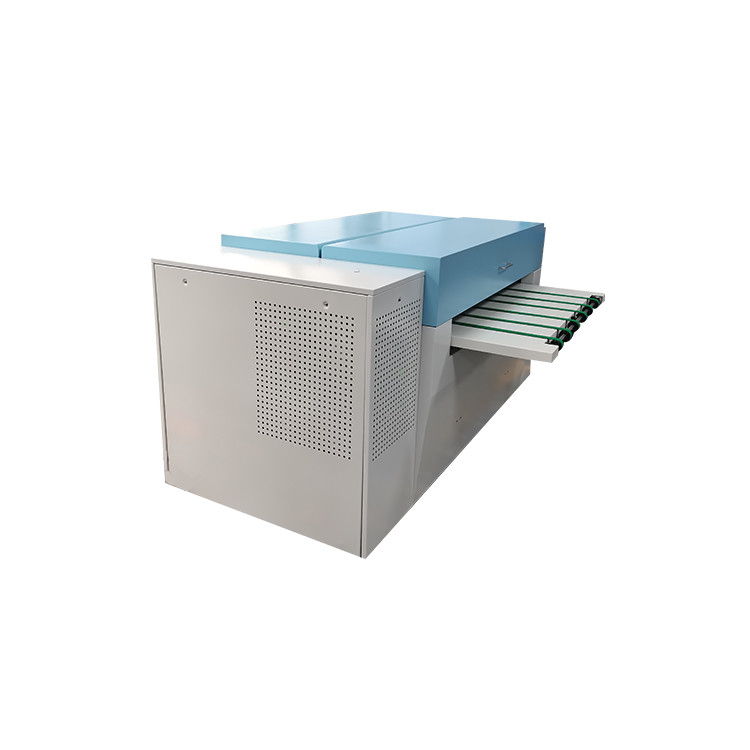

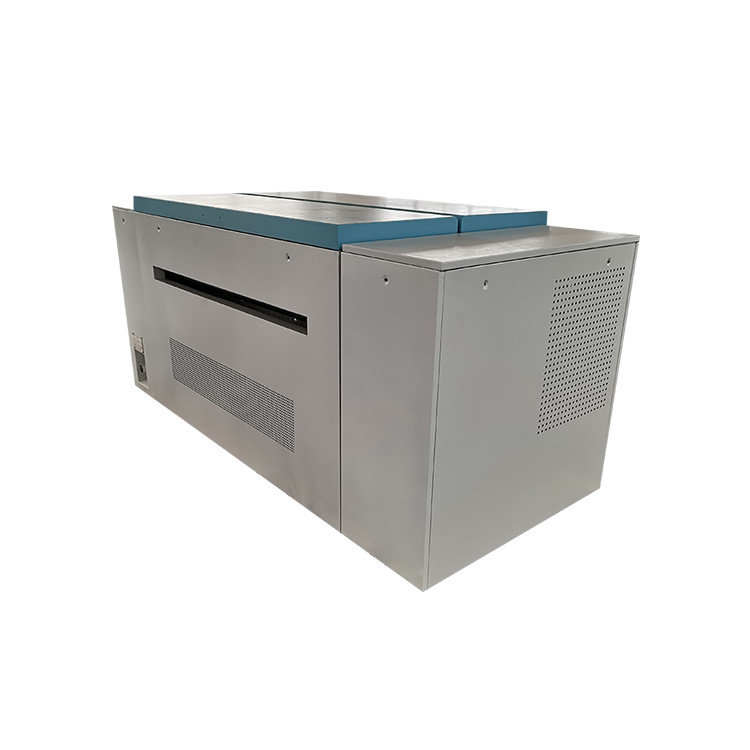

Commercial Thermal CTP Machine 32 Channels Lasers 8300B With 17 Throughput/H 2400DPI

Basic Information
Place of Origin: China
Brand Name: Yinber
Certification: ISO9001~2000
Model Number: 8300B
Minimum Order Quantity: 1 set
Price: $28000~38000 per set
Packaging Details: Export Wooden Case for sea shipping well support the forklift, 5.0 CBM/set , 6 sets /20 GP.
Delivery Time: 20-30 days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 300 sets per Year
Rip/workflow Software: Harlequin / Prinergy Laser Source Type: Thermal / 830nm
Automatic Grade: Automatic / Semi-Automatic Condition: Brand New
Type: Plate Making Machine Resolution: 2400DPI (can Be Customized)
High Light:

Commercial thermal CTP Machine

,

32 Channels thermal CTP Machine

,

Thermal CTP plate making machine

Automatic CTP/Thermal CTP plate making machine
Commercial Thermal CTP Machine 32 Channels Lasers 8300B With 17 Throughput/H 2400DPI 0
Technical specification
Model 8300B
No. of Lasers 32
Throughput
(1130x800mm)
(plates/hour)
17 PPH
Max./Min. Format Max.: 1160mmx940mm Min.: 350mmx400mm
Laser Source 830 nm
Resolution 2400 dpi (Resolution can be customized, up to 8000dpi maximum)
Loading System Automatic, Semi-Auto ( Optional Auto-loader)
Plates Requirement  0.15-0.4mm, Thermal plates, no brand requirement
CTP Interface 1-bit Tiff interface and direct workflow driver, support CIP3/CIP4
Power AC220V,50-60Hz 5.5KVA
Environment Temperature: 20-25ºC Humidity: 40%-80%
Size & Weight Size: 2020mmx1000mmx930mm Weight: 1500kg
Workflow software RIP Harlequin & Workflow Prinergy



Why choose us?

Core Technology Advantages:



1.The marble stone working platform ensures that the machine still keeps high precision and high stability under the condition of long working time.

Commercial Thermal CTP Machine 32 Channels Lasers 8300B With 17 Throughput/H 2400DPI 1



2. The automatic balance of laser energy technology ensures the consistency of laser spot size, and ensures the uniformity, firmness and delicacy of output dots.

Commercial Thermal CTP Machine 32 Channels Lasers 8300B With 17 Throughput/H 2400DPI 2



3.Laser diodes are arranged independently and each laser diodes can be upgraded, replaced and maintained one by one after.

Commercial Thermal CTP Machine 32 Channels Lasers 8300B With 17 Throughput/H 2400DPI 3



4. Advanced auto-focus system is adopted, which is suitable for different thickness plates and different brand plates.

Commercial Thermal CTP Machine 32 Channels Lasers 8300B With 17 Throughput/H 2400DPI 4



5.Abandoning the traditional lead-screw mode, we adopt the advanced maglev motion control system ensures the accuracy and service life of the machine.

Commercial Thermal CTP Machine 32 Channels Lasers 8300B With 17 Throughput/H 2400DPI 5



6.Non-linear Calibration technology ensures the accuracy of the plate making.

Commercial Thermal CTP Machine 32 Channels Lasers 8300B With 17 Throughput/H 2400DPI 6



7. Adopted high power imprted laser from Japan and America, so the laser life is longer than others. Unlike most manufacturers use 1W diodes for CTP machines and 70mj (200mW) diodes for CTCP machines, we use 2W diodes for CTP machines and 120mj (300mW) for CTCP machines.

Commercial Thermal CTP Machine 32 Channels Lasers 8300B With 17 Throughput/H 2400DPI 7



8.We use built-in bearing to support our drum, which brings higher stability and more accuracy when the drum rotates in a high speed, without a big deviation.

Commercial Thermal CTP Machine 32 Channels Lasers 8300B With 17 Throughput/H 2400DPI 8



9. We use top-class components and parts in all our equipment, which brings our products more stable performance and longer life.

Fuji motor from Japan / Thermal diodes from USA / UV diodes from Japan / Naglev system and bearings from Germany / Sensors from Spain.

Commercial Thermal CTP Machine 32 Channels Lasers 8300B With 17 Throughput/H 2400DPI 9



10.workflow and RIP software - Prinergy & Harlequin

Commercial Thermal CTP Machine 32 Channels Lasers 8300B With 17 Throughput/H 2400DPI 10



11. "Remote diagnosis system" through "Teamviewer", our technicians can share data with customers' computer in real-time, thus to diagnose their CTP equipment. .

Commercial Thermal CTP Machine 32 Channels Lasers 8300B With 17 Throughput/H 2400DPI 11





Shenzhen Yintech Co.,Ltd is one of top leading CTP flexo plate making machine manufacturer, we produce and supply ctp plate making machine, ctcp plate making machine, and flexo plate making machine, we have professional CTP flexo plate making machine factory,.
