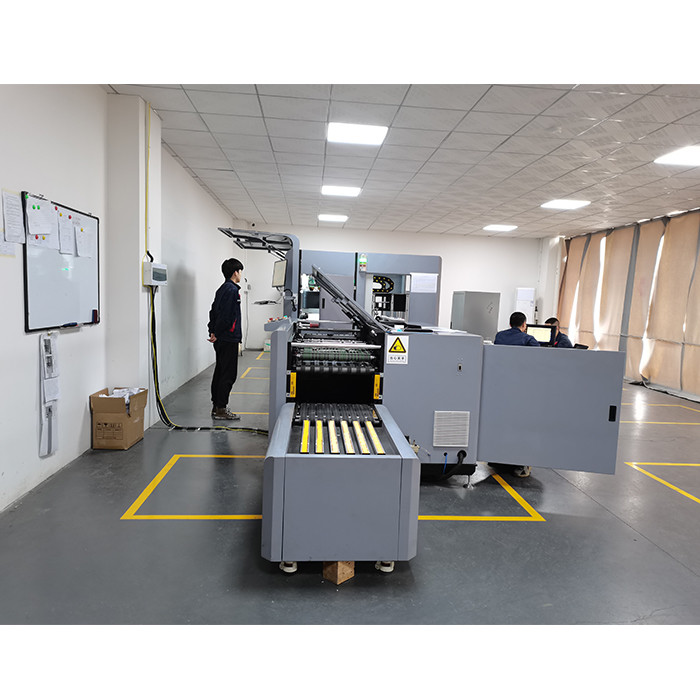

Roll To Roll High Speed Inkjet Digital Web Printing Machine

Basic Information
Place of Origin: China
Brand Name: Yintech
Certification: NA
Model Number: DMP560
Minimum Order Quantity: 1
Price: $200,000~230,000
Packaging Details: wooden packing
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Sets per Month
Applicable Industries: Printing Shops, Advertising Company Automatic Grade: Automatic
Function: Digital Printing Printing Method: Single Color Double-sided
Resolution: 600x600dpi/2bit, 600x1200dpi/2bit Maximum Printing Speed: 100 M/min
Maximum Paper Width: 560mm Maximum Imaging Width: 540mm
Paper Type: Digital Printing Paper, Inkjet Coated Paper, Newspaper
High Light:

infrared drying inkjet digital printing machine

,

532mm inkjet digital printing machine

,

Colour Monochrome Digital Inkjet Printer

As the world's leading packaging prepress application, DPM series of prepress productivity tools has evolved from Yintech’s 10 years of accumulated research and development experience in the graphic arts. DPM series offers professional trapping tools, specialized step & repeat functions for packaging as well as a series of editing tools enabling prepress operators to boost efficiency and produce higher quality work.


ModelDMP540
Printing methodMonochrome duplex / Dual-color / CMYK duplex
Resolution600x600dpi/2bit, 600x1200dpi/2bit (maximum)
Maximum printing speed100 m/min
Overprint accuracy of front and back±0.3mm
SprinklersOn-demand piezoelectric sprinklers for industrial use
Ink typewater-based pigment ink, dye ink
Drying methodinfrared drying
Operation interfaceVisual operation interface
Maximum media width560mm
Maximum printing width540mm
Paper weight45-165 g/m²
Paper typeOffset paper, newspaper, inkjet coated paper digital printing paper, etc.
Maximum roll diameter1.27 meters
Mechanical platform380Vac, 15KW Max
Infrared drying380Vac, 1-35KW Max
Digital control system220Vac, 6KW Max
Temperature range22.5-27.5°C, best working temperature 25°C
Humidity range40-70%RH, best working humidity 50-60%RH


Convenient and easy to use
• Print immediately after power-on, without wasting paper for start up.
• The output software can do continuous printing and inserting printing, which is convenient for arranging small jobs to be printed at any time, without stopping the machine and wasting paper, improving efficiency and saving production costs.
• By the concept of system engineering, the whole machine has a high degree of automation and better overall interoperability, which greatly reduces the number of operators, the difficulty of personnel management and the continuous increase of labor costs. Low consumption, high efficiency, stable and reliable operation.


Low production cost
• The maximum power of the inkjet system is 11.5KW, the maximum power of the cutting system is 22KW, and the maximum power of the entire system is 33.5KW. The actual production is about 12KW.
• The entire system is energy-saving and environmentally friendly, with low global power consumption, low overall operating costs, and production quality that meets users' current business needs, helping users obtain faster return on investment.


Exclusive technology
• Unique anti-broken line technology and ink supply technology that can guarantee the entire printing process without breaking line.
• The ink developed by independent technology has better printing adaptability, low power consumption drying performance and paper adaptability.


Scalability
• Can be upgraded to two-color printer.
• A variety of cutting programs are under development, and third-party cutting programs are supported.


More Affordable Inkjet POD Solution in the World!
• Market approved drop-on-demand industrial inkjet head technology
• Total roll-to-sheet print-on-demand inkjet print solution
• Short-run mono-color duplex or dual-color duplex book and periodical printing
• Flexibledeployment of structure, easily expand to dual-color duplex or spot color
• Sales price competitivity as lower as offset press


Have you or your customers been struggling the pain points in traditional offset book and periodical pringting?
• Huge waste of inventory / repertory / stock
• Environmental impact of waste and costly chemical treatment
• Long-term press ready time
• Smelly, noisy and dirty workshop harmful to worker's health
• Increasingly cost of human power
Today, you are having the right solution ever before from YINTECH, most affordable POD solution!


Core Technologies
• Inkjet printhead control
• Circulating ink supplying control
• Automatic printhead self-clean system
• Fast-speed paralleling RIP
• Variable data processing
• Special multiple grade-level FM screening for inkjet


Productivity
• Practical printing speed: 100m/min
• Power-on to ready time: <20 minutes
• Daily maintenance time: <20 minutes
• Daily running time: >20 hours
• 63,000 A4 prints per hour on average speed at 85 m/min
• Average sales: lower than laser and approaching to offset
• Competitive balance: 2,000-3,000 copies comparing to offset
