Quality 5.5KW Flexo CTP Machine 1 Bit Tiff Open Interface Photopolymer Plate Making Equipment factory
<
Quality 5.5KW Flexo CTP Machine 1 Bit Tiff Open Interface Photopolymer Plate Making Equipment factory
Quality 5.5KW Flexo CTP Machine 1 Bit Tiff Open Interface Photopolymer Plate Making Equipment factory
Quality 5.5KW Flexo CTP Machine 1 Bit Tiff Open Interface Photopolymer Plate Making Equipment factory
>

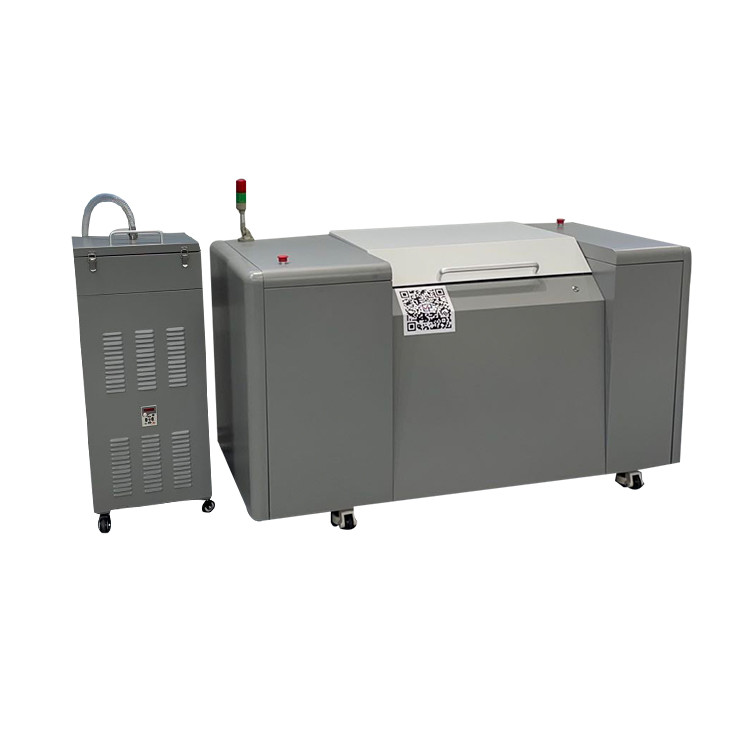

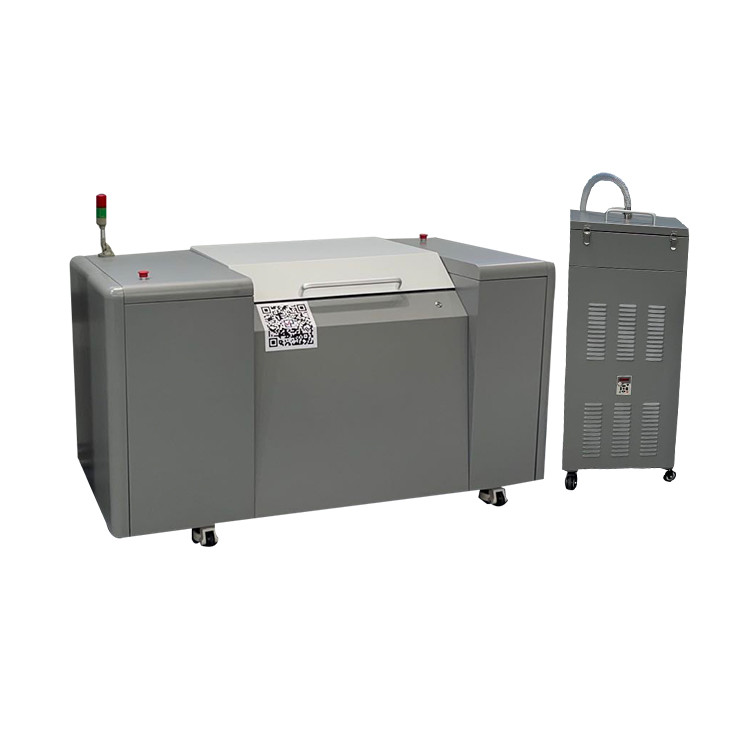

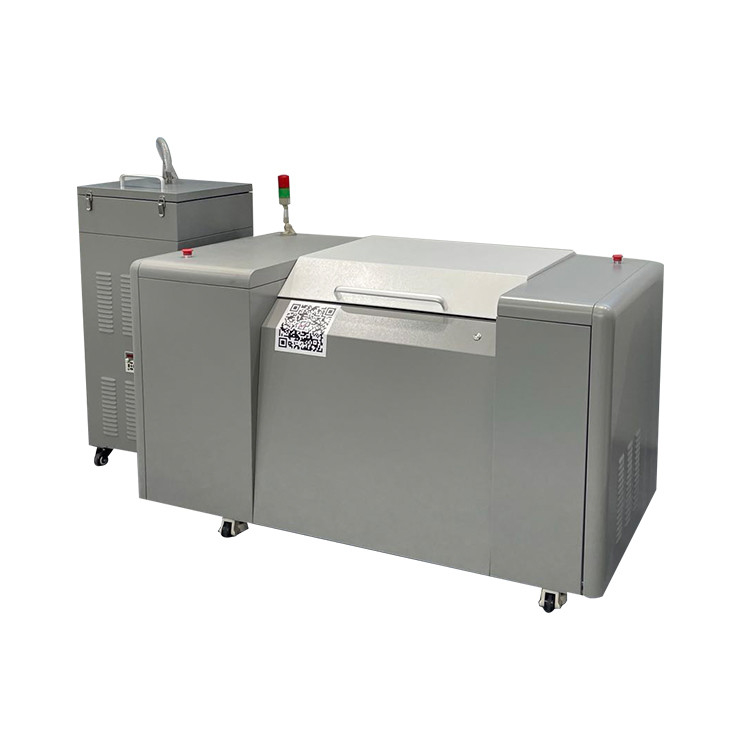

5.5KW Flexo CTP Machine 1 Bit Tiff Open Interface Photopolymer Plate Making Equipment

Brand Name: Yintech
Model Number: HDI 800
Place of Origin: China
Certification: NA
Minimum Order Quantity: 1
Price: $30,000.00 - $70,000.00
Supply Ability: 30 Set/Sets per Month
Tags

5.5KW Flexo CTP Machine

Bag Flexo Printing Plate Making Machine

Bag CTP Flexo Plate Making Machine

Product Details

Applicable Industries: Printing Company Warrranty: Endless Online Service
Loading/unloading Mode:: Manual Resolution: 2400 /4000DPI
Laser Source: 830nm Interface: 1-bit Tiff Open Interface For Any Workflow
After-sale Service: Video Technical Support, Online Support Voltage: Single Phase AC220V, 50-60Hz
Dimension(L*W*H): 2810mmx1400mmx1125mm(LxWxH) Weight: 2800 KG
Highlight

5.5KW Flexo CTP Machine

,

Tiff Open Interface Flexo CTP Machine

,

photopolymer plate making equipment

Product Description

Flexo CTP Machine Flexo CTP photopolymer plate processor machine

Yintech Computer-to-Plate (CTP) plate setters provide the perfect answer to print flexibility. The next-generation independent laser arrangement combined with automatic balance of laser energy technology, ensures enhanced consistency, ease of use and serviceability. Together with patented unique loading and unloading technology, Thermal CTP models offer maximum reliability with fast throughput.
Yintech CTP Machine can accommodate a wide flexibility of plate formats, providing adaptability for any print job from A4 to A1, with ample space for register and trim marks as well as colour bars. Yintech Thermal CTP can accommodate autoloaders with up to 5 cassettes of 50 plates, and can be used with Yintech plate transport bridges with optional punching. With a processing capability of more than 48 plates per hour, Yintech Thermal CTP can keep several different format presses fed with work, optimising press utilisation, flexibility and overall productivity.
Very large format CTP plate setters are designed for commercial web offset applications and large format sheet fed presses for poster and carton work. An extremely reliable plate handling system completes package with efficient and smooth load/unload operation to ensure optimum throughput of more than 25 plates per hour for the larger format machine. VLF CTP can accommodate a single cassette autoloader for up to 100 plates.
Optional plate feeders and handling systems are available to further automate and streamline production.
Yintech’s competitively priced, HDI prepress solutions are designed to support the needs of today’s packaging converters, delivering superior quality output and maximum efficiency for a wide range of flexible packaging and label applications.
Yintech Flexo CTP features high power lasers that deliver high speed, and can achieve resolutions up to 4000 dpi. This makes Yintech Flexo CTP ideal for fine labelling and packaging work.
ModelHDI2000/800
Productivity
5.5m² /hour, 2.5m²/hour
Max. / Min. plate size
2032x1270mm/350x200mm
800x635mm/100x130mm
Laser source830nm
Resolution2400/4000dpi(optional)
Loading/unloading modeManual
Plate thickness
0.14-6.35mm
0.14-3.94mm
Plate typeThermal Film, Digital Polyester-back Flexo and Letterpress plates; Thermal Offset plates and Dry Offset Metal-back plates
CTP interface1-bit Tiff open interface for any workflow
Voltage requirementSingle phase: AC220V±5%,50-60Hz
Power7.9KW/5.5KW (including vacuum pump/dust removal pump)
Working temperature18-25℃, humility:20%-70%, no condensation
Dimension3400x1460x1060mm(LxWxH)
1770x1020x900mm(LxWxH)
Weight1500KGS
900KGS



Product Highlights

Flexo CTP Machine Flexo CTP photopolymer plate processor machine Yintech Computer-to-Plate (CTP) plate setters provide the perfect answer to print flexibility. The next-generation independent laser arrangement combined with automatic balance of laser energy technology, ensures enhanced consistency, ...
