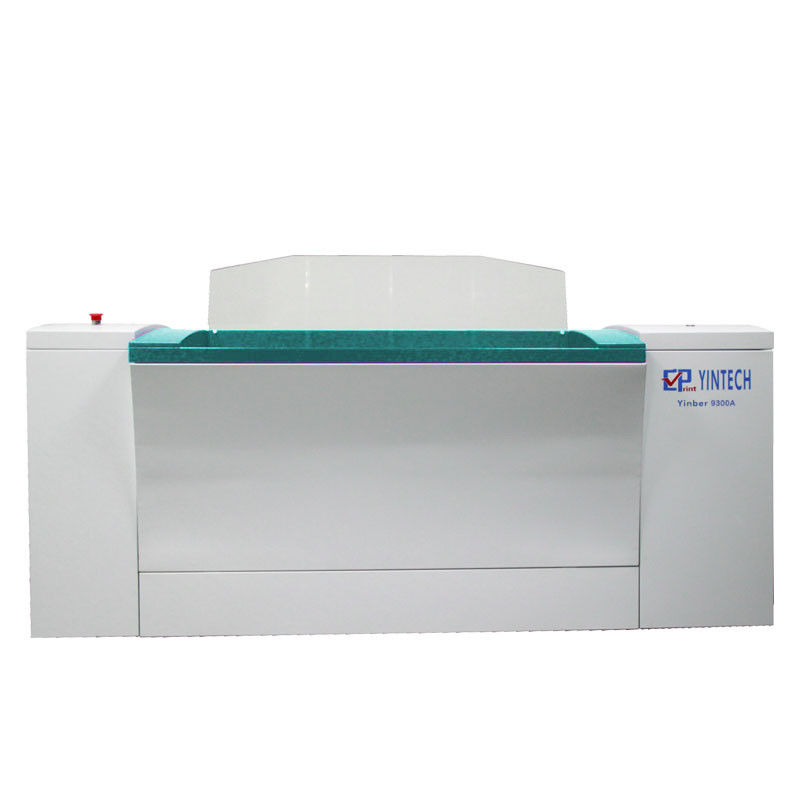

CTP Printing Machine Pre Press Equipment Various Laser Diodes AC 220V
Product Details
| Workflow Software: | Harlequin /prinergy | Loading System: | Semi-auto/automatic |
|---|---|---|---|
| Driver Support: | 1-bit Tiff Interface And Direct Workflow Driver,support Cip3/cip4 | Autoloader: | Optional |
| Feature: | High Durability | Product Name: | CTP Machine |
| Highlight |
digital plate setter,computer to plate equipment,48 channel uv ctp equipment |
||
Product Description
CTP Printing Machine Pre Press Equipment Various Laser Diodes AC 220V
Item name: very large format 48 channel uv computer to plate equipment 1200x1400 mm 2400 DPI
Min:350mm x400mm
Resolution:2400 DPI
Loading system: fully-automatic loading
Humility: 40%~80%
throughput: 17/24/29/35/45PPH,
Weight:1500KG"
Size:2200mmx1350mmx1350mm
Work Environment :
CTP Interface:1-bit Tiff interface and direct workflow driver, support CIP3/CIP4
Laser source:830nm/405nm
Max:1160mm x940mm
(test plate size 1130x800mm)
Plate gauge: 0.15-0.40mm
size:small ctp/commercial ctp/very large format ctp.
Temperature:20~25C
Power Input:AC220V,50~60Hz,8KVA
"plate type: thermal /UV,
laser diodes available:32/48/64/96/128 channels,
Plate gauge:0.15~0.40mm thickness
Thermal CTP(Semi-Auto) | |||||
| |||||
| Technical specification | |||||
| Model | Thermal CTP | ||||
| Yinber 8300A | Yinber 8500A1 | Yinber 8600A | Yinber 4300A | Yinber 4500A | |
| No. of Lasers | 32 | 48 | 64 | 32 | 48 |
| Productivity (1130x800mm) (plates/h) | 17 | 22 | 26 | 22 | 29 |
| Max./Min. Format | Max.: 1160mmx940mm Min.: 350mmx400mm | Max.: 800mmx660mm Min.: 350mmx400mm | |||
| Laser Source | 830nm | ||||
| Resolution | 2400 dpi (Resolution can be customized, up to 8000dpi maximum) | ||||
| Loading System | Semi-Auto | ||||
| Plates Requirement | 0.15-0.4mm Thermal plates, no brand requirement | ||||
| CTP Interface | 1-bit Tiff interface and direct workflow driver,support CIP3/CIP4 | ||||
| Power | AC220-230V,50-60Hz 5.5KW | ||||
| Environment | Temperature: 20-25ºC Humidity: 40%-80% | ||||
| Size & Weight | Size: 2020mmx 1000mmx 930mm Weight: 1500kg | Size:1900mmx 1200mmx 1000mm Weight: 1000kg | |||
| Workflow software | HQ&PR | ||||
| UV CTP(Semi-Auto) | |||||
| Technical specification | |||||
| Model | UV (thermal) CTCP | ||||
| Yinber 9300A | Yinber 9500A | Yinber 9600A | Yinber 5300A | Yinber 5500A | |
| No. of Lasers | 32 | 48 | 64 | 32 | 48 |
| Productivity (1130x800mm) (plates/h) | 17 | 22 | 26 | 22 | 28 |
| Max./Min. Format | Max.: 1160mmx940mm Min.: 350mmx400mm | Max.: 800mmx660mm Min.: 350mmx400mm | |||
| Laser Source | 405nm | ||||
| Resolution | 2400 dpi (Resolution can be customized, up to 8000dpi maximum) | ||||
| Loading System | Semi-Auto | ||||
| Plates Requirement | 0.15-0.4mm UV plates, no brand requirement | ||||
| CTP Interface | 1-bit Tiff interface and direct workflow driver,support CIP3/CIP4 | ||||
| Power | AC220-230V,50-60Hz 5.5KW | ||||
| Environment | Temperature: 20-25ºC Humidity: 40%-80% | ||||
| Size & Weight | Size: 2020mmx 1000mmx 930mm Weight: 1500kg | Size:1900mmx 1200mmx 1000mm Weight: 1000kg | |||
| Workflow software | HQ&PR | ||||
| Automatic CTP(Thermal VS UV) | ||||||
| Technical specification | ||||||
| Model | Thermal | UV | ||||
| Yinber 8300B | Yinber 8500B | Yinber 8600B | Yinber 9300B | Yinber 9500B | Yinber 9600B | |
| No. of Lasers | 32 | |||||
