Place of Origin: | China |
---|---|
Brand Name: | Yinber |
Certification: | ISO9001~2000 |
Model Number: | 2100 |
Minimum Order Quantity: | 1 set |
Price: | $20000~50000 per set |
Packaging Details: | Export Wooden Case for sea shipping well support the forklift, 5.0 CBM/set , 6 sets /20 GP. |
Delivery Time: | 20-30 days |
Payment Terms: | L/C, T/T, D/P, D/A, Western Union, MoneyGram |
Supply Ability: | 300 sets per Year |
Workflow Software: | Harlequin /prinergy | Weight: | 1500 Kg |
---|---|---|---|
Driver Support: | 1-bit Tiff Interface And Direct Workflow Driver,support Cip3/cip4 | Autoloader: | Optional |
Plate Thickness Allowed: | 0.15-0.40mm | Platesetter Structure: | External Drum |
High Light: | conventional ctp machine,ctp equipment |

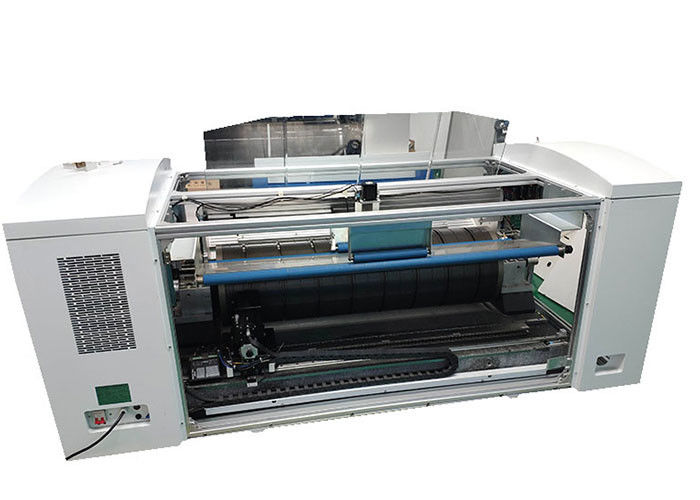

Item name: 96 channels 35 PPH uv ctp platesetter built-in bearing in drum made in China
Thermal CTP(Semi-Auto) |
|||||
Technical specification | |||||
Model | Thermal CTP | ||||
Yinber 8300A | Yinber 8500A1 | Yinber 8600A | Yinber 4300A | Yinber 4500A | |
No. of Lasers | 32 | 48 | 64 | 32 | 48 |
Productivity (1130x800mm) (plates/h) |
17 | 22 | 26 | 22 | 29 |
Max./Min. Format | Max.: 1160mmx940mm Min.: 350mmx400mm |
Max.: 800mmx660mm Min.: 350mmx400mm |
|||
Laser Source | 830nm | ||||
Resolution | 2400 dpi (Resolution can be customized, up to 8000dpi maximum) | ||||
Loading System | Semi-Auto | ||||
Plates Requirement | 0.15-0.4mm Thermal plates, no brand requirement |
||||
CTP Interface | 1-bit Tiff interface and direct workflow driver,support CIP3/CIP4 | ||||
Power | AC220-230V,50-60Hz 5.5KW | ||||
Environment | Temperature: 20-25ºC Humidity: 40%-80% | ||||
Size & Weight | Size: 2020mmx 1000mmx 930mm Weight: 1500kg |
Size:1900mmx 1200mmx 1000mm Weight: 1000kg |
|||
Workflow software | HQ&PR |
UV CTP(Semi-Auto) | |||||
Technical specification | |||||
Model | UV (thermal) CTCP | ||||
Yinber 9300A | Yinber 9500A | Yinber 9600A | Yinber 5300A | Yinber 5500A | |
No. of Lasers | 32 | 48 | 64 | 32 | 48 |
Productivity (1130x800mm) (plates/h) |
17 | 22 | 26 | 22 | 28 |
Max./Min. Format | Max.: 1160mmx940mm Min.: 350mmx400mm |
Max.: 800mmx660mm Min.: 350mmx400mm |
|||
Laser Source | 405nm | ||||
Resolution | 2400 dpi (Resolution can be customized, up to 8000dpi maximum) | ||||
Loading System | Semi-Auto | ||||
Plates Requirement | 0.15-0.4mm UV plates, no brand requirement |
||||
CTP Interface | 1-bit Tiff interface and direct workflow driver,support CIP3/CIP4 | ||||
Power | AC220-230V,50-60Hz 5.5KW | ||||
Environment | Temperature: 20-25ºC Humidity: 40%-80% | ||||
Size & Weight | Size: 2020mmx 1000mmx 930mm Weight: 1500kg |
Size:1900mmx 1200mmx 1000mm Weight: 1000kg |
|||
Workflow software | HQ&PR |

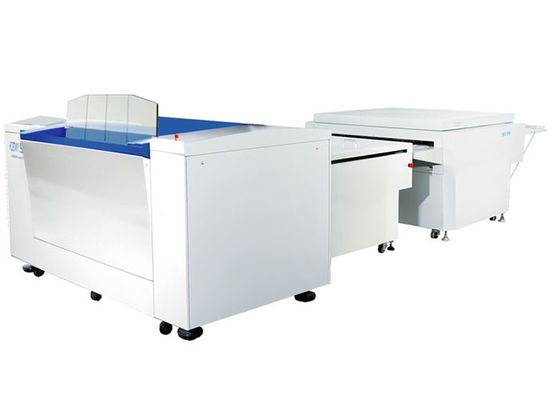

Automatic CTP(Thermal VS UV) | ||||||
Technical specification | ||||||
Model | Thermal | UV | ||||
Yinber 8300B | Yinber 8500B | Yinber 8600B | Yinber 9300B | Yinber 9500B | Yinber 9600B | |
No. of Lasers | 32 | 48 | 64 | 32 | 48 | 64 |
Productivity (1130x800mm) (plates/hour) |
17 | 24 | 29 | 17 | 24 | 29 |
Max./Min. Format | Max.: 1160mmx940mm Min.: 350mmx400mm | |||||
Laser Source | 830nm | 405nm | ||||
Resolution | 2400 dpi (Resolution can be customized, up to 8000dpi maximum) | |||||
Loading System | Automatic,Semi-Auto ( Auto-loader available) | |||||
Plates Requirement | 0.15-0.4mm Thermal plates, no brandre quirement |
0.15-0.4mm UV plates, no brand requirement |
||||
CTP Interface | 1-bit Tiff interface and direct workflow driver,support CIP3/CIP4 | |||||
Power | AC220V,50-60Hz 8KW | |||||
Environment | Temperature: 20-25ºC Humidity: 40%-80% | |||||
Size & Weight | Size: 2200mmx1350mmx1350mm Weight: 1500kg | |||||
Workflow software | HQ&PR |
Large Format CTP(Thermal VS UV) | ||||||||
Technical specification | ||||||||
Model | Thermal | UV | ||||||
Yinber 2200 | Yinber 2300 | Yinber 2200U | Yinber 2300U | |||||
No. of Lasers | 48 | 64 | 48 | 64 | ||||
Productivity (1130x800mm) (plates/hour) |
12 | 13 | 14 | 15 | 12 | 13 | 14 | 15 |
Max./Min. Format | 1200x 1400 508x394 |
1400x 1700 508x394 |
1200x 1400 508x394 |
1400x 1700 508x394 |
1200x 1400 508x394 |
1400x 1700 508x394 |
1200x 1400 508x394 |
1400x 1700 508x394 |
Laser Source | 830nm | 405nm | ||||||
Resolution | 2400 dpi | |||||||
Loading System | Single plate, manual loading | |||||||
Plates Requirement | 0.15-0.4mm Thermal Plates |
0.15-0.4mm UV Plates |
||||||
CTP Interface | 1-bit Tiff interface and direct workflow driver,support CIP3/CIP4 | |||||||
Power | AC220V,50-60Hz 8KW | |||||||
Environment | Temperature: 20-25ºC Humidity: 40%-80% | |||||||
Size & Weight | Size: 2880mmx1310mmx1310mm Weight: 2800kg | |||||||
Workflow software | HQ&PR |
FUCAI CTP Plate(Thermal VS UV PS Plate) | ||
Technical specification | ||
Products Type | (FP-100) Positive Thermal PS Plates |
(FP-200) UV PS Plates |
Durable Rate | 50,000~100,000 prints; >=100,000 after baking |
>=100,000 prints |
Thickness | 0.27mm, 0.15mm | 0.27mm, 0.15mm |
Sensitive wavelength | 830nm | 405nm |
Laser power | 110~150mj/cm | 50~70mj/cm |
Resolution | 1%~99%@200lpi | 1%~99%@200lpi |
Baking condition | 230˚C-250˚C, 5~8 minutes (by using professional plate baking glue) |
230˚C-250˚C, 5~8 minutes (by using professional plate baking glue) |
Safe lighting | 2 hours under fluorescent lamp, 12 hours under yellow light |
2 hours under fluorescent lamp, 12 hours under yellow light |
Storage condition | Store in dry and cool place, store in 5˚C~30˚C, Humility <55% |
Store in dry and cool place, store in 5˚C~30˚C, Humility <55% |
Shelf life | 12 months | 12 months |
Developing time | 20sec~30sec | 20sec~30sec |
Productivity | 1800m2~2500m2 | 1800m2~2500m2 |
