| Place of Origin: | China |
|---|---|
| Brand Name: | Yinber |
| Certification: | ISO9001~2000 |
| Model Number: | FP-200 |
| Minimum Order Quantity: | 3,500m² |
| Price: | $1.5-2.8 per m² |
| Packaging Details: | Export carton with pallets for sea shipping well support the forklift, about 30,000m²/20 GP. |
| Delivery Time: | 20-30 days |
| Payment Terms: | L/C, T/T, D/P, D/A, Western Union, MoneyGram |
| Supply Ability: | 100,000m² per months |
| Substrate: | Aluminum Plate | Resolution: | 200LPI |
|---|---|---|---|
| Dot Reproduction: | 1~99% | Run Length: | Up To 100,000 Impressions Unbaked, Up To 200,000 Impressions Baked |
| Uv Laser Energy Required: | 50-70mj/cm² | Thermal Laser Energy Required: | 110-150mj/cm² |
| Gauge: | 0.15-0.40mm | Coating: | Single Layer |
| High Light: | offset ps plate,aluminum litho plate |
||

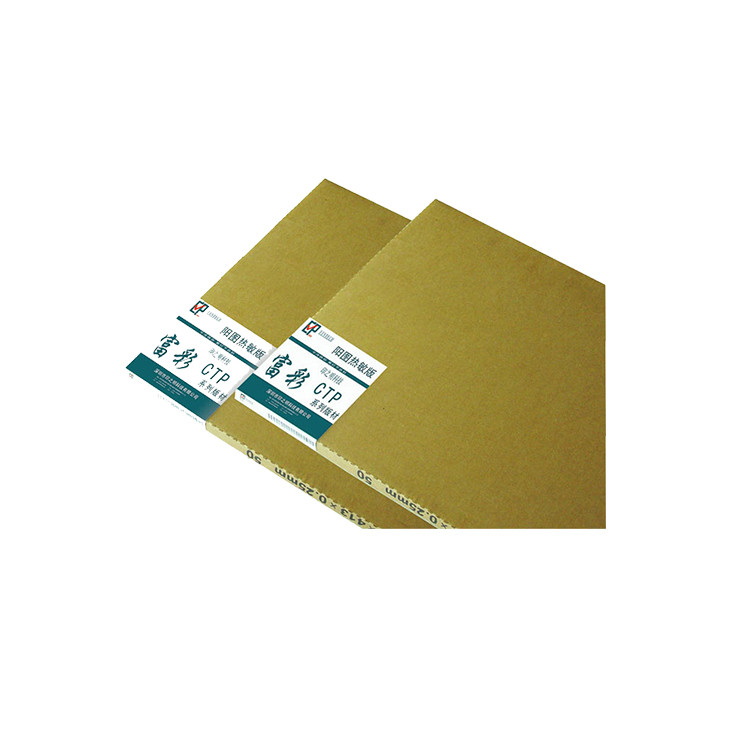

Item name: China UV ctcp plate wholesale 0.27mm gauge 200LPI up to 100000 impressions spectral sensitivity 405nm
| FUCAI CTP Plate(Thermal VS UV PS Plate) | ||
 |
||
| Technical specification | ||
| Products Type | (FP-100) Positive Thermal Plates |
(FP-200) UV Plates |
| Durable Rate | 50,000~100,000 impressions unbaked; >=100,000 impression baked; |
>=100,000 impressions |
| Thickness | 0.27mm, 0.15mm | 0.27mm, 0.15mm |
| Sensitive wavelength | 830nm | 405nm |
| Laser energy required | 110~150mj/cm | 50~70mj/cm |
| Resolution | 1%~99%@200lpi | 1%~99%@200lpi |
| Baking condition | 230˚C-250˚C, 5~8 minutes (by using professional plate baking glue) |
230˚C-250˚C, 5~8 minutes (by using professional plate baking glue) |
| Safe lighting | 2 hours under fluorescent lamp, 12 hours under yellow safelight |
2 hours under fluorescent lamp, 12 hours under yellow safelight |
| Storage condition | Store in dry and cool place, store in 5˚C~30˚C, Humility <55% |
Store in dry and cool place, store in 5˚C~30˚C, Humility <55% |
| Shelf life | 12 months | 12 months |
| Developing time | 20sec~30sec | 20sec~30sec |
| Productivity | 1800m2~2500m2 | 1800m2~2500m2 |
| |
|
| Item Name | PS Plate |
| Plate type | Positive |
| Substrate | Electro-chemically grained and anodized lithographic aluminum. |
| Gauge | 0.15/0.27/0.30mm |
| Maximum width | 1320mm |
| Spectral sensitivity | 350-420nm |
| Safelights | UV filtered or Yellow |
| Sensitivity | 130-150mj/cm² |
| Color change | Blue-Green to Green after exposed |
| Dot reproduction | 1~99% @200LPI |
| Packing | 0.15mm 100pcs/box, 0.27/0.30mm 50pcs/box |
| Shelf life | 12 months |
| Run length | up to 100,000 impressions |
HIGH-QUALITY PRINTING
No matter if you choose to run them with preheat or without, Yintech UV Plates provide high resolutions for both AM
and FM newspaper printing. Excellent resolution enables premium newspaper printing as well as colour printing of yers, inserts, and related commercial pieces.
LONG PROCESSING CYCLES
In addition, the Yintech UV Plate has longer processing cycles and uses equal or less developer than competitive solutions, including “chemistry free” plates. Longer cycles mean fewer developer changes for fewer interruptions, more uptime, and reduced cleaning expenses.
ENVIRONMENT PROTECTION
With the Yintech UV Plate, you can reduce your energy usage by up to 60% by using the no preheat Yintech Plate Processor, compared to using a preheat processor, such as the Yintech 125 Plate Processor, and you can also reduce water usage by eliminating prewash. The no preheat Yintech Processor reduces the length of your plate line by 1.19 meters, providing the shortest heavy-duty processing line in the industry. You can also save energy and water using your existing processing equipment simply by turning off preheat/prewash, so there is no need to buy a new processor.
