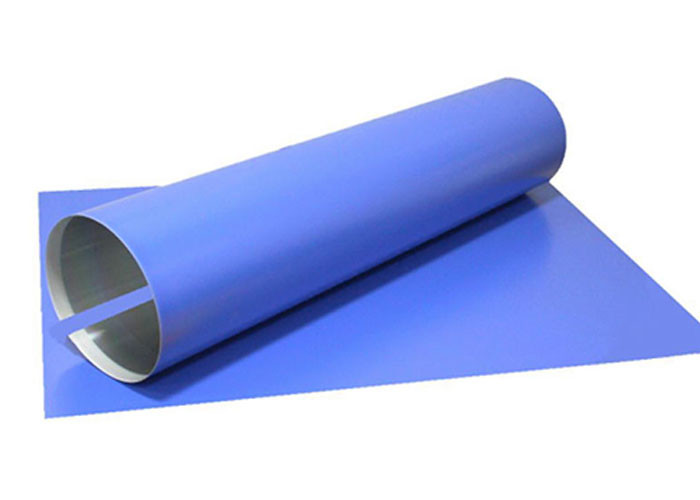

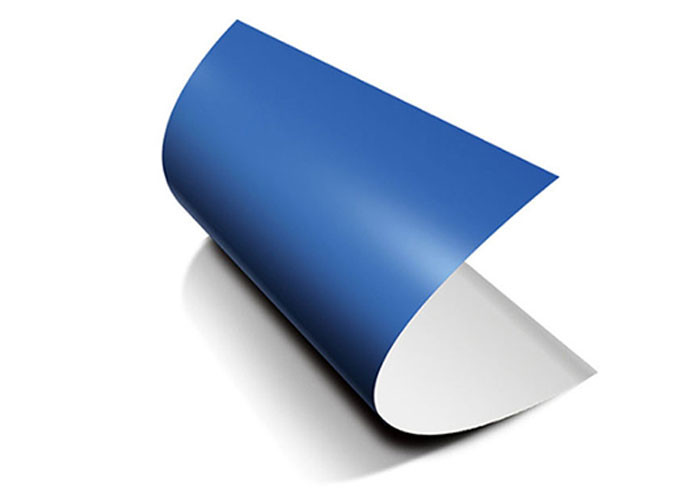

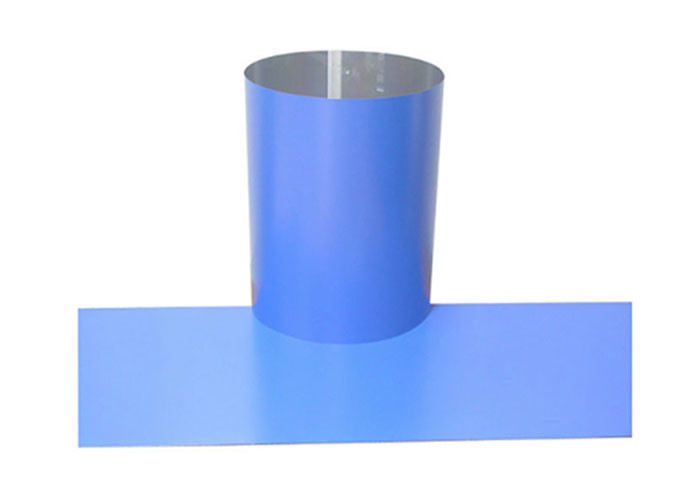

200LPI Blue Plates , Durable Aluminum Litho Plate High Productivity
Product Details
| Substrate: | Aluminum Plate | Resolution: | 200LPI |
|---|---|---|---|
| Dot Reproduction: | 1~99% | Run Length: | Up To 100,000 Impressions Unbaked, Up To 200,000 Impressions Baked |
| Uv Laser Energy Required: | 50-70mj/cm² | Thermal Laser Energy Required: | 110-150mj/cm² |
| Gauge: | 0.15-0.40mm | Coating: | Single Layer |
| Highlight |
violet printing plates,ctp offset printing plates |
||
Product Description
Item name: China ctp plate wholesale 0.30 guage200LPI up to 100000 impressions spectral sensitivity 405nm
Developing Temperature: 23+/-2 Degree
Developing Time: 25+/-5sec
Specification: 0.15mm 100pcs/box; 0.25mm 50pcs/box; 0.30mm 50pcs
Origin: China (Mainland)
Material: Aluminum

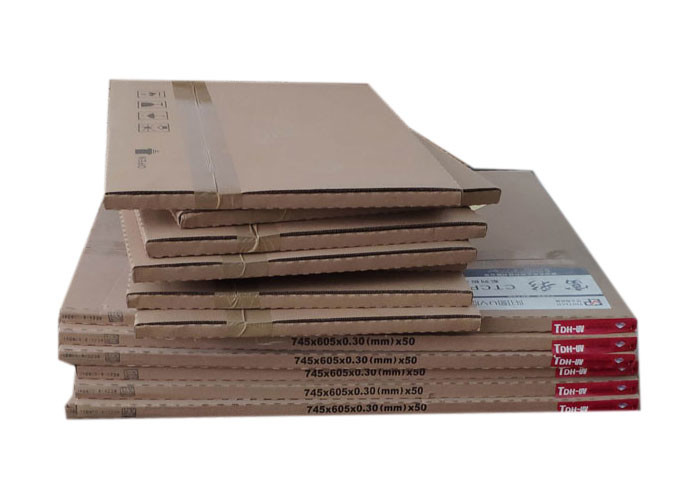

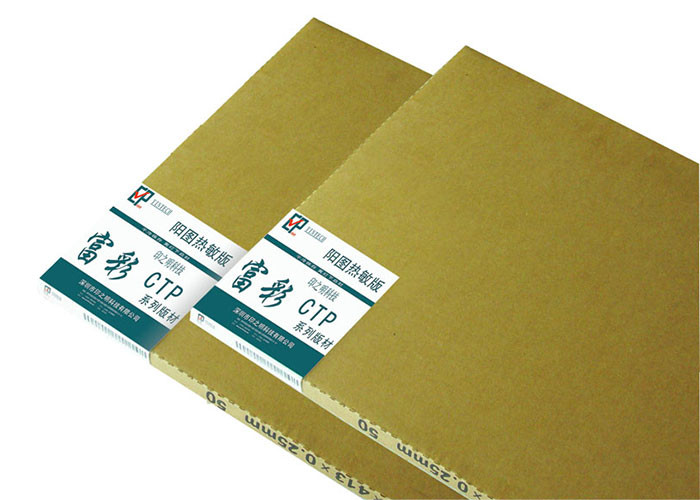

Transport Package: Export Standard Seaworthy Package
Color: Blue
Gauge: 0.15~0.40mm
Style: Positive
Exposure Energy: 50~70mj/Cm2
HS Code: 3701302400
Usage: Offset Printing, Digital Printing
Max Width: 1360
Spectral Sensitivity: 405nm
Type: CTCP Plate
Shelf Time: 18 Monthes
Resolution: 1~99% at 200lpi
Model NO.: FP-200
Trademark: Yintech
| FUCAI CTP Plate(Thermal VS UV PS Plate) | ||
|
||
| Technical specification | ||
| Products Type | (FP-100) Positive Thermal Plates |
(FP-200) UV Plates |
| Durable Rate | 50,000~100,000 impressions unbaked; >=100,000 impression baked; |
>=100,000 impressions |
| Thickness | 0.27mm, 0.15mm | 0.27mm, 0.15mm |
| Sensitive wavelength | 830nm | 405nm |
| Laser energy required | 110~150mj/cm | 50~70mj/cm |
| Resolution | 1%~99%@200lpi | 1%~99%@200lpi |
| Baking condition | 230˚C-250˚C, 5~8 minutes (by using professional plate baking glue) |
230˚C-250˚C, 5~8 minutes (by using professional plate baking glue) |
| Safe lighting | 2 hours under fluorescent lamp, 12 hours under yellow safelight |
2 hours under fluorescent lamp, 12 hours under yellow safelight |
| Storage condition | Store in dry and cool place, store in 5˚C~30˚C, Humility <55% |
Store in dry and cool place, store in 5˚C~30˚C, Humility <55% |
| Shelf life | 12 months | 12 months |
| Developing time | 20sec~30sec | 20sec~30sec |
| Productivity | 1800m2~2500m2 | 1800m2~2500m2 |
Product Highlights
Item name: China ctp plate wholesale 0.30 guage200LPI up to 100000 impressions spectral sensitivity 405nm Developing Temperature: 23+/-2 Degree Developing Time: 25+/-5sec Specification: 0.15mm 100pcs/box; 0.25mm 50pcs/box; 0.30mm 50pcs Origin: China (Mainland) Material: Aluminum Transport Package: ...
