32 Diodes Computer To Plate Equipment Small Size Max Format 800 * 660MM

Basic Information
Place of Origin: China
Brand Name: Yinber
Certification: ISO9001~2000
Model Number: 4300A
Minimum Order Quantity: 1 set
Price: $20000~50000 per set
Packaging Details: Export Wooden Case for sea shipping well support the forklift, 5.0 CBM/set , 6 sets /20 GP.
Delivery Time: 20-30 days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 300 sets per Year
Workflow Software: Harlequin /prinergy Loading System: Semi-auto/automatic
Driver Support: 1-bit Tiff Interface And Direct Workflow Driver,support Cip3/cip4 Plate Required: Thermal Ctp Plate
Plate Thickness: 0.15mm-0.40mm Type: Computer To Plate
High Light:

high dpi printer

,

thermal ctp machine

,

32 diodes ctp equipment

Item name: small ctp 4up computer to plate equipment 32 diodes 22 plates per hour 2400DPI max format 800x660mm



Thermal CTP(Semi-Auto)

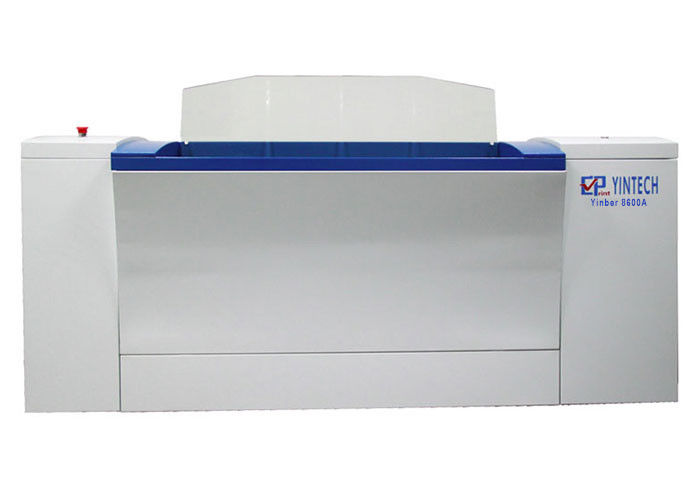

32 Diodes Computer To Plate Equipment Small Size Max Format 800 * 660MM 0

Technical specification
Model Thermal CTP
Yinber 8300A Yinber 8500A1 Yinber 8600A Yinber 4300A Yinber 4500A
No. of Lasers 32 48 64 32 48
Productivity
(1130x800mm)
(plates/h)
17 22 26 22 29
Max./Min. Format Max.: 1160mmx940mm
Min.: 350mmx400mm
Max.: 800mmx660mm
Min.: 350mmx400mm
Laser Source 830nm
Resolution 2400 dpi (Resolution can be customized, up to 8000dpi maximum)
Loading System Semi-Auto
Plates Requirement 0.15-0.4mm
Thermal plates, no brand requirement
CTP Interface 1-bit Tiff interface and direct workflow driver,support CIP3/CIP4
Power AC220-230V,50-60Hz 5.5KW
Environment Temperature: 20-25ºC Humidity: 40%-80%
Size & Weight Size: 2020mmx 1000mmx 930mm
Weight: 1500kg
Size:1900mmx 1200mmx 1000mm
Weight: 1000kg
Workflow software HQ&PR

UV CTP(Semi-Auto)

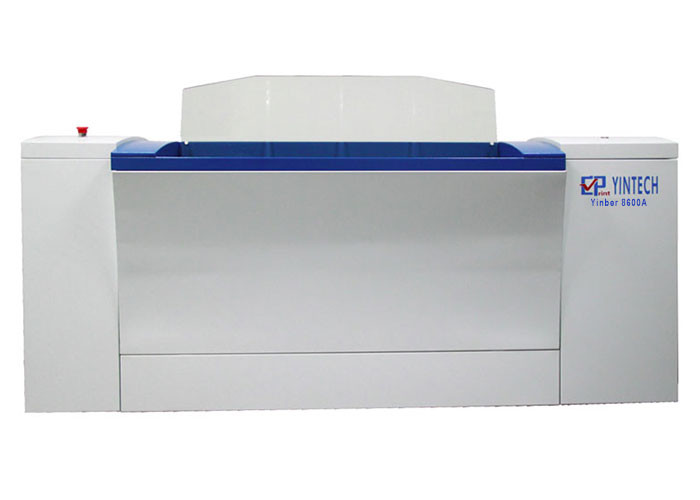

32 Diodes Computer To Plate Equipment Small Size Max Format 800 * 660MM 1
Technical specification
Model UV (thermal) CTCP
Yinber 9300A Yinber 9500A Yinber 9600A Yinber 5300A Yinber 5500A
No. of Lasers 32 48 64 32 48
Productivity
(1130x800mm)
(plates/h)
17 22 26 22 28
Max./Min. Format Max.: 1160mmx940mm
Min.: 350mmx400mm
Max.: 800mmx660mm
Min.: 350mmx400mm
Laser Source 405nm
Resolution 2400 dpi (Resolution can be customized, up to 8000dpi maximum)
Loading System Semi-Auto
Plates Requirement 0.15-0.4mm
UV plates, no brand requirement
CTP Interface 1-bit Tiff interface and direct workflow driver,support CIP3/CIP4
Power AC220-230V,50-60Hz 5.5KW
Environment Temperature: 20-25ºC Humidity: 40%-80%
Size & Weight Size: 2020mmx 1000mmx 930mm
Weight: 1500kg
Size:1900mmx 1200mmx 1000mm
Weight: 1000kg
Workflow software HQ&PR

Automatic CTP(Thermal VS UV)

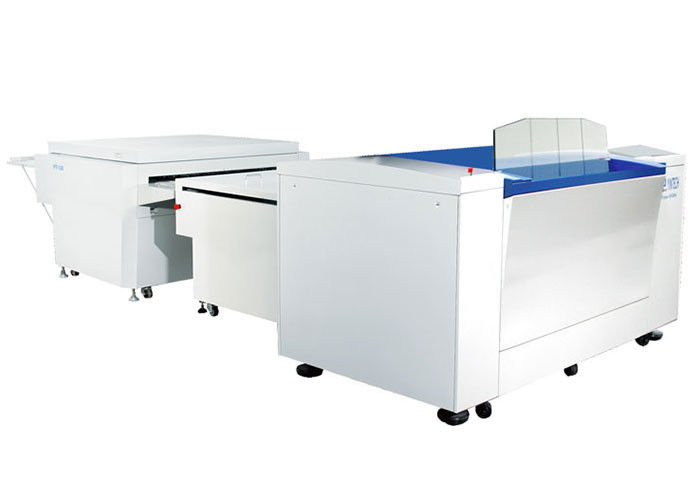

32 Diodes Computer To Plate Equipment Small Size Max Format 800 * 660MM 2

Technical specification
Model Thermal UV
Yinber 8300B Yinber 8500B Yinber 8600B Yinber 9300B Yinber 9500B Yinber 9600B
No. of Lasers 32 48 64 32 48 64
Productivity
(1130x800mm)
(plates/hour)
17 24 29 17 24 29
Max./Min. Format Max.: 1160mmx940mm Min.: 350mmx400mm
Laser Source 830nm 405nm
Resolution 2400 dpi (Resolution can be customized, up to 8000dpi maximum)
Loading System Automatic,Semi-Auto ( Auto-loader available)
Plates Requirement 0.15-0.4mm
Thermal plates, no brandre quirement
0.15-0.4mm
UV plates, no brand requirement
CTP Interface 1-bit Tiff interface and direct workflow driver,support CIP3/CIP4
Power AC220V,50-60Hz 8KW
Environment Temperature: 20-25ºC Humidity: 40%-80%
Size & Weight Size: 2200mmx1350mmx1350mm Weight: 1500kg
Workflow software HQ&PR

Large Format CTP(Thermal VS UV)

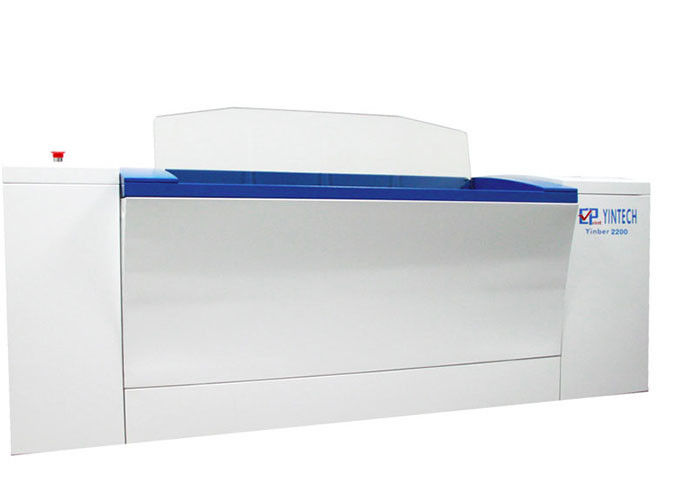

32 Diodes Computer To Plate Equipment Small Size Max Format 800 * 660MM 0
Technical specification
Model Thermal UV
Yinber 2200 Yinber 2300 Yinber 2200U Yinber 2300U
No. of Lasers 48 64 48 64
Productivity
(1130x800mm)
(plates/hour)
12 13 14 15 12 13 14 15
Max./Min. Format 1200x 1400


508x394
1400x 1700


508x394
1200x 1400


508x394
1400x 1700


508x394
1200x 1400


508x394
1400x 1700


508x394
1200x 1400


508x394
1400x 1700


508x394
Laser Source 830nm 405nm
Resolution 2400 dpi
Loading System Single plate, manual loading
Plates Requirement 0.15-0.4mm
Thermal Plates
0.15-0.4mm
UV Plates
CTP Interface 1-bit Tiff interface and direct workflow driver,support CIP3/CIP4
Power AC220V,50-60Hz 8KW
Environment Temperature: 20-25ºC Humidity: 40%-80%
Size & Weight Size: 2880mmx1310mmx1310mm Weight: 2800kg
Workflow software HQ&PR
FUCAI CTP Plate(Thermal VS UV PS Plate)
32 Diodes Computer To Plate Equipment Small Size Max Format 800 * 660MM 4
Technical specification
Products Type (FP-100)
Positive Thermal PS Plates
(FP-200)
UV PS Plates
Durable Rate 50,000~100,000 prints;
>=100,000 after baking
>=100,000 prints
Thickness 0.27mm, 0.15mm 0.27mm, 0.15mm
Sensitive wavelength 830nm 405nm
Laser power 110~150mj/cm 50~70mj/cm
Resolution 1%~99%@200lpi 1%~99%@200lpi
Baking condition 230˚C-250˚C, 5~8 minutes
(by using professional plate baking glue)
230˚C-250˚C, 5~8 minutes
(by using professional plate baking glue)
Safe lighting 2 hours under fluorescent lamp,
12 hours under yellow light
2 hours under fluorescent lamp,
12 hours under yellow light
Storage condition Store in dry and cool place, store in 5˚C~30˚C,
Humility <55%
Store in dry and cool place, store in 5˚C~30˚C,
Humility <55%
Shelf life 12 months 12 months
Developing time 20sec~30sec 20sec~30sec
Productivity 1800m2~2500m2 1800m2~2500m2



we are one of leading ctp equipment, ctp machine supplier from China, we have professional  computer to plate ctp equipment factory, welcome to buy products from us.
