Thermal Laser CTP Plate Making Machine Semi - Auto / Automatic Loading System

Basic Information
Place of Origin: China
Brand Name: Yinber
Certification: ISO9001~2000
Model Number: 8300B
Minimum Order Quantity: 1 set
Price: $20000~30000 per set
Packaging Details: Export Wooden Case for sea shipping well support the forklift, 5.0 CBM/set , 6 sets /20 GP.
Delivery Time: 20-30 days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 300 sets per Year
Rip/workflow Software: Harlequin /prinergy Loading System: Semi-auto/automatic
Driver Support: 1-bit Tiff Interface And Direct Workflow Driver,support Cip3/cip4 Laser Source Type: Thermal/830nm
Automatic Grade: Automatic,Semi-Automatic Condition: New
High Light:

ctp machine

,

ctp plate machine

,

AC220V ctp plate making equipment

Automatic CTP/Thermal CTP plate making machine

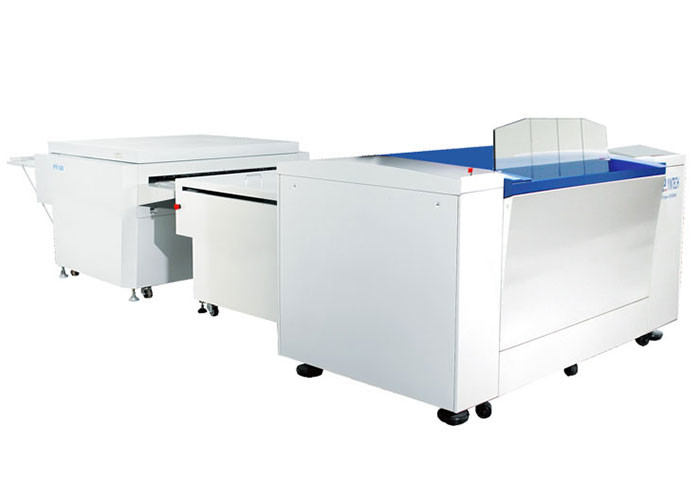

Thermal Laser CTP Plate Making Machine Semi - Auto / Automatic Loading System 0
Technical specification
Model 8300B
No. of Lasers 32
Throughput
(1130x800mm)
(plates/hour)
17 PPH
Max./Min. Format Max.: 1160mmx940mm Min.: 350mmx400mm
Laser Source 830 nm
Resolution 2400 dpi (Resolution can be customized, up to 8000dpi maximum)
Loading System Automatic, Semi-Auto ( Auto-loader available)
Plates Requirement  0.15-0.4mm
Thermal plates, no brand requirement
CTP Interface 1-bit Tiff interface and direct workflow driver, support CIP3/CIP4
Power AC220V,50-60Hz 8KW
Environment Temperature: 20-25ºC Humidity: 40%-80%
Size & Weight Size: 2200mmx1350mmx1350mm Weight: 1500kg
Workflow software RIP Harlequin &Workflow Prinergy



Yintech ctp machine 10 advantages why choose us? products structure design advantages, 7x24 hours service advantages, warranty time=5 years

1.Marble stone platform

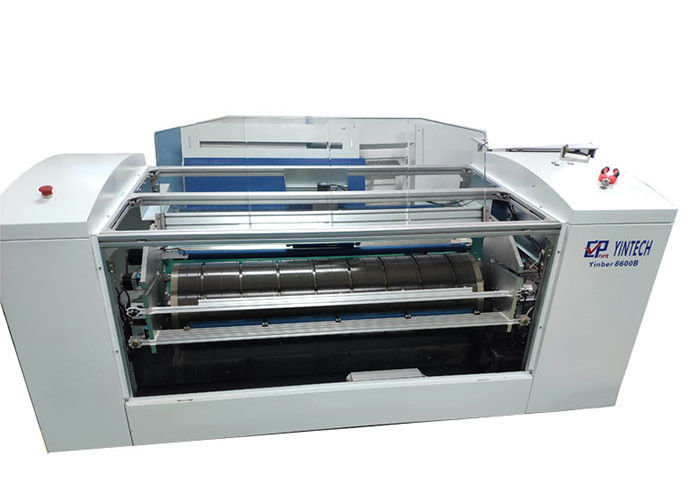

Thermal Laser CTP Plate Making Machine Semi - Auto / Automatic Loading System 1

Temperate resistance feature makes it more stable more accurate.

2.Double row fiber source laser diode design

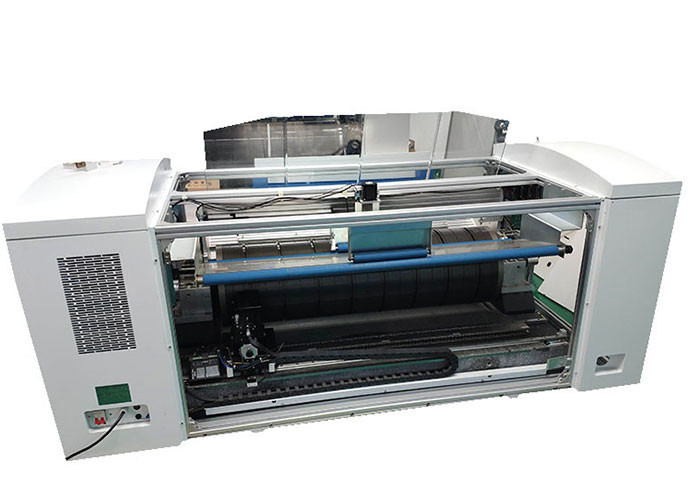

Thermal Laser CTP Plate Making Machine Semi - Auto / Automatic Loading System 2

Enable the dots more dense, resulting in a finer resolution.

Even one laser failed , it will still work normally. You don’t need to change instantly .you have enough time to make replacement for that failed laser.

3.Modular design

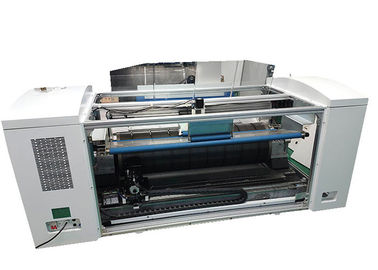

Thermal Laser CTP Plate Making Machine Semi - Auto / Automatic Loading System 3

modular design ,easy assembling job make the failure rate very low. All modules are monitored, tracked and can be diagnosed by PC software.

4.Autofocus system

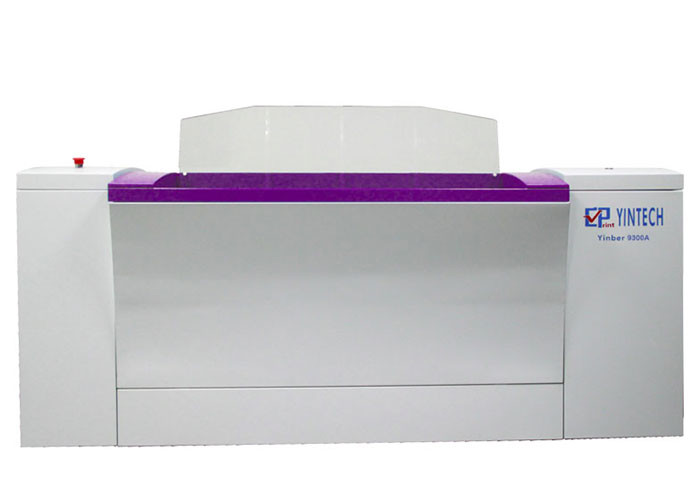

Thermal Laser CTP Plate Making Machine Semi - Auto / Automatic Loading System 4

The same as Kodak, we adopted real-time auto-focus technology. Auto-focus brings not only more flexible on plates’ options, but also more saturated dot, if the drum happens to deform or plates not flat, , auto-focus system can make up these flaws.

5.Maglev track technology

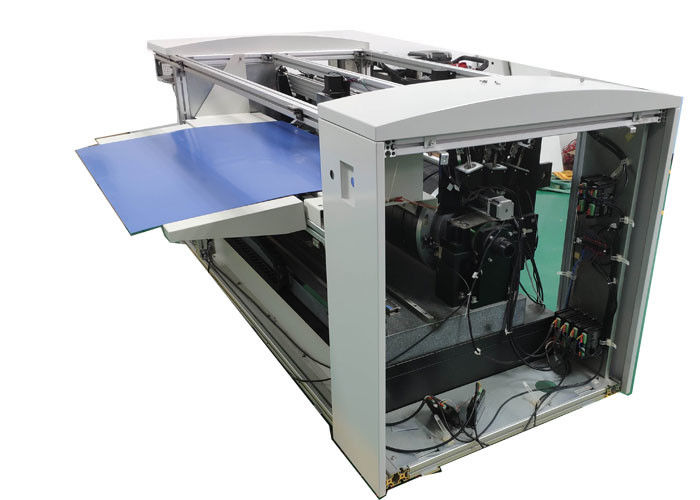

Thermal Laser CTP Plate Making Machine Semi - Auto / Automatic Loading System 5

We adopted maglev track (magnetic levitation) to replace traditional lead screw. traditionally, manufacturers use lead screw to drive the lens, the interval between lead screw and nut will increase after used, as a result, it will decrease the accuracy of plates making.

Moreover, lead screw need to be lubricated frequently to keep it smooth.

6.Non-linear Calibration system

Thermal Laser CTP Plate Making Machine Semi - Auto / Automatic Loading System 6

Nonlinear graphical calibration system can perfectly reproduce rectangle, eliminating dimensional deviation caused by different plate thickness.

7.Use high power laser diodes

Thermal Laser CTP Plate Making Machine Semi - Auto / Automatic Loading System 7

High-power diodes. Unlike most manufacturers use 1w diodes for CTP machines and 70mj (200mW) diodes for CTCP machines, we use 2W diodes for CTP machines and 120mj (300mW) for CTCP machines. Based on usual use, higher power diodes can expect a longer life and not so easy to get aged.

8.Built-in bearing in the drum

Thermal Laser CTP Plate Making Machine Semi - Auto / Automatic Loading System 8

We used built-in bearing to support our drum, which brings higher stability and more accuracy when the drum rotates in a high speed, without a big deviation.

9.Top-class components and parts

Thermal Laser CTP Plate Making Machine Semi - Auto / Automatic Loading System 9

We use top-class accessories in all our equipment, which brings our products more stable performance and longer life. -Fuji motor from Japan; -Lasermech thermal diodes from USA; -Nichia UV diodes from Japan; -Maglev system and bearings from Germany; -Sensors from Spain.

10.workflow and RIP software

Thermal Laser CTP Plate Making Machine Semi - Auto / Automatic Loading System 10

we install the most popular ctp work flow &RIP software for our clients, Prinergy & Harlequin.

11.Remote diagnosis system.

Thermal Laser CTP Plate Making Machine Semi - Auto / Automatic Loading System 11



( Remote diagnosis) Through “ Teamviewer”, our technicians can share data with customers‘ computer in real-time, thus to diagnose their CTP equipment.

ctp workflow process



Thermal Laser CTP Plate Making Machine Semi - Auto / Automatic Loading System 12


Shenzhen Yintech Co.,Ltd is one of top leading ctcp plate making machine manufacturer, we produce and supply 32 channel ctp plate making machine, ctcp plate making machine, and flexo plate making machine, we have professional ctp plate making factory, welcome to wholesale products from us.
