High DPI CTCP Plate Making Machine 2200 * 1350 * 1350MM CIP3 / CIP4

Basic Information
Place of Origin: China
Brand Name: Yinber
Certification: ISO9001~2000
Model Number: 9100B
Minimum Order Quantity: 1 set
Price: $20000~55000 per set
Packaging Details: Export Wooden Case for sea shipping well support the forklift, 5.0 CBM/set , 6 sets /20 GP.
Delivery Time: 20-30 days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 300 sets per Year
Size: 2200 * 1350 * 1350MM Loading System: Semi-auto/automatic
Driver Support: 1-bit Tiff Interface And Direct Workflow Driver,support Cip3/cip4 Automatic Grade: Automatic,Semi-Automatic
Condition: New Workflow Software: Harlequin /prinergy
High Light:

ctcp machine

,

computer to conventional plate machine

Product specification details




Automatic CTCP/UV CTP plate making machine

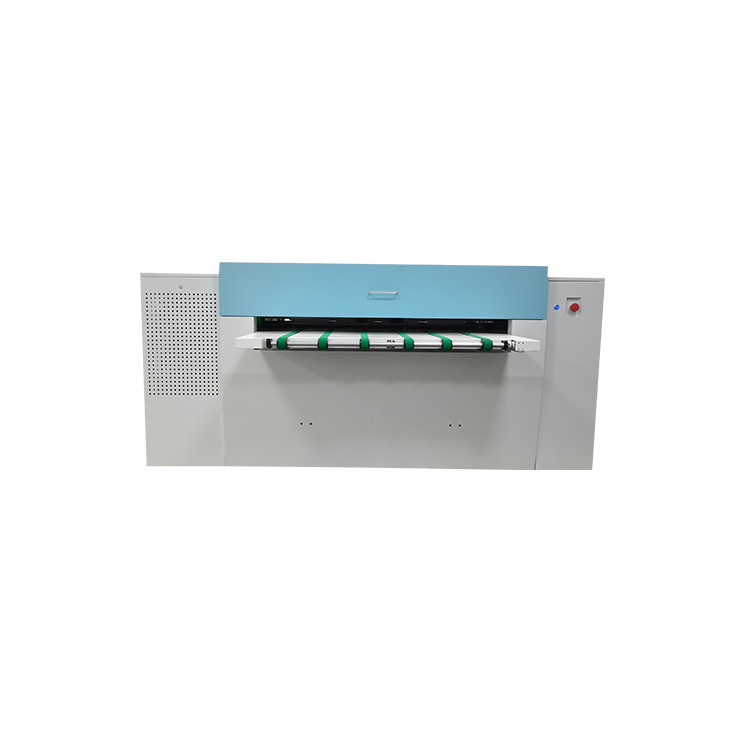

High DPI CTCP Plate Making Machine 2200 * 1350 * 1350MM CIP3 / CIP4 0
Technical specification
Model 9100B
No. of Lasers 128
Throughput
(1130x800mm)
(plates/hour)
45 PPH
Max./Min. Format Max.: 1160mmx940mm Min.: 350mmx400mm
Laser Source 405 nm
Resolution 2400 dpi (Resolution can be customized, up to 8000dpi maximum)
Loading System Automatic, Semi-Auto ( Auto-loader available)
Plates Requirement  0.15-0.4mm
UV plates, no brand requirement
CTP Interface 1-bit Tiff interface and direct workflow driver, support CIP3/CIP4
Power AC220V,50-60Hz 8KW
Environment Temperature: 20-25ºC Humidity: 40%-80%
Size & Weight Size: 2200mmx1350mmx1350mm Weight: 1500kg
Workflow software RIP Harlequin &Workflow Prinergy



Our advantages:


Yintech ctp machine 10 advantages why choose us? products structure design advantages, 7x24 hours service advantages, warranty time=5 years

1.Marble stone platform

Temperate resistance feature makes it more stable more accurate.

2.Double row fiber source laser diode design



Enable the dots more dense, resulting in a finer resolution.

Even one laser failed , it will still work normally. You don’t need to change instantly .you have enough time to make replacement for that failed laser.

3.Modular design



modular design ,easy assembling job make the failure rate very low. All modules are monitored, tracked and can be diagnosed by PC software.

4.Autofocus system



The same as Kodak, we adopted real-time auto-focus technology. Auto-focus brings not only more flexible on plates’ options, but also more saturated dot, if the drum happens to deform or plates not flat, , auto-focus system can make up these flaws.

5.Maglev track technology



We adopted maglev track (magnetic levitation) to replace traditional lead screw. traditionally, manufacturers use lead screw to drive the lens, the interval between lead screw and nut will increase after used, as a result, it will decrease the accuracy of plates making.

Moreover, lead screw need to be lubricated frequently to keep it smooth.

6.Non-linear Calibration system



Nonlinear graphical calibration system can perfectly reproduce rectangle, eliminating dimensional deviation caused by different plate thickness.

7.Use high power laser diodes



High-power diodes. Unlike most manufacturers use 1w diodes for CTP machines and 70mj (200mW) diodes for CTCP machines, we use 2W diodes for CTP machines and 120mj (300mW) for CTCP machines. Based on usual use, higher power diodes can expect a longer life and not so easy to get aged.

8.Built-in bearing in the drum



We used built-in bearing to support our drum, which brings higher stability and more accuracy when the drum rotates in a high speed, without a big deviation.

9.Top-class components and parts



We use top-class accessories in all our equipment, which brings our products more stable performance and longer life. -Fuji motor from Japan; -Lasermech thermal diodes from USA; -Nichia UV diodes from Japan; -Maglev system and bearings from Germany; -Sensors from Spain.

10.workflow and RIP software



we install the most popular ctp work flow &RIP software for our clients, Prinergy & Harlequin.

11.Remote diagnosis system.



( Remote diagnosis) Through “ Teamviewer”, our technicians can share data with customers‘ computer in real-time, thus to diagnose their CTP equipment.


Shenzhen Yintech Co.,Ltd is one of top leading ctcp plate making machine manufacturer, we produce and supply ctcp plate making machine, ctp plate making machine, CTS and flexo plate making machine, we have professional ctcp plate making factory, welcome to wholesale products from us.
