Place of Origin: | China |
---|---|
Brand Name: | Yinber |
Certification: | ISO9001~2000 |
Model Number: | 9900B |
Minimum Order Quantity: | 1 set |
Price: | $20000~50000 per set |
Packaging Details: | Export Wooden Case for sea shipping well support the forklift, 5.0 CBM/set , 6 sets /20 GP. |
Delivery Time: | 20-30 days |
Payment Terms: | L/C, T/T, D/P, D/A, Western Union, MoneyGram |
Supply Ability: | 300 sets per Year |
Temperature: | 20-25ºC | Workflow Software: | Harlequin /prinergy |
---|---|---|---|
Humidity: | 40%-80% | Loading System: | Semi-auto/automatic |
Driver Support: | 1-bit Tiff Interface And Direct Workflow Driver,support Cip3/cip4 | Color: | White |
High Light: | ctcp machine,computer to conventional plate machine |

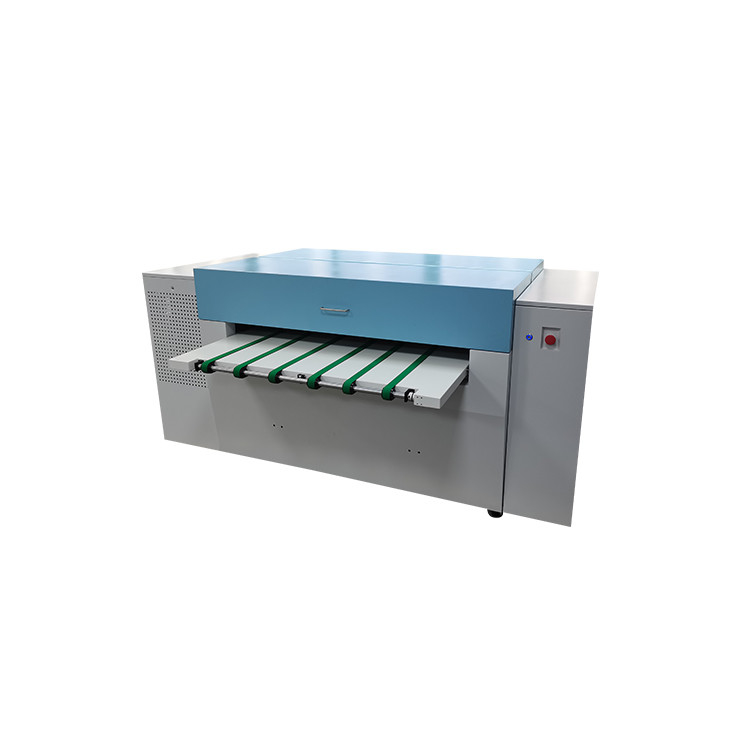

Automatic CTCP/UV CTP plate making machine | ||
![]() |
||
Technical specification | ||
Model | 9900B | |
No. of Lasers | 96 | |
Throughput (1130x800mm) (plates/hour) |
35PPH | |
Max./Min. Format | Max.: 1160mmx940mm Min.: 350mmx400mm | |
Laser Source | 405 nm | |
Resolution | 2400 dpi (Resolution can be customized, up to 8000dpi maximum) | |
Loading System | Automatic, Semi-Auto ( Auto-loader available) | |
Plates Requirement | 0.15-0.4mm UV plates, no brand requirement |
|
CTP Interface | 1-bit Tiff interface and direct workflow driver, support CIP3/CIP4 | |
Power | AC220V,50-60Hz 8KW | |
Environment | Temperature: 20-25ºC Humidity: 40%-80% | |
Size & Weight | Size: 2200mmx1350mmx1350mm Weight: 1500kg | |
Workflow software | RIP Harlequin &Workflow Prinergy |
1.Autofocus system
The same as Kodak, we adopted real-time auto-focus technology. Auto-focus brings not only more flexible on plates’ options, but also more saturated dot, if the drum happens to deform or plates not flat, , auto-focus system can make up these flaws.
2.Maglev track technology
We adopted maglev track (magnetic levitation) to replace traditional lead screw. traditionally, manufacturers use lead screw to drive the lens, the interval between lead screw and nut will increase after used, as a result, it will decrease the accuracy of plates making.
Moreover, lead screw need to be lubricated frequently to keep it smooth.
3.Non-linear Calibration system
Nonlinear graphical calibration system can perfectly reproduce rectangle, eliminating dimensional deviation caused by different plate thickness.
4.Use high power laser diodes
High-power diodes. Unlike most manufacturers use 1w diodes for CTP machines and 70mj (200mW) diodes for CTCP machines, we use 2W diodes for CTP machines and 120mj (300mW) for CTCP machines. Based on usual use, higher power diodes can expect a longer life and not so easy to get aged.
5.Built-in bearing in the drum
We used built-in bearing to support our drum, which brings higher stability and more accuracy when the drum rotates in a high speed, without a big deviation.
6.Top-class components and parts
We use top-class accessories in all our equipment, which brings our products more stable performance and longer life. -Fuji motor from Japan; -Lasermech thermal diodes from USA; -Nichia UV diodes from Japan; -Maglev system and bearings from Germany; -Sensors from Spain.
7.workflow and RIP software
we install the most popular ctp work flow &RIP software for our clients, Prinergy & Harlequin.
8.Remote diagnosis system.
( Remote diagnosis) Through “ Teamviewer”, our technicians can share data with customers‘ computer in real-time, thus to diagnose their CTP equipment.
