CTP Printing Plates , Metal Printing Plates 0 . 27 / 0 . 3MM Gauge

Basic Information
Place of Origin: China
Brand Name: Yinber
Certification: ISO9001~2000
Model Number: FP-200
Minimum Order Quantity: 3,500m²
Price: $1.5-2.8 per m²

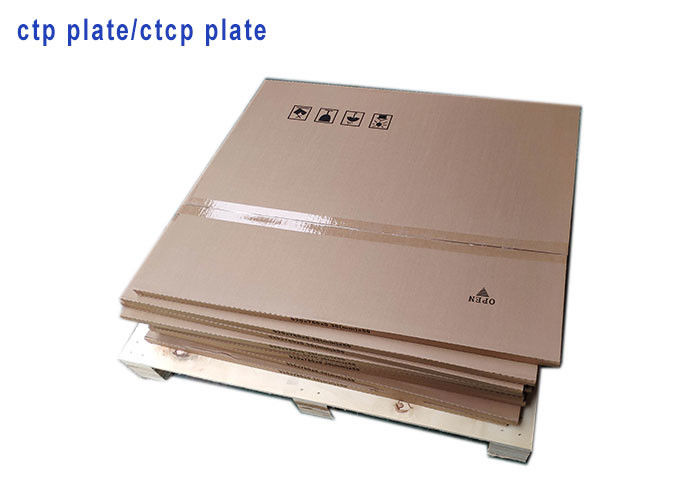

Packaging Details: Export carton with pallets for sea shipping well support the forklift, about 30,000m²/20 GP.
Delivery Time: 20-30 days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100,000m² per month
Material: Aluminum Resolution: 200LPI
Dot Reproduction: 1~99% Run Length: Up To 100,000 Impressions
Laser Power: 50-70mj/cm² Gauge: 0.15mm, 0.27mm
High Light:

violet printing plates

,

digital thermal plate

Type: CTCP Plate

Origin: China (Mainland)

Model NO.: FP-200

Color: Blue

Developing Time: 25+/-5sec

HS Code: 3701302400

Gauge: 0.15~0.40mm

Trademark: Yintech

Max Width: 1360

Material: Aluminum

Specification: 0.15mm 100pcs/box; 0.25mm 50pcs/box; 0.30mm 50pcs

Style: Positive

Transport Package: Export Standard Seaworthy Package

Usage: Offset Printing, Digital Printing

Shelf Time: 18 Monthes

Exposure Energy: 50~70mj/Cm2

Developing Temperature: 23+/-2 Degree

Spectral Sensitivity: 405nm

Resolution: 1~99% at 200lpi



FUCAI CTP Plate(Thermal VS UV PS Plate)
CTP Printing Plates , Metal Printing Plates 0 . 27 / 0 . 3MM Gauge 0
Technical specification
Products Type (FP-100)
Positive Thermal PS Plates
(FP-200)
UV PS Plates
Durable Rate 50,000~100,000 prints;
>=100,000 after baking
>=100,000 prints
Thickness 0.27mm, 0.15mm 0.27mm, 0.15mm
Sensitive wavelength 830nm 405nm
Laser power 110~150mj/cm 50~70mj/cm
Resolution 1%~99%@200lpi 1%~99%@200lpi
Baking condition 230˚C-250˚C, 5~8 minutes
(by using professional plate baking glue)
230˚C-250˚C, 5~8 minutes
(by using professional plate baking glue)
Safe lighting 2 hours under fluorescent lamp,
12 hours under yellow light
2 hours under fluorescent lamp,
12 hours under yellow light
Storage condition Store in dry and cool place, store in 5˚C~30˚C,
Humility <55%
Store in dry and cool place, store in 5˚C~30˚C,
Humility <55%
Shelf life 12 months 12 months
Developing time 20sec~30sec 20sec~30sec
Productivity 1800m2~2500m2 1800m2~2500m2
