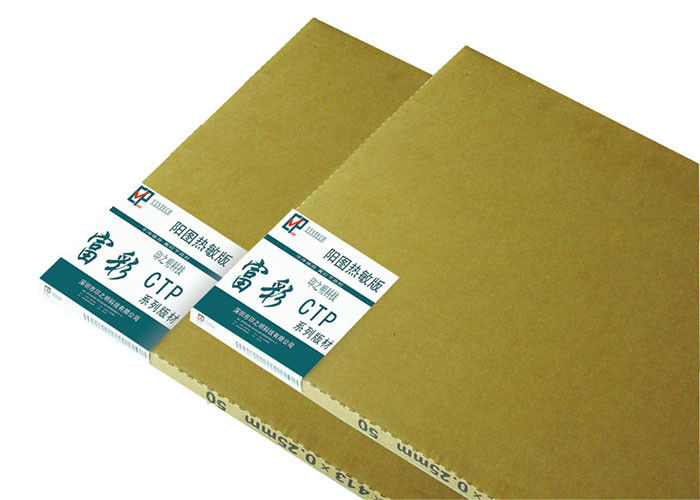

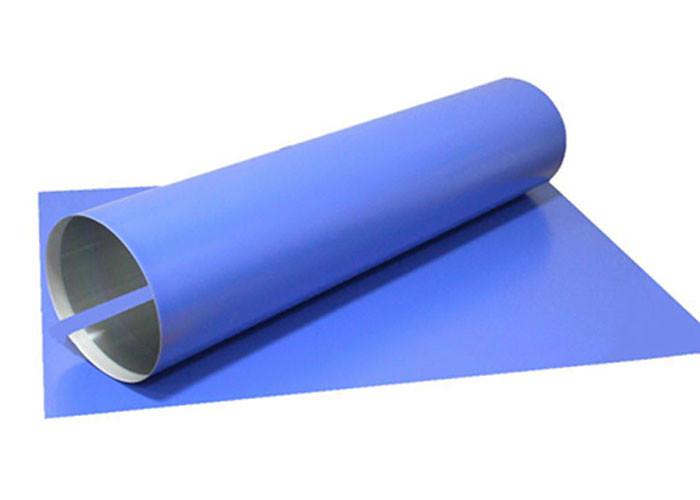

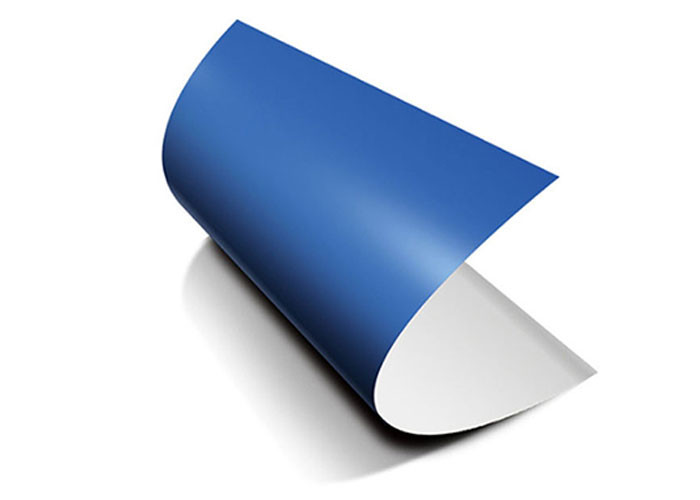

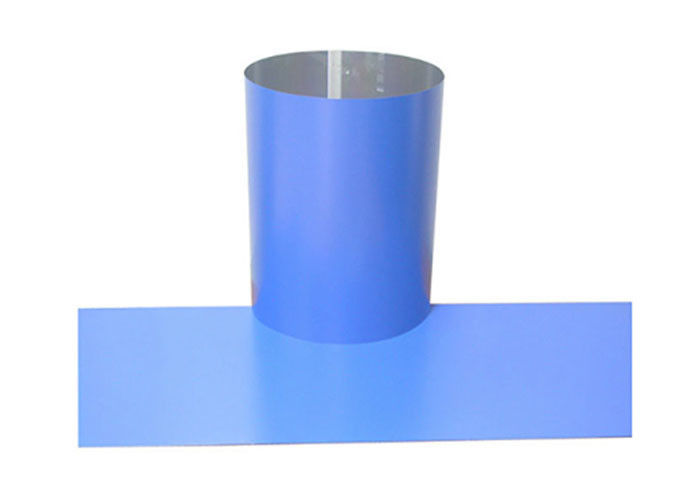

Commercial CTP Printing Plates 5 - 8 Minutes Baking 0 . 27 / 0 . 15MM Thickness

Basic Information
Place of Origin: China
Brand Name: Yinber
Certification: ISO9001~2000
Model Number: FP-100
Minimum Order Quantity: 3,500m²
Price: $1.5-2.8 per m²
Packaging Details: Export carton with pallets for sea shipping well support the forklift, about 30,000m²/20 GP.
Delivery Time: 20-30 days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100,000m² per months
Baking Condition: 5 - 8 Minutes Material: Aluminum
Thickness: 0 . 27 / 0 . 15MM Laser Source: 830nm
Resolution: 200LPI Productivity: 100,000 Impressions
Highlight:

polyester printing plates

,

flexographic printing plates

,

830nm ctp printing plates

Model NO.: FP-100

Usage: Offset Printing, Digital Printing

Style: Positive

Developing Time: 25+/-5sec

Max Width: 1360

Resolution: 1~99% at 200lpi

Gauge: 0.15~0.40mm

Transport Package: Export Standard Seaworthy Package

Origin: China (Mainland)

Material: Aluminum

Type: CTP Plate

Developing Temperature: 23+/-2 Degree

Color: Blue

Exposure Energy: 50~70mj/Cm2

Shelf Time: 18 Monthes

Spectral Sensitivity: 830nm

Trademark: Yintech

Specification: 0.15mm 100pcs/box; 0.25mm 50pcs/box; 0.30mm 50pcs

HS Code: 3701302400



FUCAI CTP Plate(Thermal VS UV PS Plate)
Commercial CTP Printing Plates 5 - 8 Minutes Baking 0 . 27 / 0 . 15MM Thickness 0
Technical specification
Products Type (FP-100)
Positive Thermal PS Plates
(FP-200)
UV PS Plates
Durable Rate 50,000~100,000 prints;
>=100,000 after baking
>=100,000 prints
Thickness 0.27mm, 0.15mm 0.27mm, 0.15mm
Sensitive wavelength 830nm 405nm
Laser power 110~150mj/cm 50~70mj/cm
Resolution 1%~99%@200lpi 1%~99%@200lpi
Baking condition 230˚C-250˚C, 5~8 minutes
(by using professional plate baking glue)
230˚C-250˚C, 5~8 minutes
(by using professional plate baking glue)
Safe lighting 2 hours under fluorescent lamp,
12 hours under yellow light
2 hours under fluorescent lamp,
12 hours under yellow light
Storage condition Store in dry and cool place, store in 5˚C~30˚C,
Humility <55%
Store in dry and cool place, store in 5˚C~30˚C,
Humility <55%
Shelf life 12 months 12 months
Developing time 20sec~30sec 20sec~30sec
Productivity 1800m2~2500m2 1800m2~2500m2



Thermal CTP(Semi-Auto)

Commercial CTP Printing Plates 5 - 8 Minutes Baking 0 . 27 / 0 . 15MM Thickness 1

Technical specification
Model Thermal CTP
Yinber 8300A Yinber 8500A1 Yinber 8600A Yinber 4300A Yinber 4500A
No. of Lasers 32 48 64 32 48
Productivity
(1130x800mm)
(plates/h)
17 22 26 22 29
Max./Min. Format Max.: 1160mmx940mm
Min.: 350mmx400mm
Max.: 800mmx660mm
Min.: 350mmx400mm
Laser Source 830nm
Resolution 2400 dpi (Resolution can be customized, up to 8000dpi maximum)
Loading System Semi-Auto
Plates Requirement 0.15-0.4mm
Thermal plates, no brand requirement
CTP Interface 1-bit Tiff interface and direct workflow driver,support CIP3/CIP4
Power AC220-230V,50-60Hz 5.5KW
Environment Temperature: 20-25ºC Humidity: 40%-80%
Size & Weight Size: 2020mmx 1000mmx 930mm
Weight: 1500kg
Size:1900mmx 1200mmx 1000mm
Weight: 1000kg
Workflow software HQ&PR

UV CTP(Semi-Auto)
Commercial CTP Printing Plates 5 - 8 Minutes Baking 0 . 27 / 0 . 15MM Thickness 2
Technical specification
Model UV (thermal) CTCP
Yinber 9300A Yinber 9500A Yinber 9600A Yinber 5300A Yinber 5500A
No. of Lasers 32 48 64 32 48
Productivity
(1130x800mm)
(plates/h)
17 22 26 22 28
Max./Min. Format Max.: 1160mmx940mm
Min.: 350mmx400mm
Max.: 800mmx660mm
Min.: 350mmx400mm
Laser Source 405nm
Resolution 2400 dpi (Resolution can be customized, up to 8000dpi maximum)
Loading System Semi-Auto
Plates Requirement 0.15-0.4mm
UV plates, no brand requirement
CTP Interface 1-bit Tiff interface and direct workflow driver,support CIP3/CIP4
Power AC220-230V,50-60Hz 5.5KW
Environment Temperature: 20-25ºC Humidity: 40%-80%
Size & Weight Size: 2020mmx 1000mmx 930mm
Weight: 1500kg
Size:1900mmx 1200mmx 1000mm
Weight: 1000kg
Workflow software HQ&PR

Automatic CTP(Thermal VS UV)
Commercial CTP Printing Plates 5 - 8 Minutes Baking 0 . 27 / 0 . 15MM Thickness 3

Technical specification
Model Thermal UV
Yinber 8300B Yinber 8500B Yinber 8600B Yinber 9300B Yinber 9500B Yinber 9600B
No. of Lasers 32 48 64 32 48 64
Productivity
(1130x800mm)
(plates/hour)
17 24 29 17 24 29
Max./Min. Format Max.: 1160mmx940mm Min.: 350mmx400mm
Laser Source 830nm 405nm
Resolution 2400 dpi (Resolution can be customized, up to 8000dpi maximum)
Loading System Automatic,Semi-Auto ( Auto-loader available)
Plates Requirement 0.15-0.4mm
Thermal plates, no brandre quirement
0.15-0.4mm
UV plates, no brand requirement
CTP Interface 1-bit Tiff interface and direct workflow driver,support CIP3/CIP4
Power AC220V,50-60Hz 8KW
Environment Temperature: 20-25ºC Humidity: 40%-80%
Size & Weight Size: 2200mmx1350mmx1350mm Weight: 1500kg
Workflow software HQ&PR

Large Format CTP(Thermal VS UV)
Commercial CTP Printing Plates 5 - 8 Minutes Baking 0 . 27 / 0 . 15MM Thickness 1
Technical specification
Model Thermal UV
Yinber 2200 Yinber 2300 Yinber 2200U Yinber 2300U
No. of Lasers 48 64 48 64
Productivity
(1130x800mm)
(plates/hour)
12 13 14 15 12 13 14 15
Max./Min. Format 1200x 1400


508x394
1400x 1700


508x394
1200x 1400


508x394
1400x 1700


508x394
1200x 1400


508x394
1400x 1700


508x394
1200x 1400


508x394
1400x 1700


508x394
Laser Source 830nm 405nm
Resolution 2400 dpi
Loading System Single plate, manual loading
Plates Requirement 0.15-0.4mm
Thermal Plates
0.15-0.4mm
UV Plates
CTP Interface 1-bit Tiff interface and direct workflow driver,support CIP3/CIP4
Power AC220V,50-60Hz 8KW
Environment Temperature: 20-25ºC Humidity: 40%-80%
Size & Weight Size: 2880mmx1310mmx1310mm Weight: 2800kg
Workflow software HQ&PR
