2400 DPI CTP Plate Making Machine Max Format 1160 * 940MM AC220-230V
Product Details
| Workflow Software: | Harlequin /prinergy | Loading System: | Semi-auto/automation |
|---|---|---|---|
| Driver Support: | 1-bit Tiff Interface And Direct Workflow Driver,support Cip3/cip4 | Resolution: | 2400 DPI |
| Power: | AC220-230V | ||
| Highlight |
ctp machine,computer to plate printer,ctp plate making machine 2400 DPI |
||
Product Description
|

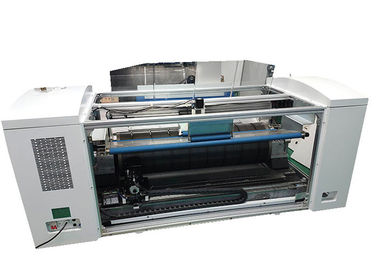

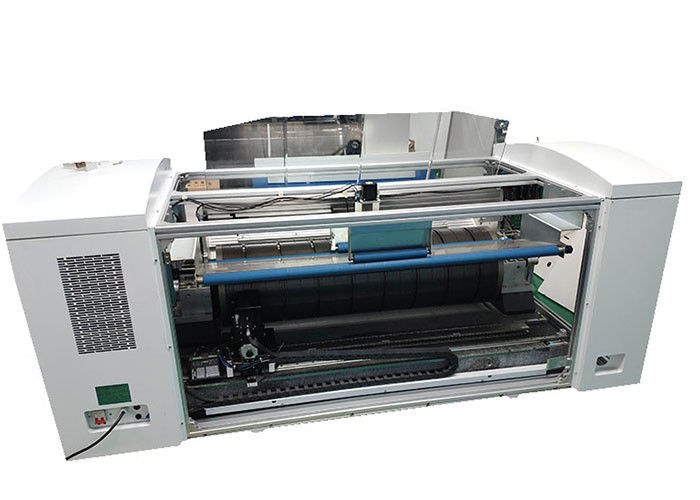

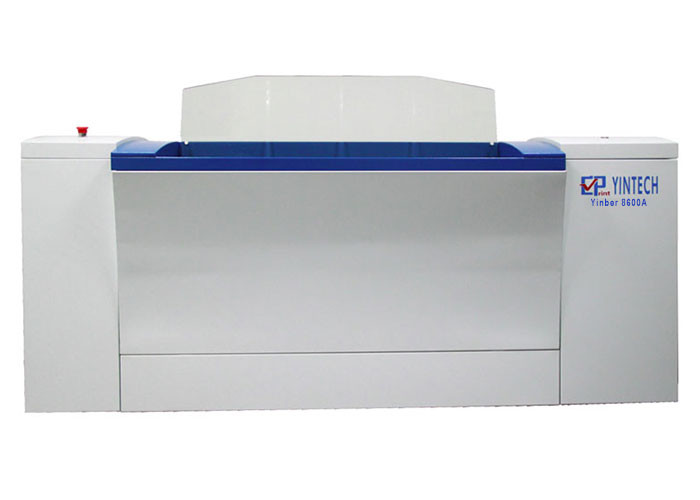

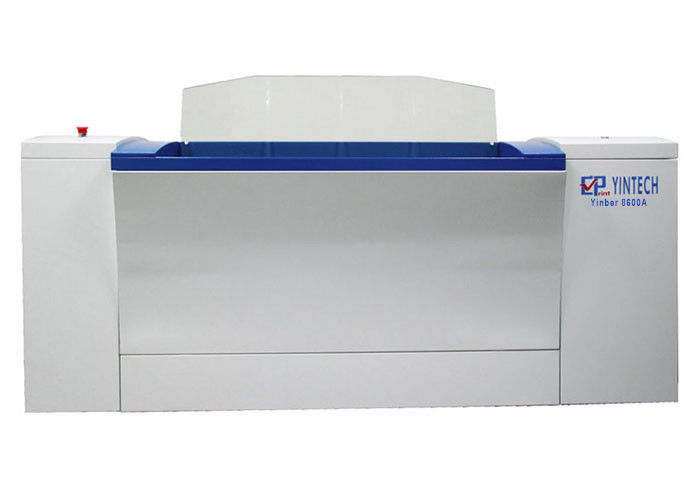

Thermal CTP(Semi-Auto) |
|||||
|
|
|||||
| Technical specification | |||||
| Model | Thermal CTP | ||||
| Yinber 8300A | Yinber 8500A1 | Yinber 8600A | Yinber 8900A | Yinber 8100A | |
| No. of Lasers | 32 | 48 | 64 | 96 | 128 |
| Productivity (1130x800mm) (plates/h) |
17 | 22 | 26 | 35 | 45 |
| Max./Min. Format | Max.: 1160mmx940mm Min.: 350mmx400mm |
||||
| Laser Source | 830nm | ||||
| Resolution | 2400 dpi (Resolution can be customized, up to 8000dpi maximum) | ||||
| Loading System | Semi-Automatic/Fully-automatic | ||||
| Plates Gauge | 0.15-0.4mm Thermal plates, suitable for different plates |
||||
| CTP Interface | 1-bit Tiff interface and direct workflow driver,support CIP3/CIP4 | ||||
| Power | AC220-230V,50-60Hz 5.5KW | ||||
| Environment | Temperature: 20-25ºC Humidity: 40%-80% | ||||
| Size & Weight | Size: 2020mmx 1000mmx 930mm Weight: 1500kg |
Size:1900mmx 1200mmx 1000mm Weight: 1000kg |
|||
| Workflow software | HQ&PR | ||||

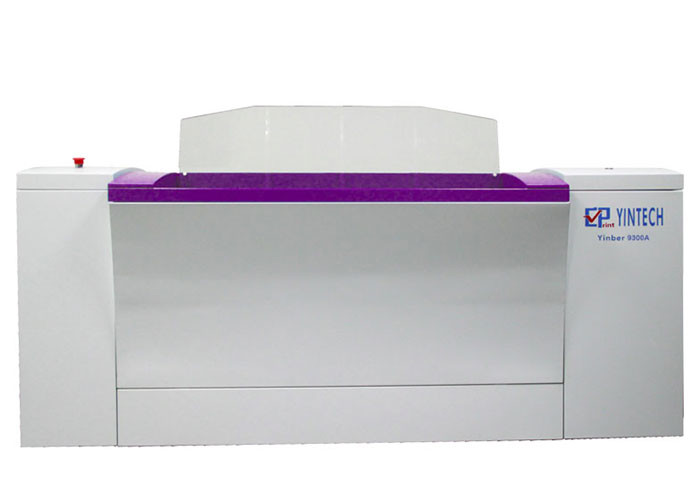

| UV CTP(Semi-Auto) | |||||
|
|||||
| Technical specification | |||||
| Model | UV (thermal) CTCP | ||||
| Yinber 9300A | Yinber 9500A | Yinber 9600A | Yinber 9900A | Yinber 9100A | |
| No. of Lasers | 32 | 48 | 64 | 96 | 128 |
| Productivity (1130x800mm) (plates/h) |
17 | 22 | 26 | 35 | 45 |
| Max./Min. Format | Max.: 1160mmx940mm Min.: 350mmx400mm |
||||
| Laser Source | 405nm | ||||
| Resolution | 2400 dpi (Resolution can be customized, up to 8000dpi maximum) | ||||
| Loading System | Semi-Automatic/fully-automatic loading | ||||
| Plates Requirement | 0.15-0.4mm UV plates, no brand requirement,suitable for various plates |
||||
| CTP Interface | 1-bit Tiff interface and direct workflow driver,support CIP3/CIP4 | ||||
| Power | AC220-230V,50-60Hz 5.5KW | ||||
| Environment | Temperature: 20-25ºC Humidity: 40%-80% | ||||
| Size & Weight | Size: 2020mmx 1000mmx 930mm Weight: 1500kg |
Size:1900mmx 1200mmx 1000mm Weight: 1000kg |
|||
| Workflow software | Harlequin&Prinergy | ||||

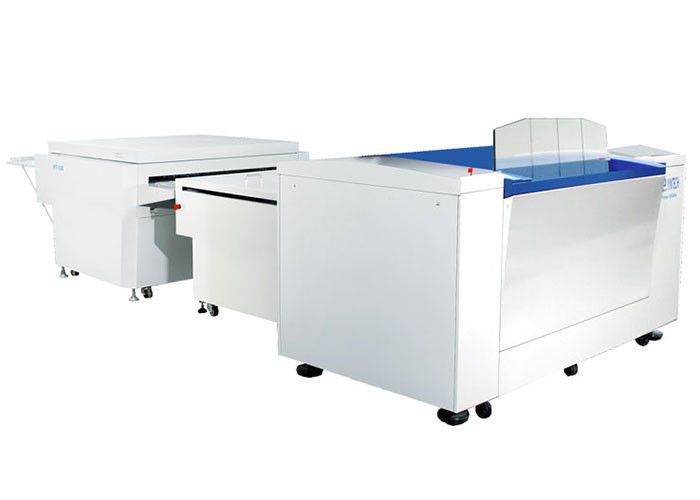

| Automatic CTP(Thermal VS UV) | ||||||
|
||||||
| Technical specification | ||||||
| Model | Thermal | UV | ||||
| Yinber 8300B | Yinber 8500B | Yinber 8600B | Yinber 9300B | Yinber 9500B | Yinber 9600B | |
| No. of Lasers | 32 | 48 | 64 | 32 | 48 | 64 |
| Productivity (1130x800mm) (plates/hour) |
17 | 24 | 29 | 17 | 24 | 29 |
| Max./Min. Format | Max.: 1160mmx940mm Min.: 350mmx400mm | |||||
| Laser Source | 830nm | 405nm | ||||
| Resolution | 2400 dpi (Resolution can be customized, up to 8000dpi maximum) | |||||
| Loading System | Automatic,Semi-Auto ( Auto-loader available) | |||||
| Plates Requirement | 0.15-0.4mm Thermal plates, no brandre quirement |
0.15-0.4mm UV plates, no brand requirement |
||||
| CTP Interface | 1-bit Tiff interface and direct workflow driver,support CIP3/CIP4 | |||||
| Power | AC220V,50-60Hz 8KW | |||||
| Environment | Temperature: 20-25ºC Humidity: 40%-80% | |||||
| Size & Weight | Size: 2200mmx1350mmx1350mm Weight: 1500kg | |||||
| Workflow software | HQ&PR | |||||

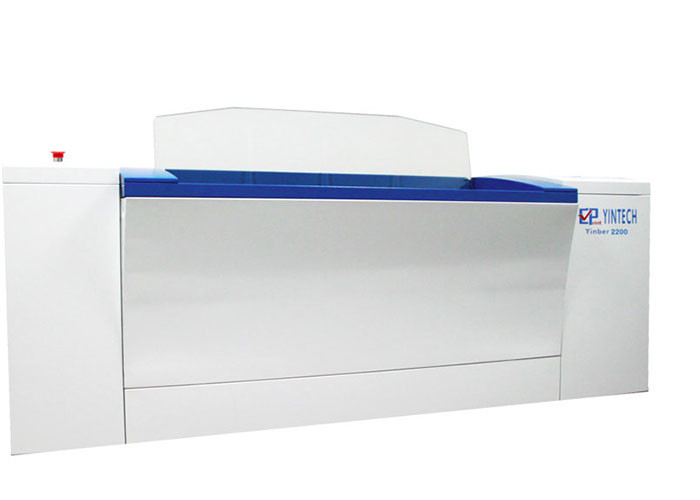

| Large Format CTP(Thermal VS UV) | ||||||||
|
||||||||
| Technical specification | ||||||||
| Model | Thermal | UV | ||||||
| Yinber 2200 | Yinber 2300 | Yinber 2200U | Yinber 2300U | |||||
| No. of Lasers | 48 | 64 | 48 | 64 | ||||
| Productivity (1130x800mm) (plates/hour) |
12 | 13 | 14 | 15 | 12 | 13 | 14 | 15 |
| Max./Min. Format | 1200x 1400 508x394 |
1400x 1700 508x394 |
1200x 1400 508x394 |
1400x 1700 508x394 |
1200x 1400 508x394 |
1400x 1700 508x394 |
1200x 1400 508x394 |
1400x 1700 508x394 |
| Laser Source | 830nm | 405nm | ||||||
| Resolution | 2400 dpi | |||||||
| Loading System | Single plate, manual loading | |||||||
| Plates Requirement | 0.15-0.4mm Thermal Plates |
0.15-0.4mm UV Plates |
||||||
| CTP Interface | 1-bit Tiff interface and direct workflow driver,support CIP3/CIP4 | |||||||
| Power | AC220V,50-60Hz 8KW | |||||||
| Environment | Temperature: 20-25ºC Humidity: 40%-80% | |||||||
| Size & Weight | Size: 2880mmx1310mmx1310mm Weight: 2800kg | |||||||
| Workflow software | HQ&PR | |||||||
| FUCAI CTP Plate(Thermal VS UV PS Plate) | ||
|
||
| Technical specification | ||
| Products Type | (FP-100) Positive Thermal PS Plates |
(FP-200) UV PS Plates |
| Runlength Rate | 50,000~100,000 prints; >=100,000 after baking |
>=100,000 prints |
| Thickness | 0.27mm, 0.15mm | 0.27mm, 0.15mm |
| Sensitive wavelength | 830nm | 405nm |
| Laser power | 110~150mj/cm | 50~70mj/cm |
| Resolution | 1%~99%@200lpi | 1%~99%@200lpi |
| Baking condition | 230˚C-250˚C, 5~8 minutes (by using professional plate baking glue) |
230˚C-250˚C, 5~8 minutes (by using professional plate baking glue) |
| Safe lighting | 2 hours under fluorescent lamp, 12 hours under yellow light |
2 hours under fluorescent lamp, 12 hours under yellow light |
| Storage condition | Store in dry and cool place, store in 5˚C~30˚C, Humility <55% |
Store in dry and cool place, store in 5˚C~30˚C, Humility <55% |
| Shelf life | 12 months | 12 months |
| Developing time | 20sec~30sec | 20sec~30sec |
| Productivity | 1800m2~2500m2 | 1800m2~2500m2 |
