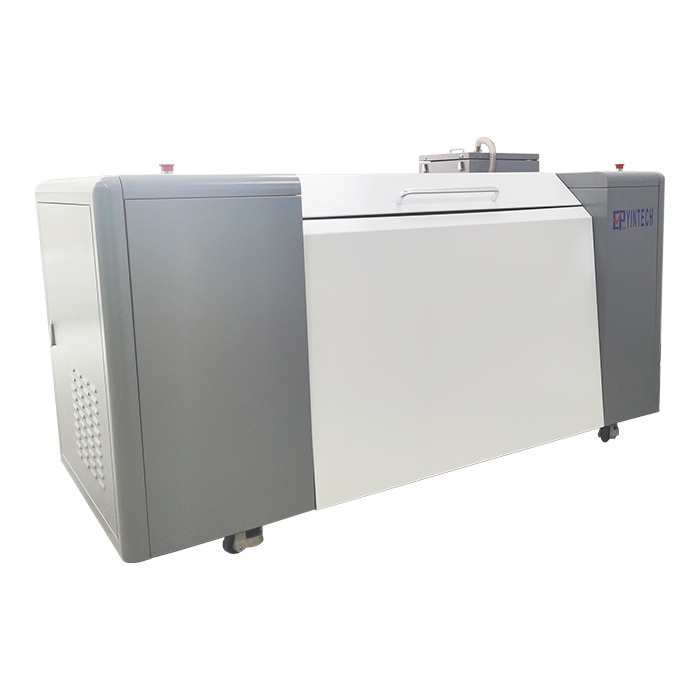

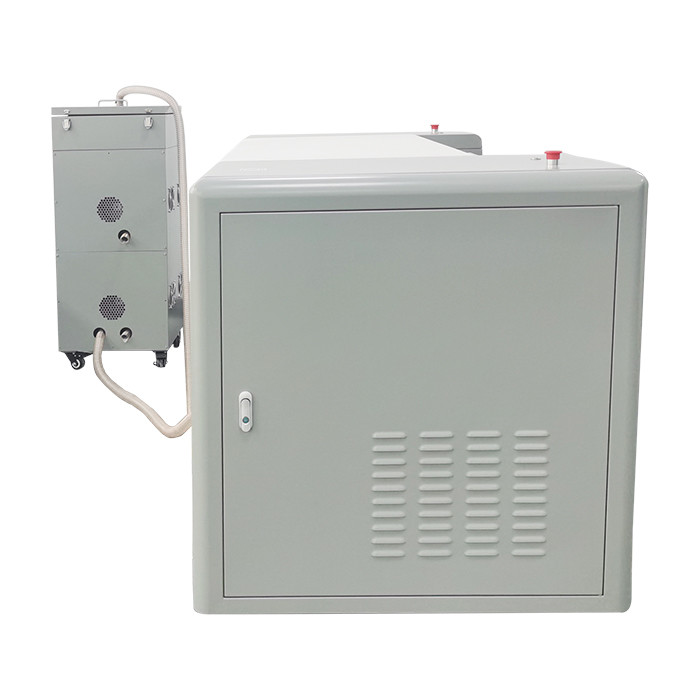

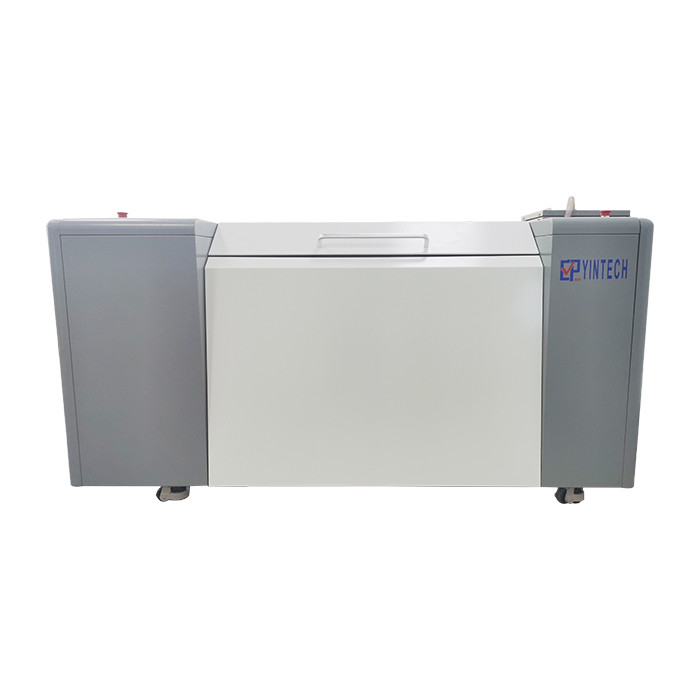

Photopolymer Flexo Resin Plate Making Machine Flexographic Printing HDI1100
Product Details
| Automatic Grade: | Manual Loading, Manual Unloading | No.of Lasers: | 32-channels |
|---|---|---|---|
| Plate Thickness: | 0.17mm~3.94mm | Plate Type: | Digital Flexographic Plate, Photopolymer Plate, Ablative Film |
| Throughput: | 2.5m²/hour | Application: | Plate Making |
| Output Resolution: | 4000dpi | Condition: | Brand New |
| Highlight |
Flexo Resin Plate Making Machine,Photopolymer Flexo Plate Making Machine,HDI 1100 Flexo Plate Making Machine |
||
Product Description
Flexo CTP Machine: HDI1100
|
Type |
Thermal |
|
Model |
HDI1100 |
|
No.of Lasers |
32 channels |
|
Throughput |
2.5m²/hour |
|
Max/Min Format |
Max: 800mm*635mm, Min: 100mm*130mm |
|
Laser Source |
830nm |
|
Resolution |
4000DPI |
|
Loading System |
Manual loading, manual unloding |
|
Plate Requirement |
0.17-3.94mm digital flexographic plate, photopolymer plate, ablative film |
|
Interface |
1-bit Fiff interface and direct workflow driver, support CIP3/CIP4 |
|
Power |
AC220V±5%, 50-60Hz, 7.5KW (including vaccum pump and dust removal pump) |
|
Work Environment |
Temperature: 18-25℃, Humility: 20%-70% (No condensation) |
|
Size & Weight |
2100mm*1150mm*960mm, 1250kgs |
Why choose us?
Core Technology Advantages:
1. The marble stone working platform ensures that the machine still keeps high precision and high stability under the condition of long working time.
2. The automatic balance of laser energy technology ensures the consistency of laser spot size, and ensures the uniformity, firmness and delicacy of output dots.
3. Laser diodes are arranged independently and each laser diodes can be upgraded, replaced and maintained one by one after.
4. Advanced auto-focus system is adopted, which is suitable for different thickness plates and different brand plates.
5. Abandoning the traditional lead-screw mode, we adopt the advanced maglev motion control system ensures the accuracy and service life of the machine.
6. Non-linear calibration technology ensures the accuracy of the plate making.
7. Adopted high power imported laser from Japan and America, so the laser life is longer than others. Unlike most manufacturers use 1W diodes for CTP machines and 70mj(200mW) diodes for CTCP machines, we use 2W diodes for CTP machines and 120mj(300mW) for CTCP machines.
8. We use built-in bearing to support our durm, which brings higher stability and more accuracy when the durm rotates in a high speed, without a big deviation.
9. We use top-class components and parts in all our equipments, which brings our products more stable performance and longer life. Fuji motor from Japan / Thermal diodes from USA / UV diodes from Japan / Naglev system and bearing from Germany / Sensors from Spain.
10. Workflow and RIP software - Prinergy & Harlequin.
11. Remote diagnosis system through Teamviewer, our technicians can share data with customers' computer in real-time, thus to diagnose their CTP equipment.
Shenzhen Yintech Co.,Ltd is one of top leading CTP plate making machine manufacturer, we produce and supply ctp plate making machine, ctcp plate making machine, and flexo plate making machine.
Welcome to wholesale products from us!
